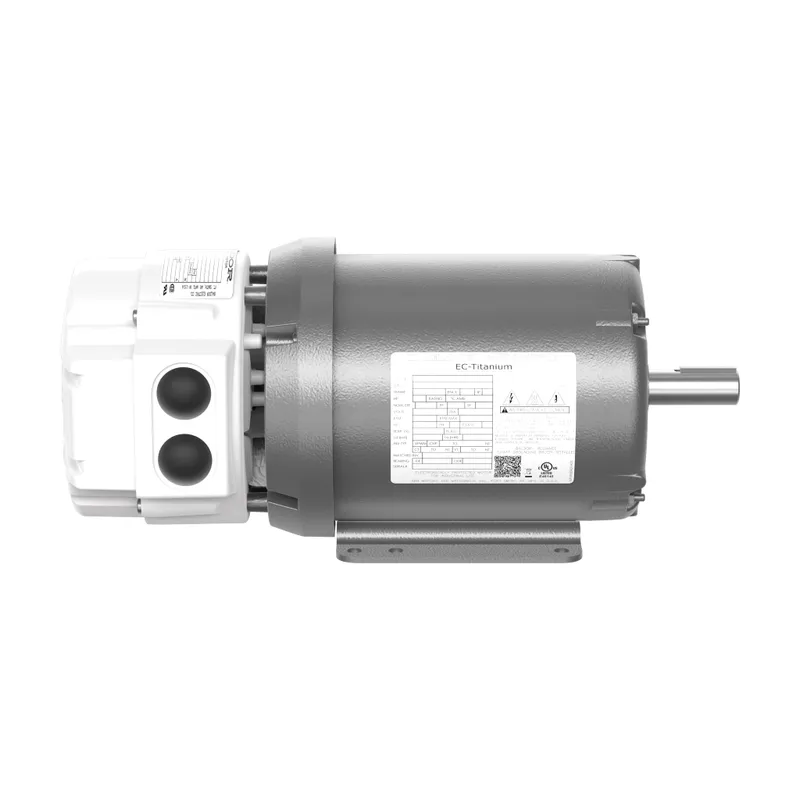

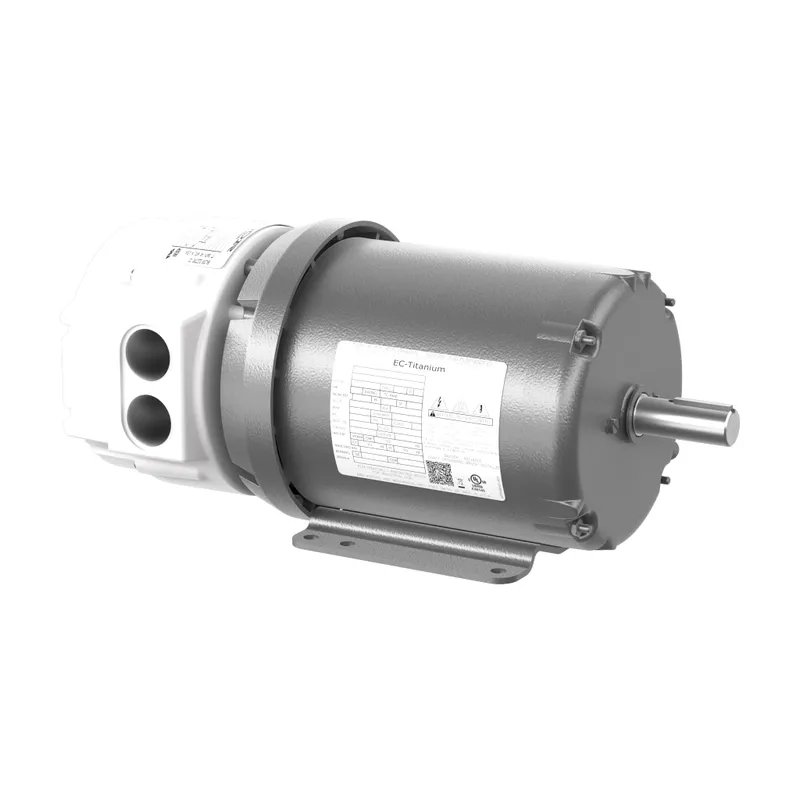

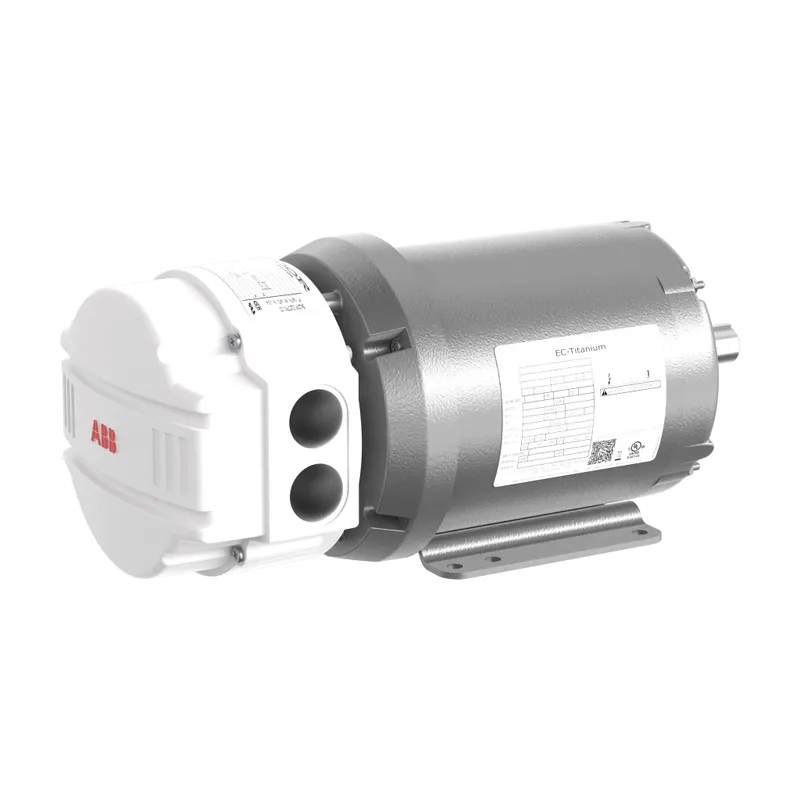

ABB ECS101A8H2DF4
2HP,1800RPM,3PH,60HZ,145T,3524B,TEF
- MPN
- ECS101A8H2DF4
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB ECS101A8H2DF4?
ECM IMD 2 Hp 230 V (ECS101A8H2DF4)
Specifications
Ordering
| Catalog Number | ECS101A8H2DF4 |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE5 |
| Insulation Class | F |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 93 % |
| Rated Efficiency | 90.70 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 2 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 145T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 15.125 in |
| Product Net Weight | 46 lb |
| Product Net Width | 16.125 in |
Certificates and Declarations
| Certification Agency | UL, WEEE |
ECS101A8H2DF4: frequently asked questions
When can ECS101A8H2DF4 be shipped?
ECS101A8H2DF4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECS101A8H2DF4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECS101A8H2DF4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECS101A8H2DF4, subject to availability and destination.
