Flameproof IEC Low voltage motors Parts
Compare Flameproof IEC Low voltage motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | ABB Type Designation | Invoice Description | Output Power | Product Net Weight | Gross Weight |
|---|---|---|---|---|---|

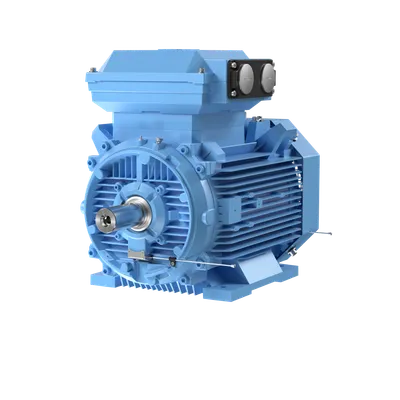

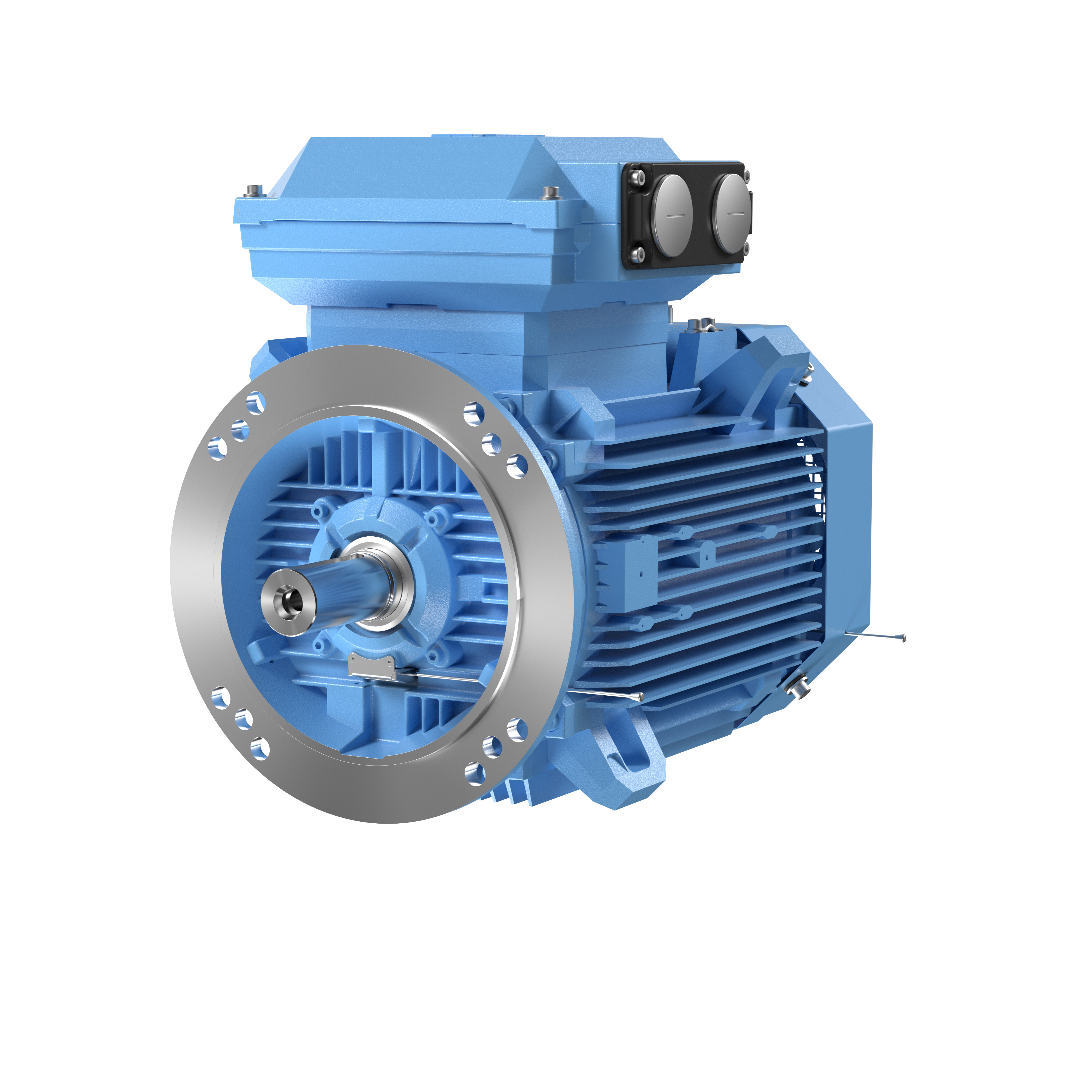

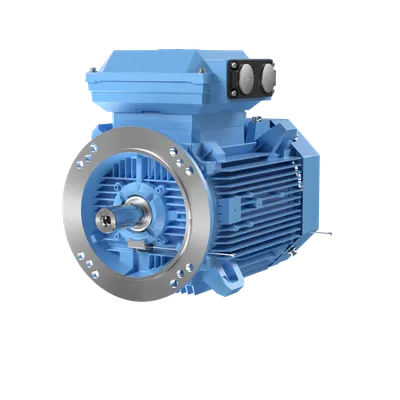

| 3GKP251210-BDL | M3KP 250SMA 2 | M3KP 250SMA 2 | 55 kW kW | 470 kg kg | 480 kg kg |
| 3GKP251210-AFL | M3KP 250SMA 2 | M3KP 250SMA 2 | 55 kW kW | 470 kg kg | 480 kg kg |
| 3GKP251210-BFL | M3KP 250SMA 2 | M3KP 250SMA 2 | 55 kW kW | 470 kg kg | 480 kg kg |
| 3GGP352210-ADL | M3GP 355SMA 4 | M3GP 355SMA 4 | 250 kW kW | 1610 kg kg | 1640 kg kg |

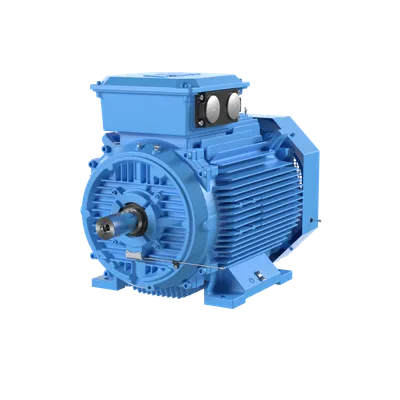

| 3GBP223220-BEK | M3BP 225SMB 6 | M3BP 225SMB 6 | 37 kW kW | 382 kg kg | 392 kg kg |
| 3GBP223220-AEK | M3BP 225SMB 6 | M3BP 225SMB 6 | 37 kW kW | 382 kg kg | 392 kg kg |

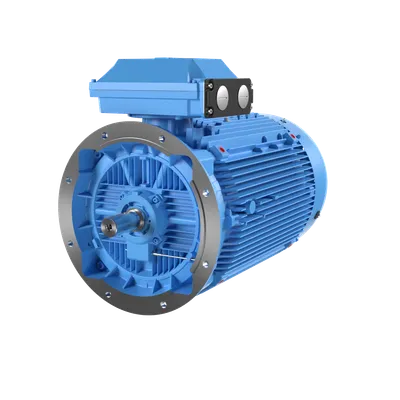

| 3GGP352220-ADL | M3GP 355SMB 4 | M3GP 355SMB 4 | 315 kW kW | 1780 kg kg | 1810 kg kg |
| 3GGP352220-BDL | M3GP 355SMB 4 | M3GP 355SMB 4 | 315 kW kW | 1780 kg kg | 1810 kg kg |
| 3GGP354210-ADL | M3GP 355SMA 8 | M3GP 355SMA 8 | 132 kW kW | 1520 kg kg | 1550 kg kg |
| 3GBP402520-ADM | M3BP 400LB 4 | — | 630 kW kW | 3300 kg kg | 3700 kg kg |
| 3GBP403530-ADM | M3BP 400LC 6 | — | 500 kW kW | 3300 kg kg | 3700 kg kg |

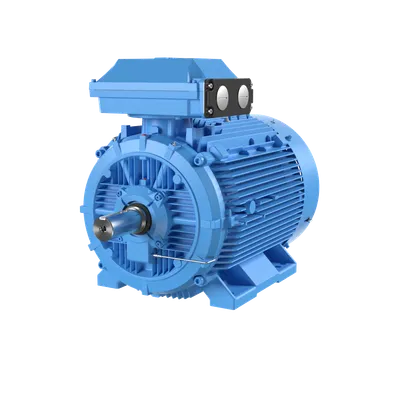

| 3GBP352420-AEM | M3BP 355MLB 4 | M3BP 355MLB 4 | 400 kW kW | 2140 kg kg | 2170 kg kg |

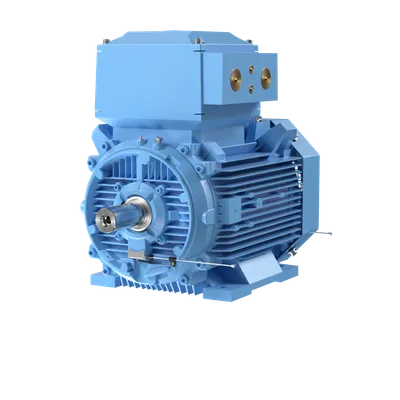

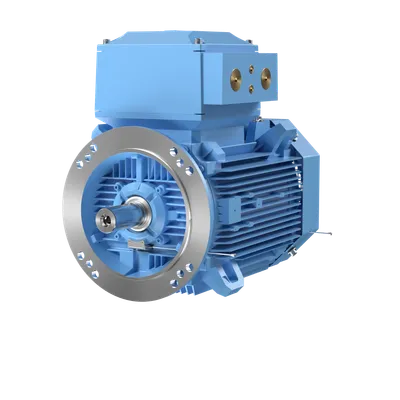

| 3GJP251210-AFL | M3JP 250SMA 2 | M3JP 250SMA 2 | 55 kW kW | 470 kg kg | 480 kg kg |
| 3GJP251210-BFL | M3JP 250SMA 2 | M3JP 250SMA 2 | 55 kW kW | 470 kg kg | 480 kg kg |

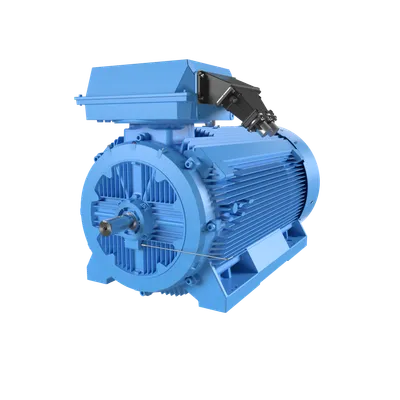

| 3GBP403540-AEM | M3BP 400LD 6 | M3BP 400LD 6 | 560 kW kW | 3400 kg kg | 3440 kg kg |
| 3GBP453520-BDM | M3BP 450LB 6 | M3BP 450LB 6 | 710 kW kW | 4500 kg kg | 4540 kg kg |

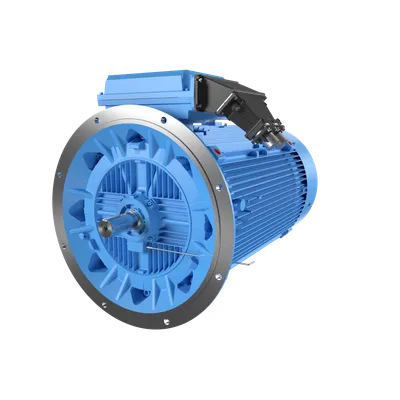

| 3GBP402530-BDM | M3BP 400LC 4 | M3BP 400LC 4 | 710 kW kW | 3310.5 kg kg | 3710.5 kg kg |

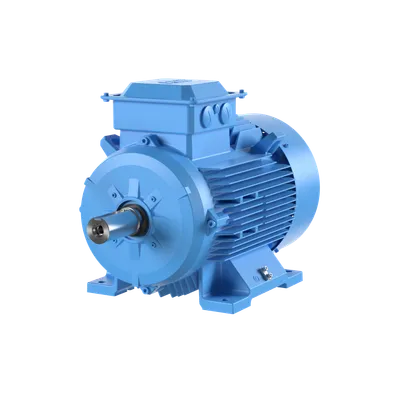

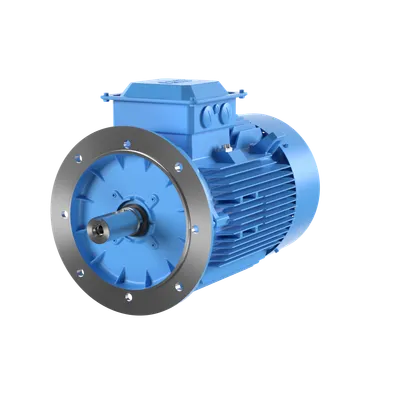

| 3GBA203410-BSC | M2BAX 200MLA 6 | M2BAX 200MLA 6 | 18.5 kW kW | 212 kg kg | 222 kg kg |
| 3GBA203410-ASC | M2BAX 200MLA 6 | M2BAX 200MLA 6 | 18.5 kW kW | 205 kg kg | 215 kg kg |

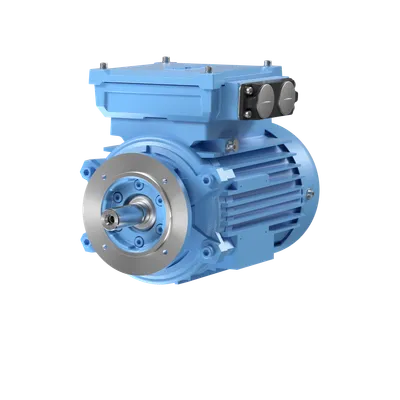

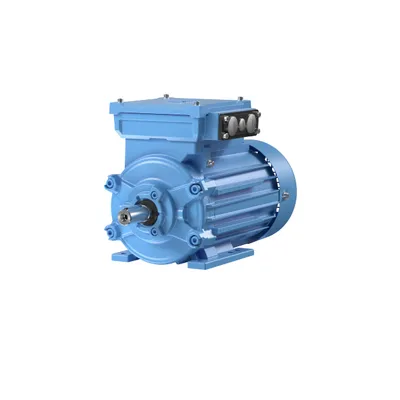

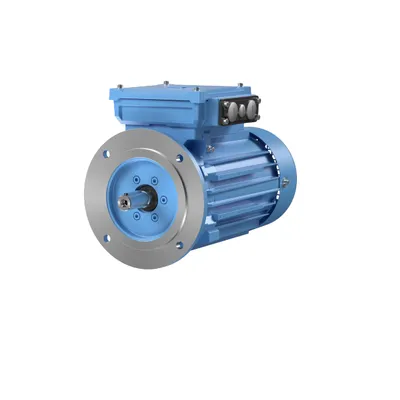

| 3GKP114330-ASK | M3KP 112MC 8 | M3KP 112MC 8 | 1.5 kW kW | 72 kg kg | 77 kg kg |
| 3GKP114330-CSK | M3KP 112MC 8 | M3KP 112MC 8 | 1.5 kW kW | 72 kg kg | 77 kg kg |
| 3GKP114330-BSK | M3KP 112MC 8 | M3KP 112MC 8 | 1.5 kW kW | 72 kg kg | 77 kg kg |
| 3GKP114330-AFK | M3KP 112MC 8 | M3KP 112MC 8 | 1.5 kW kW | 72 kg kg | 77 kg kg |
| 3GKP114330-CFK | M3KP 112MC 8 | M3KP 112MC 8 | 1.5 kW kW | 72 kg kg | 77 kg kg |
Common to all listed parts
| Product Name | 3-Phase squirrel cage motor |
| Frequency (f) | 50 Hz Hz |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
