Flameproof IEC Low voltage motors Parts
Compare Flameproof IEC Low voltage motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | ABB Type Designation | Invoice Description | Output Power | Product Net Weight | Gross Weight |
|---|---|---|---|---|---|
| 3GKP452510-BDK | M3KP 450LA 4 | M3KP 450LA 4 | 780 kW kW | 4146 kg kg | 4186 kg kg |
| 3GKP452510-ADK | M3KP 450LA 4 | M3KP 450LA 4 | 780 kW kW | 4050 kg kg | 4090 kg kg |
| 3GKP454520-BDK | M3KP 450LB 8 | M3KP 450LB 8 | 470 kW kW | 4096 kg kg | 4136 kg kg |

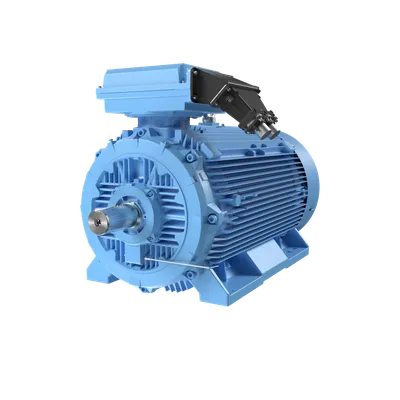

| 3GKP453510-ADK | M3KP 450LA 6 | M3KP 450LA 6 | 610 kW kW | 4150 kg kg | 4190 kg kg |

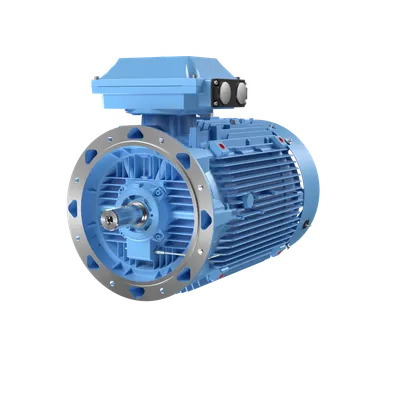

| 3GKP352810-BEK | M3KP 355LKA 4 | M3KP 355LKA 4 | 500 kW kW | 2544 kg kg | 2574 kg kg |

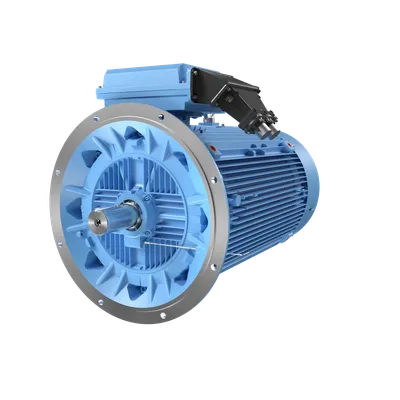

| 3GKP402820-BEK | M3KP 400LKB 4 | M3KP 400LKB 4 | 630 kW kW | 3451 kg kg | 3491 kg kg |

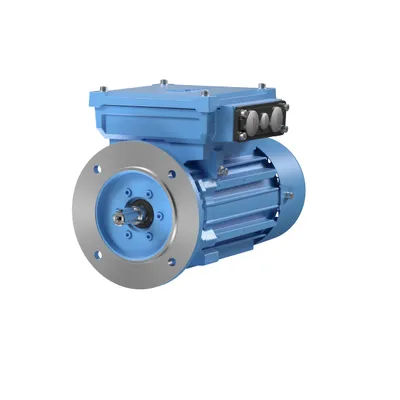

| 3GKP091530-AFK | M3KP 90LC 2 | M3KP 90LC 2 | 2.2 kW kW | 54 kg kg | 57 kg kg |

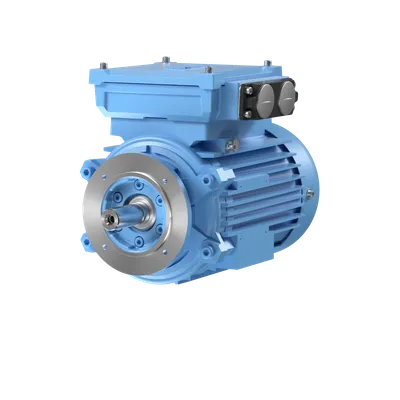

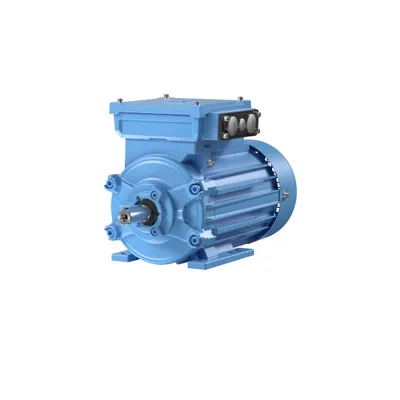

| 3GKP104810-CSK | M3KP 100LKA 8 | — | 0.75 kW kW | 60 kg kg | 65 kg kg |
| 3GKP104810-ASK | M3KP 100LKA 8 | — | 0.75 kW kW | 60 kg kg | 65 kg kg |
| 3GKP403810-AEK | M3KP 400LKA 6 | M3KP 400LKA 6 | 400 kW kW | 3020 kg kg | 3060 kg kg |
| 3GKP224210-BDK | M3KP 225SMA 8 | — | 18.5 kW kW | 422 kg kg | 432 kg kg |

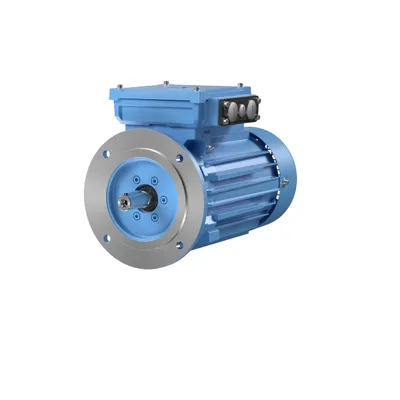

| 3GKP102810-AFK | M3KP 100LKA 4 | M3KP 100LKA 4 | 2.2 kW kW | 70 kg kg | 75 kg kg |
| 3GKP102810-BFK | M3KP 100LKA 4 | M3KP 100LKA 4 | 2.2 kW kW | 70 kg kg | 75 kg kg |
| 3GKP104810-BSK | M3KP 100LKA 8 | — | 0.75 kW kW | 60 kg kg | 65 kg kg |

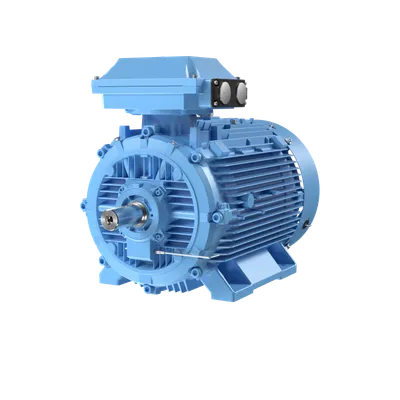

| 3GKP351410-ADK | M3KP 355MLA 2 | M3KP 355MLA 2 | 355 kW kW | 2028 kg kg | 2058 kg kg |
| 3GKP351410-BDK | M3KP 355MLA 2 | M3KP 355MLA 2 | 355 kW kW | 2042 kg kg | 2072 kg kg |
| 3GKP224210-ADK | M3KP 225SMA 8 | — | 18.5 kW kW | 422 kg kg | 432 kg kg |

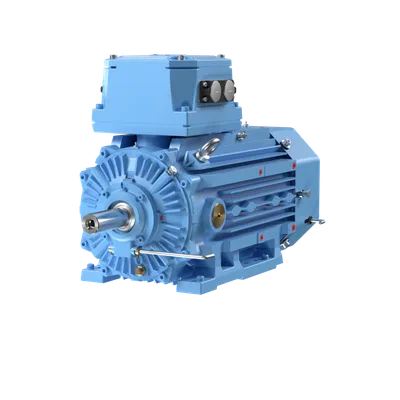

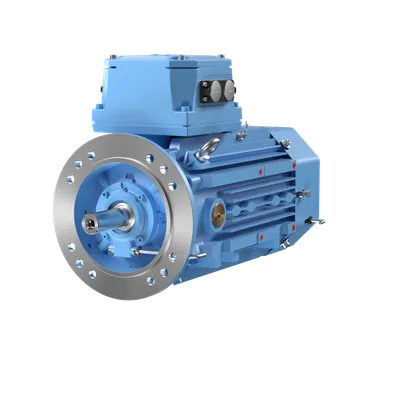

| 3GKP164420-ADK | M3KP 160MLB 8 | — | 5.5 kW kW | 213 kg kg | 223 kg kg |
| 3GKP164420-BDK | M3KP 160MLB 8 | — | 5.5 kW kW | 213 kg kg | 223 kg kg |
| 3GKP104820-CFK | M3KP 100LKB 8 | M3KP 100LKB 8 | 1.1 kW kW | 68 kg kg | 73 kg kg |
| 3GKP091530-BFK | M3KP 90LC 2 | M3KP 90LC 2 | 2.2 kW kW | 54 kg kg | 57 kg kg |

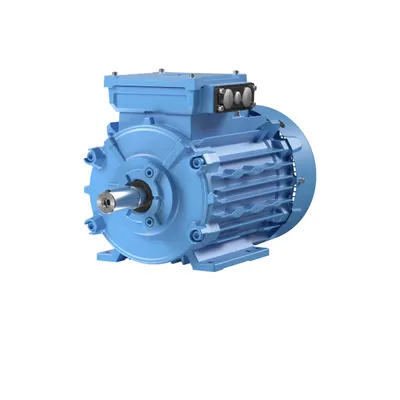

| 3GKP132260-AFK | M3KP 132SMF 4 | M3KP 132SMF 4 | 5.5 kW kW | 110 kg kg | 115 kg kg |
| 3GKP132260-BFK | M3KP 132SMF 4 | M3KP 132SMF 4 | 5.5 kW kW | 110 kg kg | 115 kg kg |
| 3GKP083310-BEK | M3KP 80MA 6 | M3KP 80MA 6 | 0.25 kW kW | 35 kg kg | 38 kg kg |
Common to all listed parts
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor |
| Country or Territory of Origin | Finland |
| Temperature Class Default | T4 |
| Frequency (f) | 50 Hz Hz |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
