LV HRC Fuse Links Parts

Siemens

3NA6124-6

LV HRC fuse element, NH1, In: 80 A, gG, Un AC: 690 V

Siemens

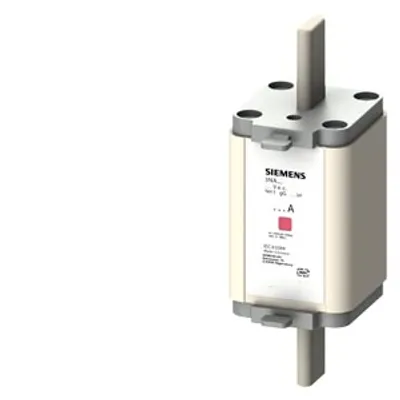

3NA6124-4

LV HRC fuse element, NH1, In: 80 A, gG, Un AC: 400 V

Siemens

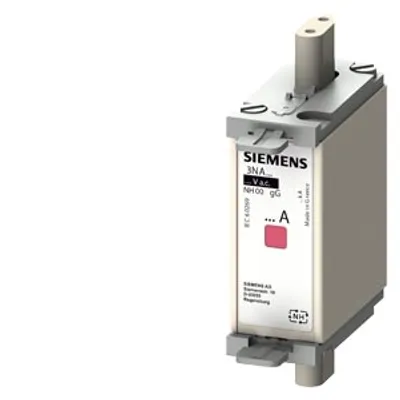

3NA6810-6

LV HRC fuse element, NH000, In: 25 A, gG, Un AC: 690 V

Siemens

3NA6810-4

LV HRC fuse element, NH000, In: 25 A, gG, Un AC: 400 V

Siemens

3NA6810

LV HRC fuse element, NH000, In: 25 A, gG, Un AC: 500 V

Siemens

3NA6807-6

LV HRC fuse element, NH000, In: 20 A, gG, Un AC: 690 V

Siemens

3NA6252

LV HRC fuse element, NH2, In: 315 A, gG, Un AC: 500 V

Siemens

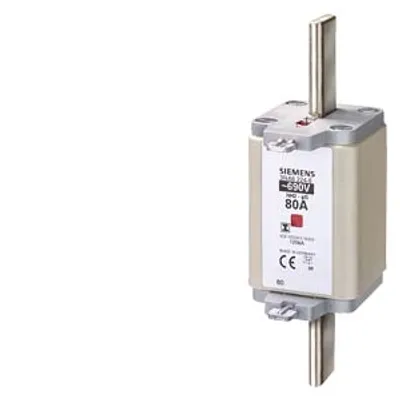

3NA6250-6

LV HRC fuse element, NH2, In: 300 A, gG, Un AC: 690 V

Siemens

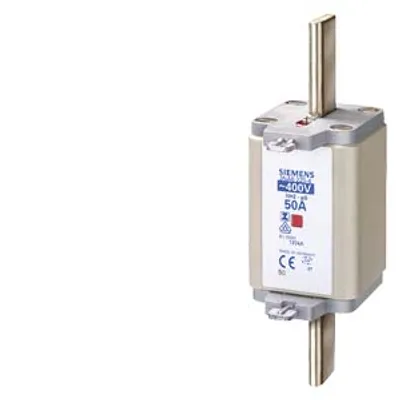

3NA6250-4

LV HRC fuse element, NH2, In: 300 A, gG, Un AC: 400 V

Siemens

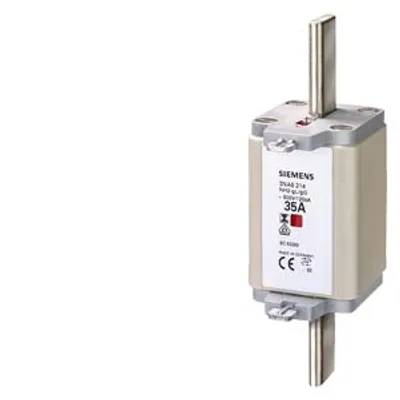

3NA6250

LV HRC fuse element, NH2, In: 300 A, gG, Un AC: 500 V

Siemens

3NA6244-6

LV HRC fuse element, NH2, In: 250 A, gG, Un AC: 690 V

Siemens

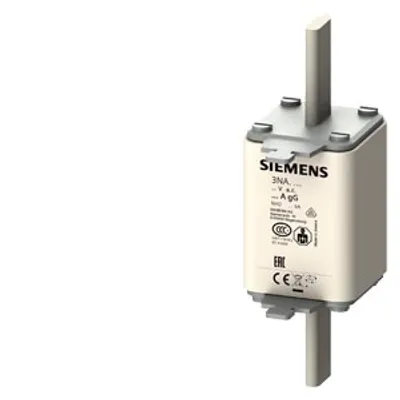

3NA3242

LV HRC fuse element, NH2, In: 224 A, gG, Un AC: 500 V

Siemens

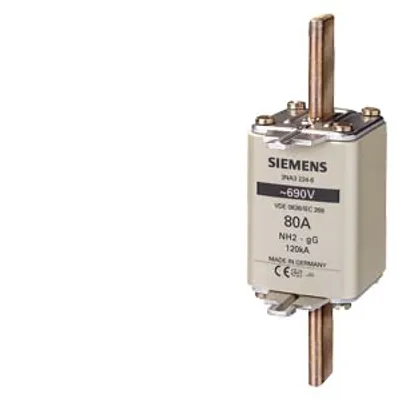

3NA3240-6

LV HRC fuse element, NH2, In: 200 A, gG, Un AC: 690 V

Siemens

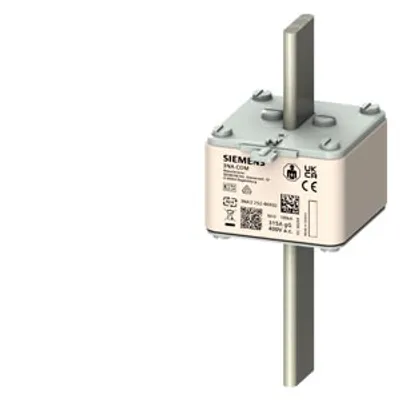

3NA3240-4KK04

LV HRC fuse link 3NA COM with metering function with…

Siemens

3NA3236

LV HRC fuse element, NH2, In: 160 A, gG, Un AC: 500 V

Siemens

3NA3230

LV HRC fuse element, NH2, In: 100 A, gG, Un AC: 500 V

Siemens

3NA3224-6

LV HRC fuse element, NH2, In: 80 A, gG, Un AC: 690 V

Siemens

3NA3224-4KK04

LV HRC fuse link 3NA COM with metering function with…

Siemens

3NA3224-4KK03

LV HRC fuse link 3NA COM with metering function with…

Siemens

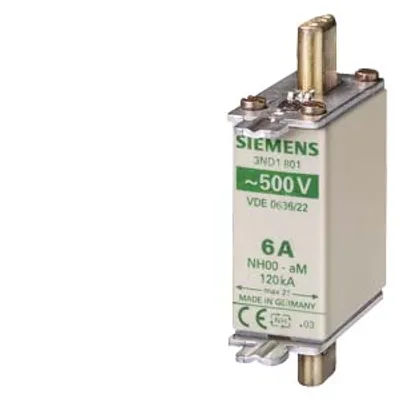

3ND1822

LV HRC fuse element, NH000, In: 63 A, aM, Un AC: 500 V

Siemens

3NA7812

LV HRC fuse element, NH000, In: 32 A, gG, Un AC: 500 V

Siemens

3NA7810-6

LV HRC fuse element, NH000, In: 25 A, gG, Un AC: 690 V

Siemens

3NA7804-6

LV HRC fuse element, NH000, In: 4 A, gG, Un AC: 690 V

Siemens

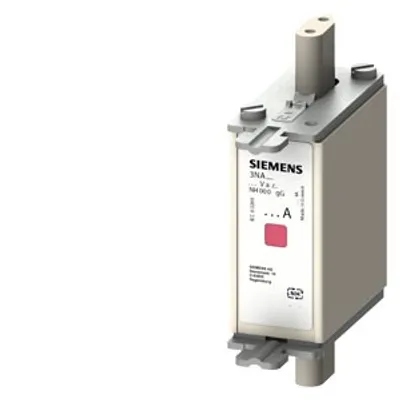

3NA7804

LV HRC fuse element, NH000, In: 4 A, gG, Un AC: 500 V

Compare LV HRC Fuse Links

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	operational current at AC rated value	power loss [W]	power loss [W] for rated value of the current at AC in hot operating state per pole	width of the enclosure	Net Weight
3NA6124-6	80 A	6.7 W	7 W	30 mm	288 g
3NA6124-4	80 A	7.38 W	7 W	30 mm	275 g
3NA6810-6	25 A	2.7 W	3 W	21 mm	130 g
3NA6810-4	25 A	2.49 W	2 W	21 mm	132 g
3NA6810	25 A	2.3 W	2 W	21 mm	132 g
3NA6807-6	20 A	2.22 W	2 W	21 mm	127 g
3NA6252	315 A	21.4 W	21 W	57.8 mm	658 g
3NA6250-6	300 A	25.6 W	26 W	57.8 mm	655 g
3NA6250-4	300 A	23 W	23 W	57.8 mm	659 g
3NA6250	300 A	19.4 W	19 W	57.8 mm	653 g
3NA6244-6	250 A	23 W	23 W	57.8 mm	647 g
3NA3242	224 A	15.4 W	15 W	47.2 mm	462 g
3NA3240-6	200 A	15.7 W	16 W	47.2 mm	466 g
3NA3240-4KK04	200 A	22.3 W	22 W	60 mm	632 g
3NA3236	160 A	13 W	13 W	47.2 mm	461 g
3NA3230	100 A	7.81 W	8 W	47.2 mm	462 g
3NA3224-6	80 A	6.6 W	7 W	47.2 mm	445 g
3NA3224-4KK04	80 A	9 W	9 W	60 mm	630 g
3NA3224-4KK03	80 A	9 W	9 W	60 mm	0.71 kg
3ND1822	63 A	3.3 W	3 W	21 mm	130 g
3NA7812	32 A	2.6 W	3 W	21 mm	129 g
3NA7810-6	25 A	2.7 W	3 W	21 mm	130 g
3NA7804-6	4 A	0.95 W	1 W	21 mm	129 g
3NA7804	4 A	0.9 W	1 W	21 mm	129 g

Common to all listed parts

product designation	LV HRC fuse link
design of the switching contact	Non-corroding, silver-plated
design of the fuse link	LV HRC fuse link
protection class IP	IP20, with connected conductors
mounting position	Any, preferably vertical
ambient temperature during operation — minimum	-5 °C
environmental category	-20 to +50 at 95% relative humidity
reference code according to IEC 81346-2	FC
