LV HRC Fuse Links Parts

Siemens

3NA3107

LV HRC fuse element, NH1, In: 20 A, gG, Un AC: 500 V

Siemens

3NA3014

LV HRC fuse element, NH0, In: 35 A, gG, Un AC: 500 V

Siemens

3NA3810

LV HRC fuse element, NH000, In: 25 A, gG, Un AC: 500 V

Siemens

3NX8201

Electronicmodule for Smart Fuse Sicherung Baugröße 2 mit…

Siemens

3ND1832

LV HRC fuse element, NH00, In: 125 A, aM, Un AC: 500 V

Siemens

3ND1830-8

LV HRC fuse element, NH000, In: 100 A, aM, Un AC: 500 V

Siemens

3ND1830

LV HRC fuse element, NH00, In: 100 A, aM, Un AC: 500 V

Siemens

3ND1824

LV HRC fuse element, NH000, In: 80 A, aM, Un AC: 500 V

Siemens

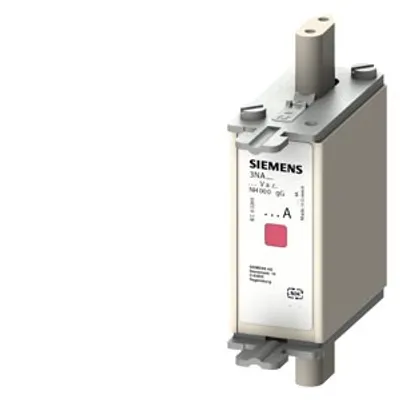

3NA7812-6

LV HRC fuse element, NH000, In: 32 A, gG, Un AC: 690 V

Siemens

3NA7810

LV HRC fuse element, NH000, In: 25 A, gG, Un AC: 500 V

Siemens

3NA7807-6

LV HRC fuse element, NH000, In: 20 A, gG, Un AC: 690 V

Siemens

3NA6802-6

LV HRC fuse element, NH000, In: 2 A, gG, Un AC: 690 V

Siemens

3NA6802

LV HRC fuse element, NH000, In: 2 A, gG, Un AC: 500 V

Siemens

3NA6801-6

LV HRC fuse element, NH000, In: 6 A, gG, Un AC: 690 V

Siemens

3NA6801

LV HRC fuse element, NH000, In: 6 A, gG, Un AC: 500 V

Siemens

3NA6260-4

LV HRC fuse element, NH2, In: 400 A, gG, Un AC: 400 V

Siemens

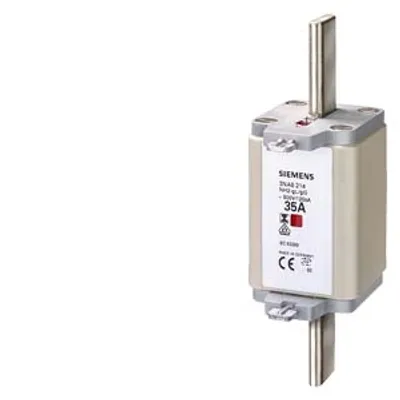

3NA6260

LV HRC fuse element, NH2, In: 400 A, gG, Un AC: 500 V

Siemens

3NA7132

LV HRC fuse element, NH1, In: 125 A, gG, Un AC: 500 V

Siemens

3NA7130-6

LV HRC fuse element, NH1, In: 100 A, gG, Un AC: 690 V

Siemens

3NA7130

LV HRC fuse element, NH1, In: 100 A, gG, Un AC: 500 V

Siemens

3NA7124-6

LV HRC fuse element, NH1, In: 80 A, gG, Un AC: 690 V

Siemens

3NA6240-4

LV HRC fuse element, NH2, In: 200 A, gG, Un AC: 400 V

Siemens

3NA6130

LV HRC fuse element, NH1, In: 100 A, gG, Un AC: 500 V

Siemens

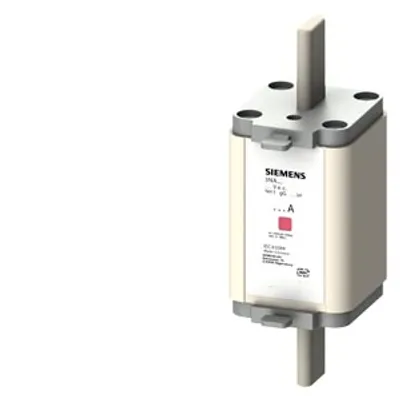

3NA6114

LV HRC fuse element, NH1, In: 35 A, gG, Un AC: 500 V

Compare LV HRC Fuse Links

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	size of fuse system according to EN 60269-1	operational current at AC rated value	power loss [W]	power loss [W] for rated value of the current at AC in hot operating state per pole	Net Weight
3NA3107	NH1	20 A	2.72 W	3 W	283 g
3NA3014	NH0	35 A	3 W	3 W	270 g
3NA3810	NH000	25 A	2.3 W	2 W	129 g
3NX8201	NH2	400 A	—	—	169 g
3ND1832	NH00	125 A	6.3 W	6 W	206 g
3ND1830-8	NH000	100 A	4.9 W	5 W	132 g
3ND1830	NH00	100 A	4.9 W	5 W	201 g
3ND1824	NH000	80 A	4.5 W	5 W	130 g
3NA7812-6	NH000	32 A	3.1 W	3 W	129 g
3NA7810	NH000	25 A	2.3 W	2 W	128 g
3NA7807-6	NH000	20 A	2.22 W	2 W	129 g
3NA6802-6	NH000	2 A	1.57 W	2 W	0.131 kg
3NA6802	NH000	2 A	1.3 W	1 W	130 g
3NA6801-6	NH000	6 A	1.36 W	1 W	131 g
3NA6801	NH000	6 A	1.3 W	1 W	131 g
3NA6260-4	NH2	400 A	29 W	29 W	655 g
3NA6260	NH2	400 A	29 W	29 W	661 g
3NA7132	NH1	125 A	10.7 W	11 W	282 g
3NA7130-6	NH1	100 A	8.48 W	8 W	280 g
3NA7130	NH1	100 A	8.45 W	8 W	282 g
3NA7124-6	NH1	80 A	6.7 W	7 W	280 g
3NA6240-4	NH2	200 A	17.62 W	18 W	458 g
3NA6130	NH1	100 A	8.45 W	8 W	290 g
3NA6114	NH1	35 A	3.2 W	3 W	289 g

Common to all listed parts

ambient temperature during operation — maximum

40 °C
