LV HRC Fuse Links Parts

Showing 121–139 of 139 partsPage 6 of 6
Siemens 3NA6110 – LV HRC fuse element, NH1, In: 25 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA6110 – LV HRC fuse element, NH1, In: 25 A, gG, Un AC: 500 V
MPN: 3NA6110 · Siemens
Price on request
Request a quote
Siemens 3NA6107 – LV HRC fuse element, NH1, In: 20 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA6107 – LV HRC fuse element, NH1, In: 20 A, gG, Un AC: 500 V
MPN: 3NA6107 · Siemens
Price on request
Request a quote
Siemens 3NA3824 – LV HRC fuse element, NH000, In: 80 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA3824 – LV HRC fuse element, NH000, In: 80 A, gG, Un AC: 500 V
MPN: 3NA3824 · Siemens
Price on request
Request a quote
Siemens 3NA3820-6 – LV HRC fuse element, NH00, In: 50 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA3820-6 – LV HRC fuse element, NH00, In: 50 A, gG, Un AC: 690 V
MPN: 3NA3820-6 · Siemens
Price on request
Request a quote
Siemens 3NA6117 – LV HRC fuse element, NH1, In: 40 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA6117 – LV HRC fuse element, NH1, In: 40 A, gG, Un AC: 500 V
MPN: 3NA6117 · Siemens
Price on request
Request a quote
Siemens 3NA6114-4 – LV HRC fuse element, NH1, In: 35 A, gG, Un AC: 400 VAvailable on requestSiemens 3NA6114-4 – LV HRC fuse element, NH1, In: 35 A, gG, Un AC: 400 V
MPN: 3NA6114-4 · Siemens
Price on request
Request a quote
Siemens 3NA3832 – LV HRC fuse element, NH00, In: 125 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA3832 – LV HRC fuse element, NH00, In: 125 A, gG, Un AC: 500 V
MPN: 3NA3832 · Siemens
Price on request
Request a quote

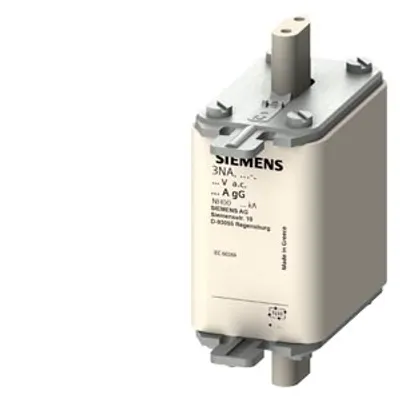

Siemens 3NA3830-7 – LV HRC fuse element, NH00, In: 100 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA3830-7 – LV HRC fuse element, NH00, In: 100 A, gG, Un AC: 500 V
MPN: 3NA3830-7 · Siemens
Price on request
Request a quote
Siemens 3NA3830-6 – LV HRC fuse element, NH00, In: 100 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA3830-6 – LV HRC fuse element, NH00, In: 100 A, gG, Un AC: 690 V
MPN: 3NA3830-6 · Siemens
Price on request
Request a quote
Siemens 3NA3820-7 – LV HRC fuse element, NH00, In: 50 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA3820-7 – LV HRC fuse element, NH00, In: 50 A, gG, Un AC: 500 V
MPN: 3NA3820-7 · Siemens
Price on request
Request a quote

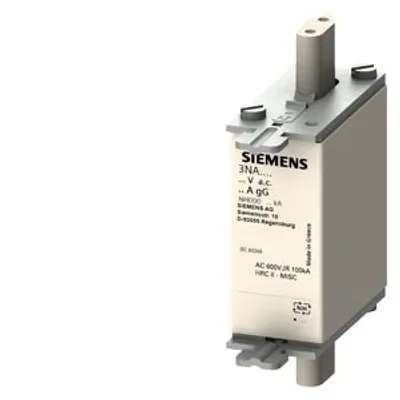

Siemens 3NA3820-6KJ – LV HRC fuse element, NH000, In: 50 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA3820-6KJ – LV HRC fuse element, NH000, In: 50 A, gG, Un AC: 690 V
MPN: 3NA3820-6KJ · Siemens
Price on request
Request a quote
Siemens 3NA3817-6KJ – LV HRC fuse element, NH000, In: 40 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA3817-6KJ – LV HRC fuse element, NH000, In: 40 A, gG, Un AC: 690 V
MPN: 3NA3817-6KJ · Siemens
Price on request
Request a quote

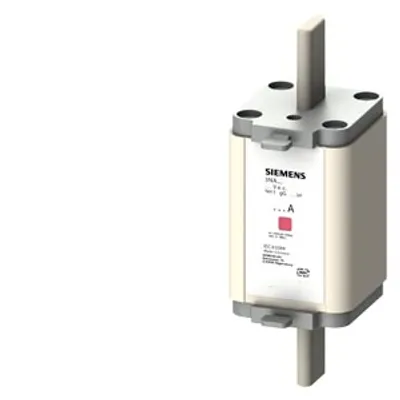

Siemens 3NA6120-6 – LV HRC fuse element, NH1, In: 50 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA6120-6 – LV HRC fuse element, NH1, In: 50 A, gG, Un AC: 690 V
MPN: 3NA6120-6 · Siemens
Price on request
Request a quote
Siemens 3NA6120-4 – LV HRC fuse element, NH1, In: 50 A, gG, Un AC: 400 VAvailable on requestSiemens 3NA6120-4 – LV HRC fuse element, NH1, In: 50 A, gG, Un AC: 400 V
MPN: 3NA6120-4 · Siemens
Price on request
Request a quote
Siemens 3NA6120 – LV HRC fuse element, NH1, In: 50 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA6120 – LV HRC fuse element, NH1, In: 50 A, gG, Un AC: 500 V
MPN: 3NA6120 · Siemens
Price on request
Request a quote
Siemens 3NA6117-4 – LV HRC fuse element, NH1, In: 40 A, gG, Un AC: 400 VAvailable on requestSiemens 3NA6117-4 – LV HRC fuse element, NH1, In: 40 A, gG, Un AC: 400 V
MPN: 3NA6117-4 · Siemens
Price on request
Request a quote
Siemens 3NA3822-6 – LV HRC fuse element, NH00, In: 63 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA3822-6 – LV HRC fuse element, NH00, In: 63 A, gG, Un AC: 690 V
MPN: 3NA3822-6 · Siemens
Price on request
Request a quote
Siemens 3NA3817-6 – LV HRC fuse element, NH00, In: 40 A, gG, Un AC: 690 VAvailable on requestSiemens 3NA3817-6 – LV HRC fuse element, NH00, In: 40 A, gG, Un AC: 690 V
MPN: 3NA3817-6 · Siemens
Price on request
Request a quote
Siemens 3NA3817 – LV HRC fuse element, NH000, In: 40 A, gG, Un AC: 500 VAvailable on requestSiemens 3NA3817 – LV HRC fuse element, NH000, In: 40 A, gG, Un AC: 500 V
MPN: 3NA3817 · Siemens
Price on request
Request a quote

Compare LV HRC Fuse Links

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNsize of fuse system according to EN 60269-1operational current at AC rated valuepower loss [W]power loss [W] for rated value of the current at AC in hot operating state per poleNet Weight
3NA6110NH125 A2.8 W3 W282 g
3NA6107NH120 A2.72 W3 W287 g
3NA3824NH00080 A5.8 W6 W131 g
3NA3820-6NH0050 A4.74 W5 W199 g
3NA6117NH140 A4.65 W5 W0.284 kg
3NA6114-4NH135 A3.33 W3 W288 g
3NA3832NH00125 A8.9 W9 W202 g
3NA3830-7NH00100 A6.95 W7 W201 g
3NA3830-6NH00100 A9.28 W9 W200 g
3NA3820-7NH0050 A3.8 W4 W200 g
3NA3820-6KJNH00050 A4.74 W5 W0.128 kg
3NA3817-6KJNH00040 A3.6 W4 W131 g
3NA6120-6NH150 A7.47 W7 W285 g
3NA6120-4NH150 A5.02 W5 W285 g
3NA6120NH150 A4.62 W5 W0.282 kg
3NA6117-4NH140 A4.31 W4 W274 g
3NA3822-6NH0063 A5.42 W5 W201 g
3NA3817-6NH0040 A3.6 W4 W203 g
3NA3817NH00040 A3.1 W3 W129 g

Common to all listed parts

product designationLV HRC fuse link
design of the productWith blade contacts
design of the switching contactNon-corroding, silver-plated
design of the fuse linkLV HRC fuse link
operating class of the fuse linkgG
protection class IPIP20, with connected conductors
breaking capacity at AC according to IEC 60269 rated value120 kA
mounting positionAny, preferably vertical
