LV HRC Fuse Links Parts

Siemens

3NA3236-4KK04

LV HRC fuse link 3NA COM with metering function with…

Siemens

3NA3236-4KK03

LV HRC fuse link 3NA COM with metering function with…

Siemens

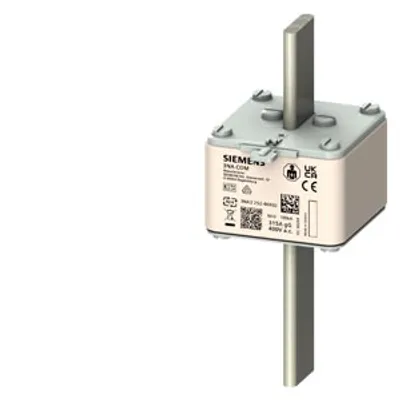

3NA3236-4KK02

LV HRC fuse link 3NA COM with metering function with…

Siemens

3NA3232-4KK02

LV HRC fuse link 3NA COM with metering function with…

Siemens

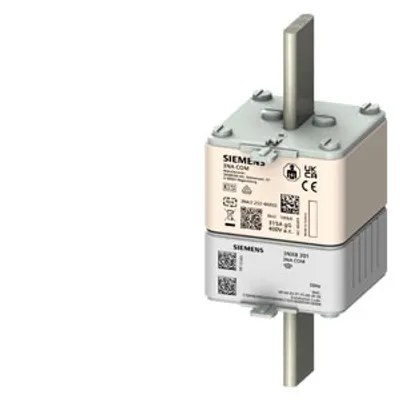

3NA3232-4KK01

LV HRC fuse link 3NA COM with metering function with…

Siemens

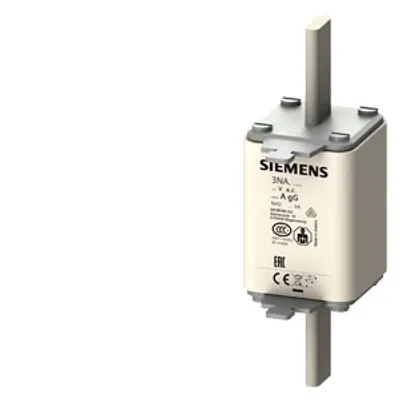

3NA3232

LV HRC fuse element, NH2, In: 125 A, gG, Un AC: 500 V

Siemens

3NA3230-6

LV HRC fuse element, NH2, In: 100 A, gG, Un AC: 690 V

Siemens

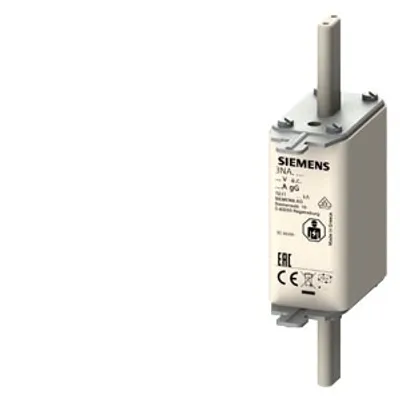

3NA3105

LV HRC fuse element, NH1, In: 16 A, gG, Un AC: 500 V

Siemens

3NA3036

LV HRC fuse element, NH0, In: 160 A, gG, Un AC: 500 V

Siemens

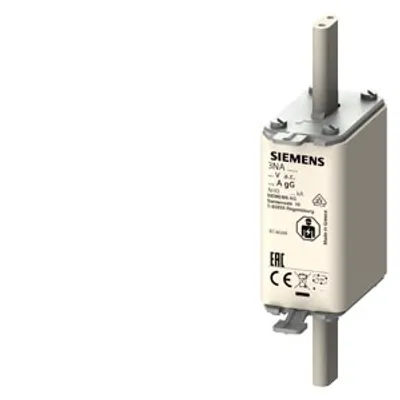

3NA3032

LV HRC fuse element, NH0, In: 125 A, gG, Un AC: 500 V

Siemens

3NA3005

LV HRC fuse element, NH0, In: 16 A, gG, Un AC: 500 V

Siemens

3NA3003

LV HRC fuse element, NH0, In: 10 A, gG, Un AC: 500 V

Siemens

3NA3001

LV HRC fuse element, NH0, In: 6 A, gG, Un AC: 500 V

Siemens

3NA3140-6

LV HRC fuse element, NH1, In: 200 A, gG, Un AC: 690 V

Siemens

3NA3124

LV HRC fuse element, NH1, In: 80 A, gG, Un AC: 500 V

Siemens

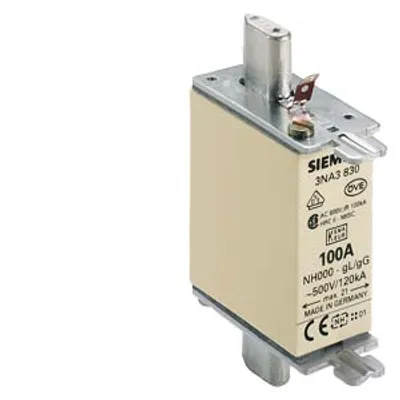

3NA3830

LV HRC fuse element, NH000, In: 100 A, gG, Un AC: 500 V

Siemens

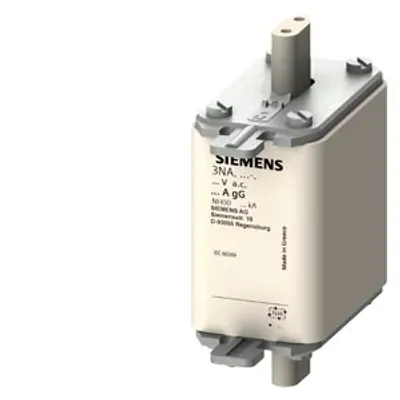

3NA3824-7

LV HRC fuse element, NH00, In: 80 A, gG, Un AC: 500 V

Siemens

3NA3824-6

LV HRC fuse element, NH00, In: 80 A, gG, Un AC: 690 V

Siemens

3NA3820

LV HRC fuse element, NH000, In: 50 A, gG, Un AC: 500 V

Siemens

3NA3814-7

LV HRC fuse element, NH00, In: 35 A, gG, Un AC: 500 V

Siemens

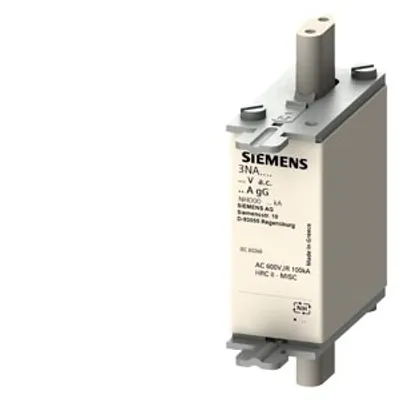

3NA3814-6

LV HRC fuse element, NH000, In: 35 A, gG, Un AC: 690 V

Siemens

3NA6136-4

LV HRC fuse element, NH1, In: 160 A, gG, Un AC: 400 V

Siemens

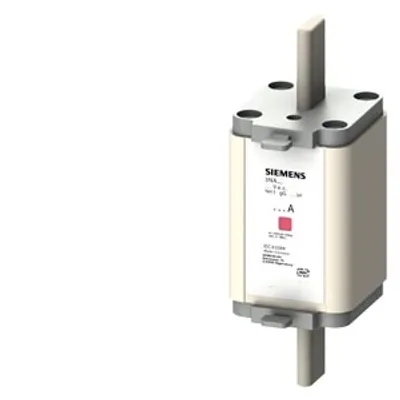

3NA6136

LV HRC fuse element, NH1, In: 160 A, gG, Un AC: 500 V

Siemens

3NA6132-6

LV HRC fuse element, NH1, In: 125 A, gG, Un AC: 690 V

Compare LV HRC Fuse Links

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	size of fuse system according to EN 60269-1	operational current at AC rated value	power loss [W]	power loss [W] for rated value of the current at AC in hot operating state per pole	Net Weight
3NA3236-4KK04	NH2	160 A	16.5 W	17 W	633 g
3NA3236-4KK03	NH2	160 A	16.5 W	17 W	0.71 kg
3NA3236-4KK02	NH2	160 A	10 W	10 W	629 g
3NA3232-4KK02	NH2	125 A	7.5 W	8 W	627 g
3NA3232-4KK01	NH2	125 A	7.5 W	8 W	0.71 kg
3NA3232	NH2	125 A	9.8 W	10 W	465.3 g
3NA3230-6	NH2	100 A	8.5 W	9 W	468 g
3NA3105	NH1	16 A	2.1 W	2 W	285 g
3NA3036	NH0	160 A	13.5 W	14 W	266 g
3NA3032	NH0	125 A	10.2 W	10 W	270 g
3NA3005	NH0	16 A	1.9 W	2 W	263 g
3NA3003	NH0	10 A	1 W	1 W	267 g
3NA3001	NH0	6 A	1.5 W	2 W	268 g
3NA3140-6	NH1	200 A	17.2 W	17 W	445 g
3NA3124	NH1	80 A	7.5 W	8 W	285 g
3NA3830	NH000	100 A	6.95 W	7 W	130 g
3NA3824-7	NH00	80 A	5.8 W	6 W	201.3 g
3NA3824-6	NH00	80 A	6.94 W	7 W	199 g
3NA3820	NH000	50 A	3.8 W	4 W	130 g
3NA3814-7	NH00	35 A	3.39 W	3 W	200 g
3NA3814-6	NH000	35 A	3.32 W	3 W	131 g
3NA6136-4	NH1	160 A	14.05 W	14 W	287 g
3NA6136	NH1	160 A	14.6 W	15 W	287 g
3NA6132-6	NH1	125 A	10.5 W	11 W	285 g

Common to all listed parts

product designation	LV HRC fuse link
design of the switching contact	Non-corroding, silver-plated
design of the fuse link	LV HRC fuse link
protection class IP	IP20, with connected conductors
mounting position	Any, preferably vertical
ambient temperature during operation — minimum	-5 °C
environmental category	-20 to +50 at 95% relative humidity
reference code according to IEC 81346-2	FC
