Bosch Rexroth 3842531610
STOP GATE VE 2/M
- MPN
- 3842531610
- Category
- Stop gate TS 2plus
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842531610?

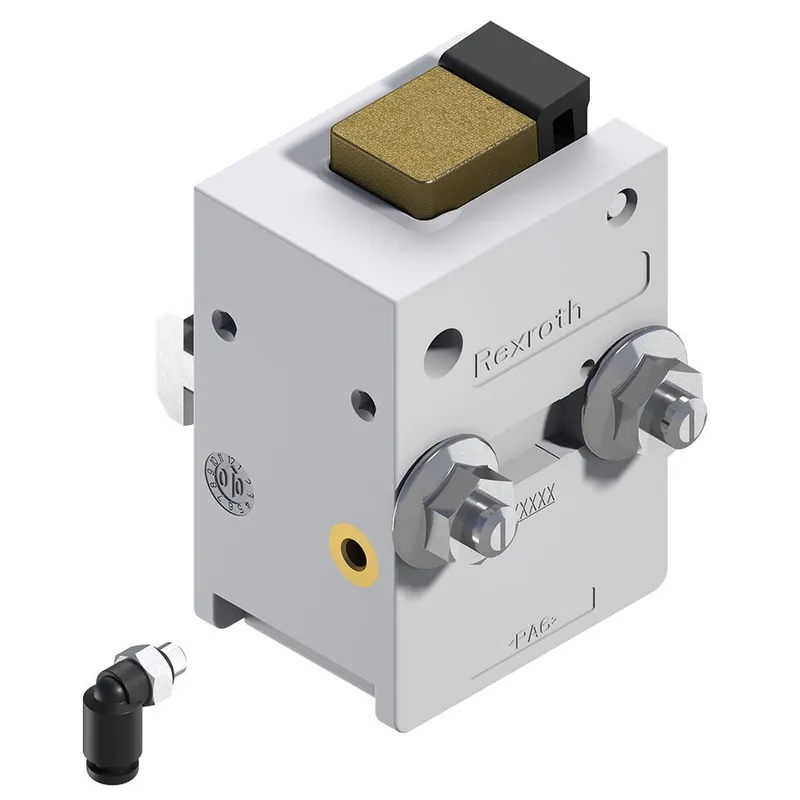

VE 2/M Stop Gate
Pneumatic stop gate
Media resistant
Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface.
Low-noise; especially quiet operation during opening and closing
Reversible operation not permitted
Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS
Stops one or more accumulating workpiece pallets at the defined stop surface
When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped
Mounted inside the tracks, directly on the conveyor section
Specifications
Specifications
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Operating temperature [T] max | +5 ... +60 °C |
| Workpiece pallet total weight [mG] [kg] | 200 |
| Pneumatic straight connection [Ø] [mm] | 4 |
| A-rated emission sound pressure level [LPA] | < 60 dB(A) |
| Scope of delivery | Incl. all fastening material to mount on ST 2/... conveyor section; Pneumatic elements |
| Delivery information | Fully assembled |
| Notice | High-temperature stop gate on request |
| Material information | Housing: PA 6; Safety catch: Brass; Stop cam: PA 66 |

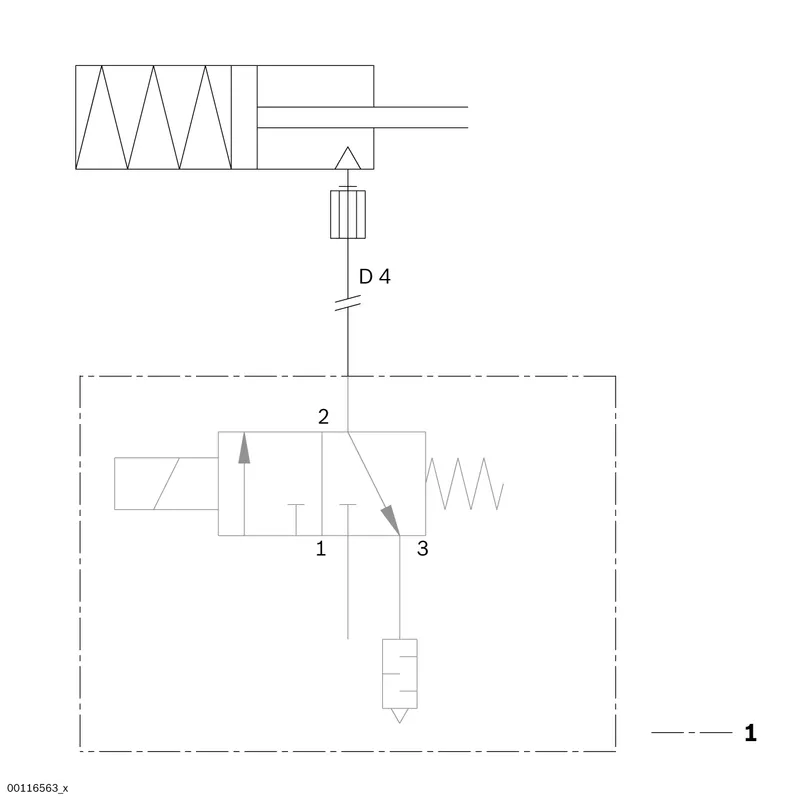

| Pneumatic circuit diagram | 1 Not included in the scope of delivery |

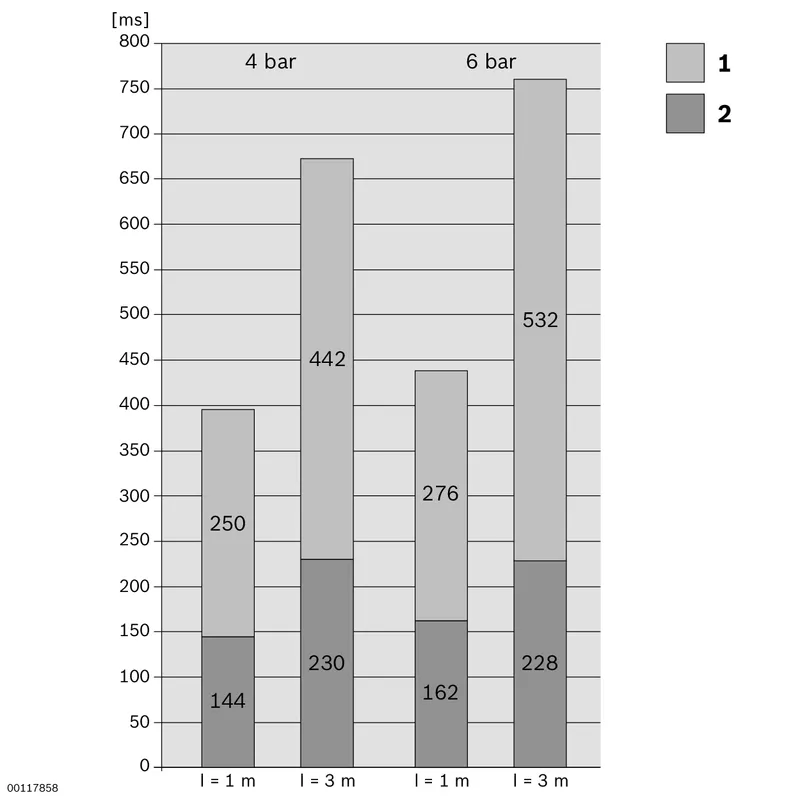

| Opening/shutting times | 1 Close; 2 Open at 4 bar; l = Hose length |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min | 200 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min | 140 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min | 100 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min | 70 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min | 50 kg |
| Recommended accessories | Position sensor; Switch bracket SH 2/...; VE 2/RS Return Stop |
| Weight [kg] | 0.35 |
