Bosch Rexroth 3842515844

STOP GATE VE 2/S

MPN: 3842515844
Category: Stop gate TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

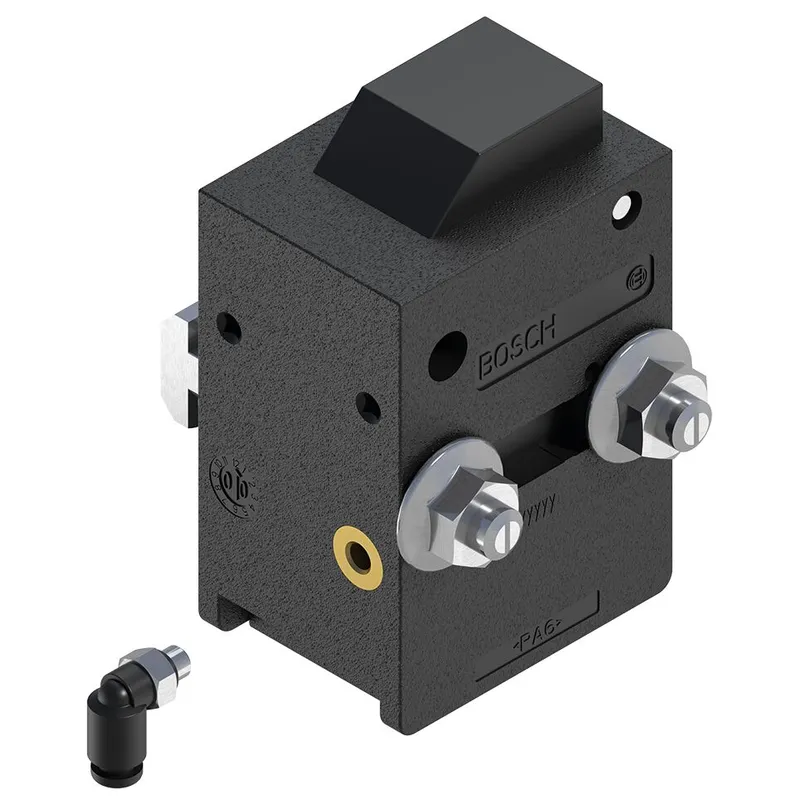

What is the Bosch Rexroth 3842515844?

VE 2/S Stop Gate

Pneumatic stop gate

Used on sections with reversible operation

Pressure must not be exerted on VE 2/S by pallets traveling in reverse

Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS

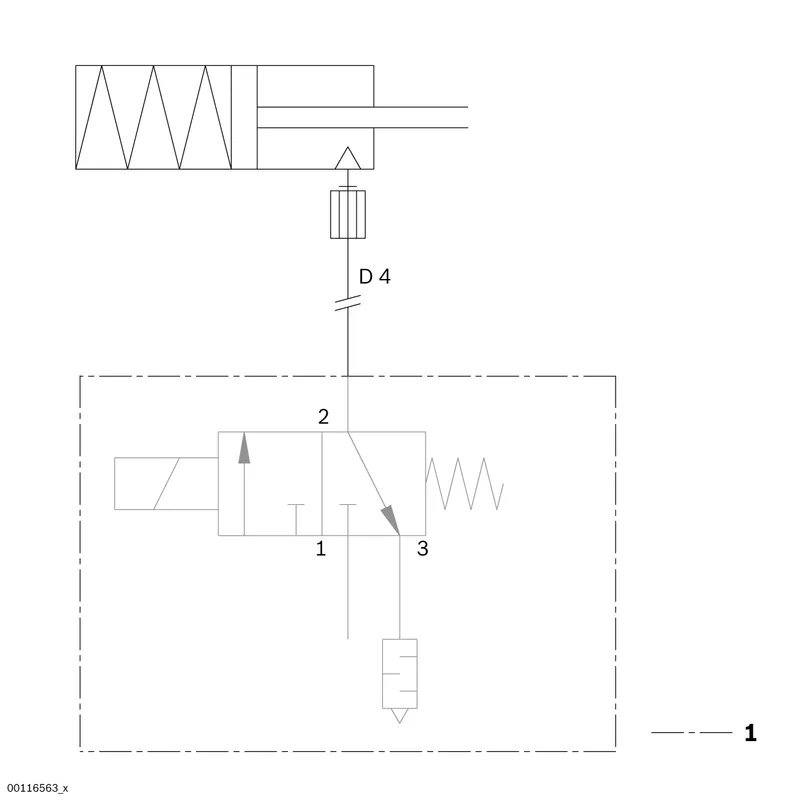

Safe transition from both directions is possible by actively (pneumatically) opening the safety catch

Stops one or more accumulating workpiece pallets at the defined stop surface

The VE 2/S can only stop workpiece pallets coming from one direction

When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped

Two VE 2/S are needed to stop workpiece pallets coming from both directions of transport, since pressure must not be exerted on the stop gate by pallets traveling in reverse

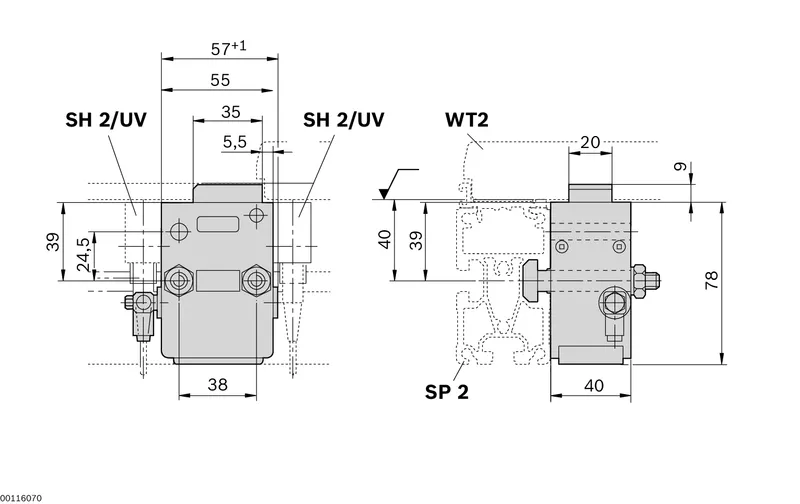

Mounted inside the tracks, directly on the conveyor section

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	140
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section; Pneumatic elements
Delivery information	Fully assembled
Notice	High-temperature stop gate on request
Material information	Housing: PA 6; Stop cam: PA 66
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	140 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	90 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	70 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	50 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	30 kg
Recommended accessories	Position sensor; Switch bracket SH 2/...; VE 2/RS Return Stop
Weight [kg]	0.38
