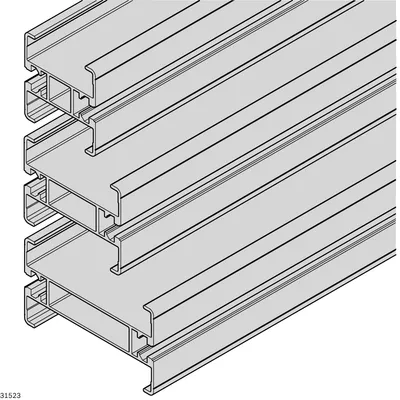

Section AL, section profile Parts
Compare Section AL, section profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mass [m] [kg] | Size [b] [mm] | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Weight [kg] |
|---|---|---|---|---|---|
| 3842547904 | 0.69 | 160; 240; 320 | 1.92 | 15.25 | 2.3 |
| 3842996028 | 0.69 | 160; 240; 320 | 1.92 | 15.25 | 0 |
| 3842546705 | 0.69 | 160; 240; 320 | 1.92 | 15.25 | 48.96 |
| 3842546670 | 1.1 | 120; 160; 240; 320; 65; 90 | 11.22 | 3.45 | 3.4 |
| 3842996026 | 1.1 | 120; 160; 240; 320; 65; 90 | 11.22 | 3.45 | 0 |
| 3842546647 | 1.1 | 120; 160; 240; 320; 65; 90 | 11.22 | 3.45 | 90.6 |
| 3842996023 | 2.42 | 90 | 24.4 | 102.86 | 0 |
| 3842546644 | 2.42 | 90 | 24.4 | 102.86 | 180.7 |
| 3842996022 | 2.12 | 65 | 23.13 | 45.81 | 0 |
| 3842546643 | 2.12 | 65 | 23.13 | 45.81 | 158.5 |
| 3842996024 | 2.74 | 120 | 25.83 | 206.79 | 0 |
| 3842546645 | 2.74 | 120 | 25.83 | 206.79 | 101.4 |
| 3842546673 | — | 90 | — | — | 0.06 |
| 3842546672 | — | 65 | — | — | 0.03 |
| 3842546677 | — | 320 | — | — | 0.17 |
| 3842546676 | — | 240 | — | — | 0.13 |
| 3842546675 | — | 160 | — | — | 0.09 |
| 3842546674 | — | 120 | — | — | 0.71 |
