Bosch Rexroth 3842546670

SECTION PROFILE VFPLUS AL 1/2, 2X3000

MPN: 3842546670
Category: Section AL, section profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842546670?

Section profile VFplus AL open, L3000

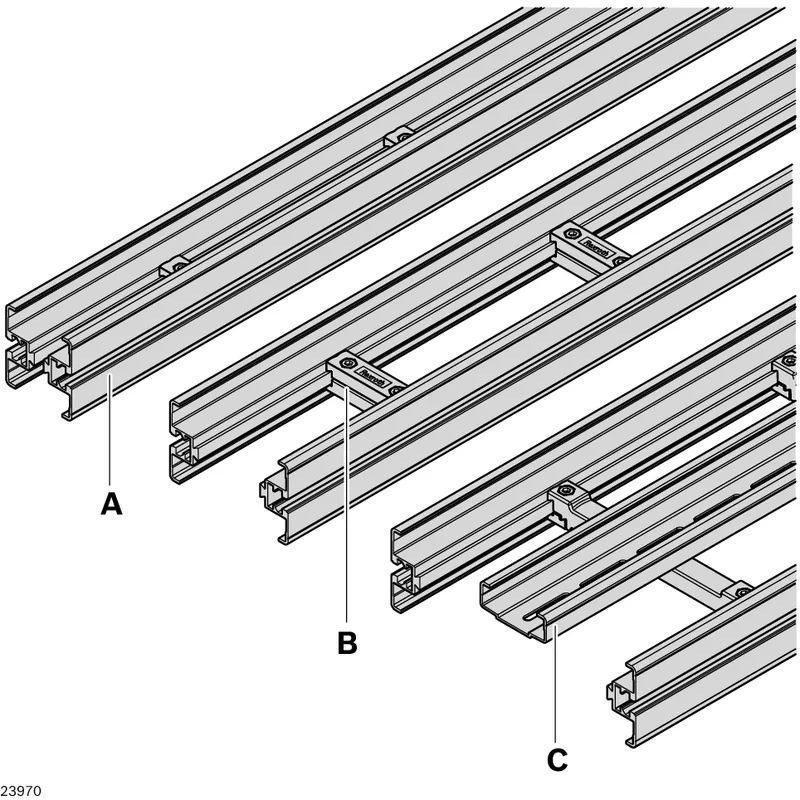

Slot on the inside for attaching main components such as drive/return unit, curves, etc.

External 10 mm slot for the simple attachment of lateral guides, supports or components from the modular aluminum framing system

If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid

Cross connector with mounting option for support profile

Support profile with elongated holes at regular intervals for fastening

Specifications

Condition on delivery	Packaging unit in standard length
Profile slot	10
Color	Natural
Delivery unit	2
Mass [m] [kg]	1.1
Size [b] [mm]	120; 160; 240; 320; 65; 90

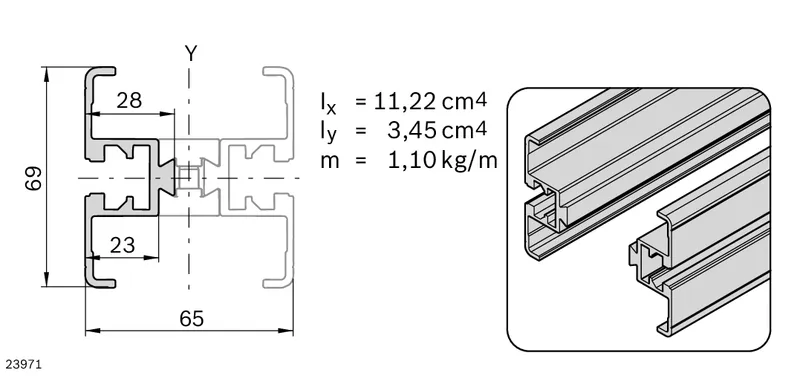

Area moment of inertia in x-direction [lx] [cm⁴]	11.22
Area moment of inertia in y-direction [ly] [cm⁴]	3.45
Delivery information	Not assembled
Length [L]	3000.0
Material	Aluminum, anodized
Required accessories	Slide rail; profile connector; cross connector; support profile starting from size 160
Recommended accessories	Cover profile
Weight [kg]	3.4
