Bosch Rexroth 3842547904

SUPPORTING STRUCTURE 160-320+ AL L3000

MPN: 3842547904
Category: Section AL, section profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547904?

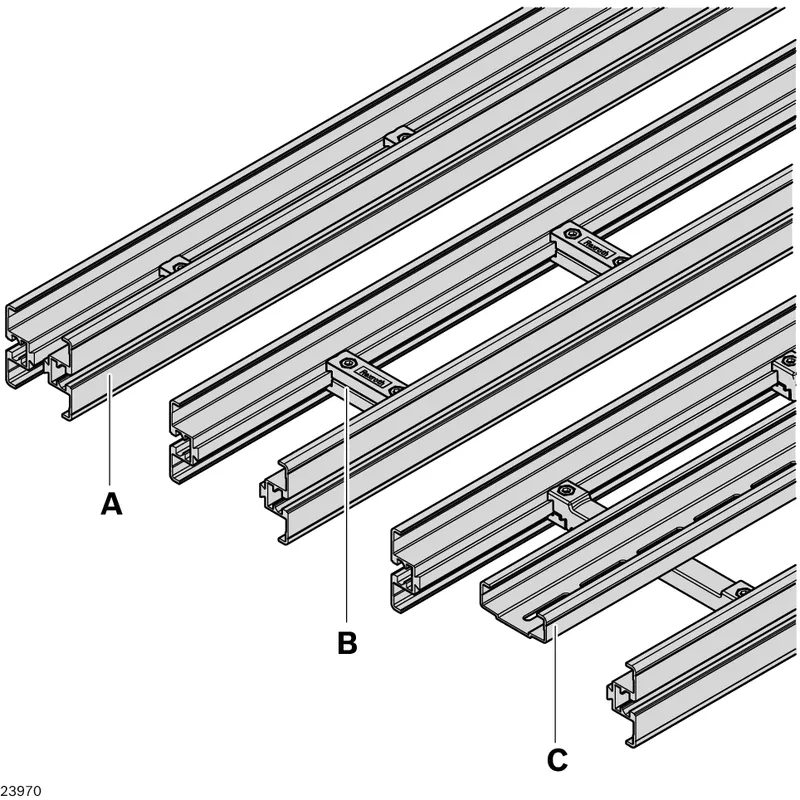

Support profile VFplus AL, L3000

Slot on the inside for attaching main components such as drive/return unit, curves, etc.

External 10 mm slot for the simple attachment of lateral guides, supports or components from the modular aluminum framing system

If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid

Cross connector with mounting option for support profile

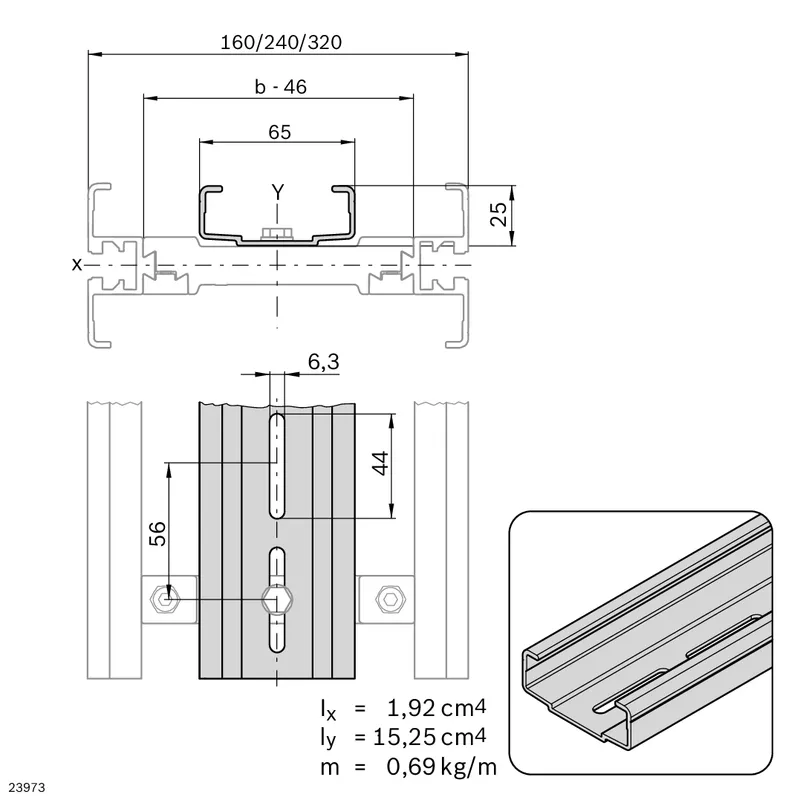

Support profile with elongated holes at regular intervals for fastening

Specifications

Condition on delivery	Single rod in standard length
Color	Natural
Delivery unit	1
Mass [m] [kg]	0.69
Size [b] [mm]	160; 240; 320
Area moment of inertia in x-direction [lx] [cm⁴]	1.92
Area moment of inertia in y-direction [ly] [cm⁴]	15.25
Length [L]	3000.0
Material	Aluminum, anodized
Weight [kg]	2.3
