Bosch Rexroth 3842996024

SECTION PROFILE 120+ AL L VAR

MPN: 3842996024
Category: Section AL, section profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842996024?

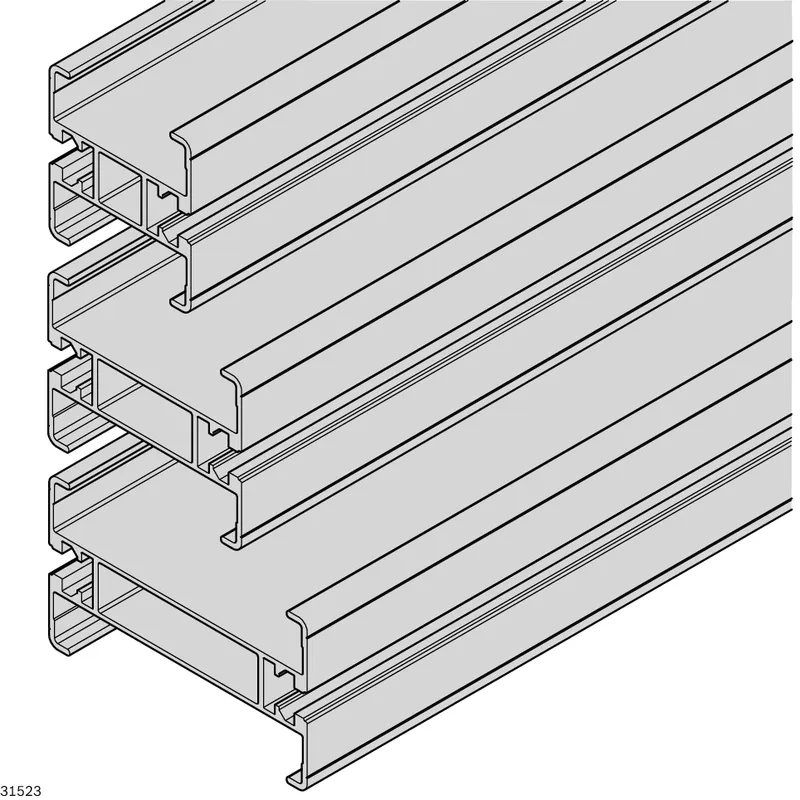

Section profile VFplus 120 AL, L50-6000

The section profile is the supporting element when building straight conveyor sections and is used for mounting all necessary components.

Size: 65, 90, 120

Slot on the inside for attaching main components such as drive/return unit, curves, etc.

Slot on the outside for fastening lateral guides, supports, or other accessories

If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid

Special constructions can be attached quickly and simply using components from the modular aluminum framing system and the external 10 mm slot.

Specifications

Condition on delivery	Variable length
Profile slot	10
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	50
Mass [m] [kg]	2.74

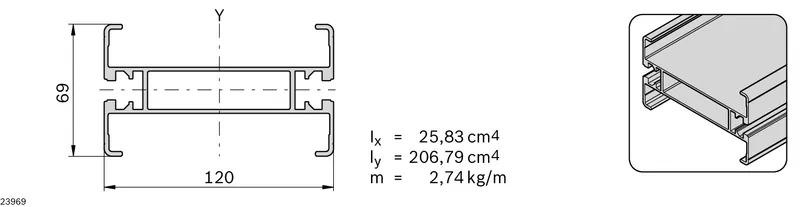

Size [b] [mm]	120
Area moment of inertia in x-direction [lx] [cm⁴]	25.83
Area moment of inertia in y-direction [ly] [cm⁴]	206.79
Material	Aluminum, anodized
Required accessories	Profile connector; Slide rail
Recommended accessories	Cover profile
Weight [kg]	0
