Home / Actuators / Electromechanical actuators / Linear axes / Small Modules / Connection elements for Small Modules SMS

Connection elements for Small Modules SMS Parts

Showing 1–24 of 24 parts
Bosch Rexroth R02680C002 – CONNECTING PLATE 3D2
Bosch Rexroth
R02680C002

CONNECTING PLATE 3D2

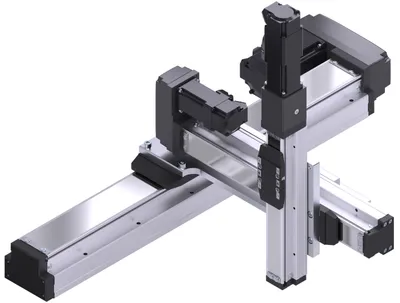

Bosch Rexroth R02680C001 – CONNECTING PLATE 3D1
Bosch Rexroth
R02680C001

CONNECTING PLATE 3D1

Bosch Rexroth R02680C020 – CONNECTING ANGLE 3D2-600-A2
Bosch Rexroth
R02680C020

CONNECTING ANGLE 3D2-600-A2

Bosch Rexroth R02680C018 – CONNECTING ANGLE 3D2-600-A1
Bosch Rexroth
R02680C018

CONNECTING ANGLE 3D2-600-A1

Bosch Rexroth R02680C019 – CONNECTING ANGLE 3D2-400-A2
Bosch Rexroth
R02680C019

CONNECTING ANGLE 3D2-400-A2

Bosch Rexroth R02680C017 – CONNECTING ANGLE 3D2-400-A1
Bosch Rexroth
R02680C017

CONNECTING ANGLE 3D2-400-A1

Bosch Rexroth R02680C024 – CONNECTING ANGLE 2D4-600-A2
Bosch Rexroth
R02680C024

CONNECTING ANGLE 2D4-600-A2

Bosch Rexroth R02680C022 – CONNECTING ANGLE 2D4-600-A1
Bosch Rexroth
R02680C022

CONNECTING ANGLE 2D4-600-A1

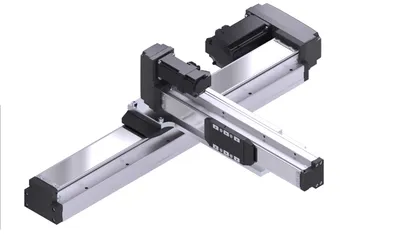

Bosch Rexroth R02680C023 – CONNECTING ANGLE 2D4-400-A2
Bosch Rexroth
R02680C023

CONNECTING ANGLE 2D4-400-A2

Bosch Rexroth R02680C021 – CONNECTING ANGLE 2D4-400-A1
Bosch Rexroth
R02680C021

CONNECTING ANGLE 2D4-400-A1

Bosch Rexroth R02680C016 – CONNECTING ANGLE 2D4-200-A2
Bosch Rexroth
R02680C016

CONNECTING ANGLE 2D4-200-A2

Bosch Rexroth R02680C014 – CONNECTING ANGLE 2D4-200-A1
Bosch Rexroth
R02680C014

CONNECTING ANGLE 2D4-200-A1

Bosch Rexroth R02680C015 – CONNECTING ANGLE 2D4-100-A2
Bosch Rexroth
R02680C015

CONNECTING ANGLE 2D4-100-A2

Bosch Rexroth R02680C013 – CONNECTING ANGLE 2D4-100-A1
Bosch Rexroth
R02680C013

CONNECTING ANGLE 2D4-100-A1

Bosch Rexroth R02680C012 – CONNECTING ANGLE 2D3-200-A2
Bosch Rexroth
R02680C012

CONNECTING ANGLE 2D3-200-A2

Bosch Rexroth R02680C010 – CONNECTING ANGLE 2D3-200-A1
Bosch Rexroth
R02680C010

CONNECTING ANGLE 2D3-200-A1

Bosch Rexroth R02680C011 – CONNECTING ANGLE 2D3-100-A2
Bosch Rexroth
R02680C011

CONNECTING ANGLE 2D3-100-A2

Bosch Rexroth R02680C009 – CONNECTING ANGLE 2D3-100-A1
Bosch Rexroth
R02680C009

CONNECTING ANGLE 2D3-100-A1

Bosch Rexroth R02680C008 – CONNECTING ANGLE 2D2-200-A2
Bosch Rexroth
R02680C008

CONNECTING ANGLE 2D2-200-A2

Bosch Rexroth R02680C006 – CONNECTING ANGLE 2D2-200-A1
Bosch Rexroth
R02680C006

CONNECTING ANGLE 2D2-200-A1

Bosch Rexroth R02680C007 – CONNECTING ANGLE 2D2-100-A2
Bosch Rexroth
R02680C007

CONNECTING ANGLE 2D2-100-A2

Bosch Rexroth R02680C005 – CONNECTING ANGLE 2D2-100-A1
Bosch Rexroth
R02680C005

CONNECTING ANGLE 2D2-100-A1

Bosch Rexroth R02680C004 – CONNECTING ANGLE 2D1-100-A2
Bosch Rexroth
R02680C004

CONNECTING ANGLE 2D1-100-A2

Bosch Rexroth R02680C003 – CONNECTING ANGLE 2D1-100-A1
Bosch Rexroth
R02680C003

CONNECTING ANGLE 2D1-100-A1

Compare Connection elements for Small Modules SMS

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNCombination of axesSize of the attached linear axisTypeWeight [kg]Maximum travel range smax y-axis [mm]
R02680C002SMS-080/SMS-050SMS-0503D22.24—
R02680C001SMS-050/SMS-040SMS-0403D10.31—
R02680C020SMS-120/SMS-080SMS-0803D25.4600.0
R02680C018SMS-120/SMS-080SMS-0803D25.4600.0
R02680C019SMS-120/SMS-080SMS-0803D24400.0
R02680C017SMS-120/SMS-080SMS-0803D24400.0
R02680C024SMS-120/SMS-120SMS-1202D48.67600.0
R02680C022SMS-120/SMS-120SMS-1202D48.67600.0
R02680C023SMS-120/SMS-120SMS-1202D46.68400.0
R02680C021SMS-120/SMS-120SMS-1202D46.68400.0
R02680C016SMS-120/SMS-120SMS-1202D44.67200.0
R02680C014SMS-120/SMS-120SMS-1202D44.7200.0
R02680C015SMS-120/SMS-120SMS-1202D43.7100.0
R02680C013SMS-120/SMS-120SMS-1202D43.7100.0
R02680C012SMS-120/SMS-080SMS-0802D3/3D22.58200.0
R02680C010SMS-120/SMS-080SMS-0802D3/3D22.58200.0
R02680C011SMS-120/SMS-080SMS-0802D3/3D21.87100.0
R02680C009SMS-120/SMS-080SMS-0802D3/3D21.87100.0
R02680C008SMS-080/SMS-050SMS-0502D2/3D11.54200.0
R02680C006SMS-080/SMS-050SMS-0502D2/3D11.54200.0
R02680C007SMS-080/SMS-050SMS-0502D2/3D11.05100.0
R02680C005SMS-080/SMS-050SMS-0502D2/3D11.05100.0
R02680C004SMS-050/SMS-040SMS-0402D10.63100.0
R02680C003SMS-050/SMS-040SMS-0402D10.63100.0
