Bosch Rexroth R02680C009

CONNECTING ANGLE 2D3-100-A1

MPN: R02680C009
Category: Connection elements for Small Modules SMS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R02680C009?

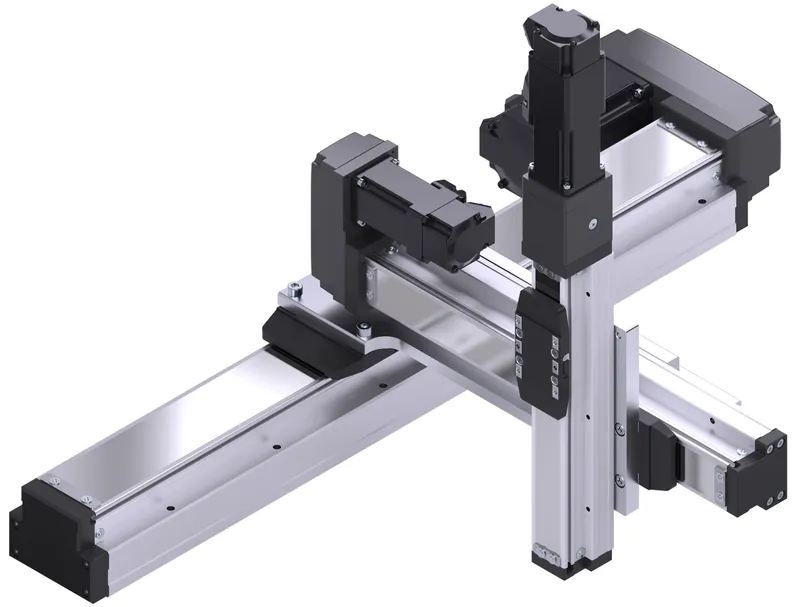

2D and 3D cantilever systems can be set up by the customer with the angle brackets and connection plates of the Small Modules. The performance data of these multi-axis systems and instructions for the quick and easy selection and setup of the appropriate components are provided in the "Documents" folder.

Specifications

Application	2D cantilever / 3D cantilever
Combination of axes	SMS-120/SMS-080
Size of the basic axis	SMS-120
Size of the attached linear axis	SMS-080
Accessories for Small Modules	Angle bracket
Type	2D3/3D2
Maximum travel range smax x-axis [mm]	1200.0
Maximum travel range smax y-axis [mm]	100.0
Payload 2D3 x-32 [kg]	19.85
Payload 3D2 x-10, y-10, y100, z100 [kg]	5.0
Payload 3D2 x-10, y-10, y100, z200 [kg]	5.0
Payload 3D2 x-10, y-10, y100, z300 [kg]	5.0
Weight [kg]	1.87
