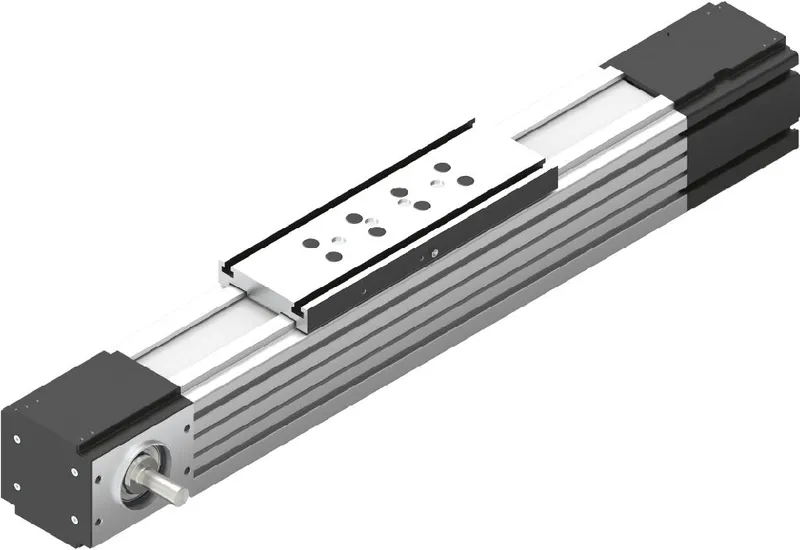

Bosch Rexroth R114826013

LINEAR MODULE MLR-110-NN-3

MPN
R114826013
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R114826013?

Linear modules MLR with cam roller guide and toothed belt drive for high-speed applications

Linear module with cam roller guide and toothed belt drive

High-performance toothed belt (AT profile) for high travel speeds of up to 10 m/s

Extremely compact aluminum profile with integrated Rexroth cam roller guide with internal cam rollers (cam rollers, set to zero-clearance via eccentric shafts)

With planetary gears in different gear ratios and versions for optimum adaptation of the external load to the motor inertia.

Realization of greater lengths of up to 10000 mm

Protection of the guide components by toothed belt

Aluminum carriages with T-slots and centering holes and central lubrication point (oil lubrication!)

Repeatability of up to ± 0.05 mm

Servo motor with multiturn absolute encoder and with or without holding brake

Optimal adaptation of the external load to the motor inertia can be realized by means of various reduction ratios. The planetary gear can be integrated in the belt drive pulley or mounted as a gear reducer. This results in a highly dynamic drive.

Cover provided by the toothed belt

Centering holes also in the frame profile for simple combination with other linear systems and connection elements

Standard with integrated solenoid switch for magnetic field sensors

Extensive accessories range of connection and clamping units and connecting shafts

Name plate with parameters for easy commissioning

Specifications

Specifications

Nominal size [mm]MLR-110
Linear axes variantToothed belt drive
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]10.0
Max. length Lmax [mm]10000.0
Dynamic torsional moment load capacity Mt [Nm]629.0
Dynamic longitudinal moment load capacity ML [Nm]1121.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]49
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]302
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]302
Maximum dynamic load in y-direction Fy max [N]8000
Maximum dynamic load in z1-direction Fz1 max [N]4800
Maximum dynamic load in z2-direction Fz2 max [N]4800
Planar moment of inertia about the y-axis ly [cm⁴]499
Planar moment of inertia about the z-axis lz [cm⁴]749
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... 60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0

R114826013: frequently asked questions

When can R114826013 be shipped?

R114826013 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R114826013 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R114826013 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R114826013, subject to availability and destination.
