Bosch Rexroth R153246006
BALL NUT FEM-E-B 12X5RX2-3
- MPN
- R153246006
- Category
- Ball screw assembly nuts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R153246006?

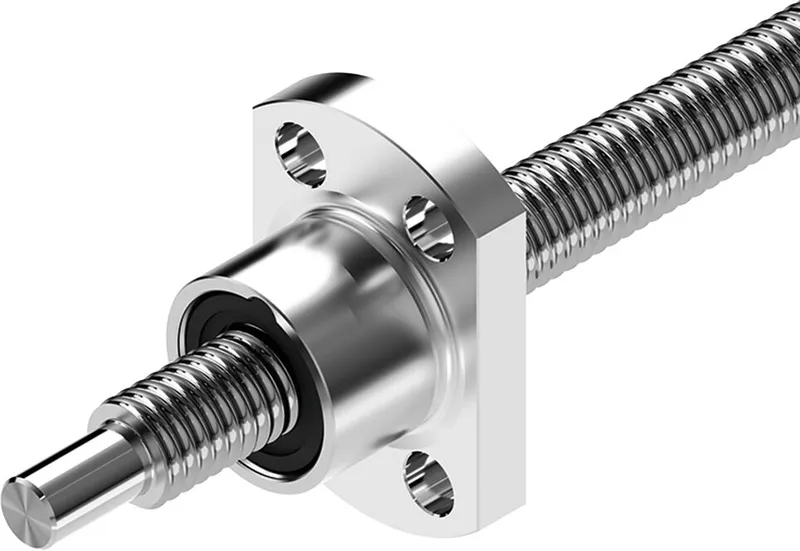

Single nut with flange FEM-E-B with standard seal and standard axial clearance
Nominal diameter d0 = 12
Lead P = 5 (right)
Ball diameter Dw = 2
Number of ball track turns i = 3
Preload class: C0, C00, C1, C2, C3
Rexroth connection dimensions flange type B
With seals
Preload class: C0, C00
Except for size 8 x 2.5/5 and 12 x 5/10: Preload class C1
Tolerance grade: T5, T7, T9
Specifications
Specifications
| Nominal size [mm] | 12 x 5R x 2 - 3 |
| Series | Miniature series |
| Dynamic load capacity C [N] | 4560.0 |
| Note: dynamic load capacity C | The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Maximum permissible linear speed vmax (m/min) [m/min] | 30.0 |
| Note: maximum permissible speed vmax | See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes") |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Direction of lead | Right |
| Nut type | FEM-E-B single nut with flange |
| Note: permissible operating temperature (min. ... max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Screw drive seal | With seal |
| Weight [kg] | 0.13 |
| Static load capacity C0 [N] | 5800.0 |
| Note: static load capacity C0 | The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Category | A |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |
| Dimension d1 [mm] | 11.4 |
| Dimension D1 g6 [mm] | 22 |
| Dimension d2 [mm] | 9.9 |
| Dimension D4 [mm] | 2 |
| Dimension D5 [mm] | 37 |
| Dimension D6 [mm] | 29 |
| Dimension D7 [mm] | 4.5 |
| Dimension L [mm] | 28 |
| Dimension L14 [mm] | 24 |
| Dimension L3 [mm] | 8 |
| Dimension L4 [mm] | 20 |
| Dimension L7 [mm] | 6 |
R153246006: frequently asked questions
When can R153246006 be shipped?
R153246006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R153246006 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R153246006 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R153246006, subject to availability and destination.
