Bosch Rexroth R153249006

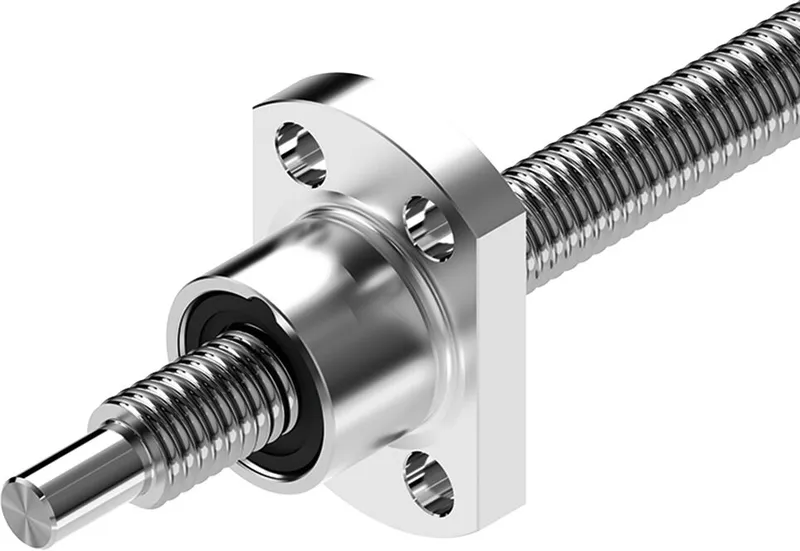

BALL NUT FEM-E-B 12X10RX2-2

MPN: R153249006
Category: Ball screw assembly nuts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R153249006?

Single nut with flange FEM-E-B with standard seal and standard axial clearance

Nominal diameter d0 = 12

Lead P = 10 (right)

Ball diameter Dw = 2

Number of ball track turns i = 2

Preload class: C0, C00, C1, C2, C3

Rexroth connection dimensions flange type B

With seals

Preload class: C0, C00

Except for size 8 x 2.5/5 and 12 x 5/10: Preload class C1

Tolerance grade: T5, T7, T9

Specifications

Nominal size [mm]	12 x 10R x 2 - 2
Series	Miniature series
Dynamic load capacity C [N]	3000.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	60.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes")
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	FEM-E-B single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Screw drive seal	With seal
Weight [kg]	0.14
Static load capacity C0 [N]	3600.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	11.4
Dimension D1 g6 [mm]	22
Dimension d2 [mm]	9.9
Dimension D4 [mm]	2
Dimension D5 [mm]	37
Dimension D6 [mm]	29
Dimension D7 [mm]	4.5
Dimension L [mm]	33
Dimension L14 [mm]	24
Dimension L3 [mm]	8
Dimension L4 [mm]	25
Dimension L7 [mm]	8
