Precision steel shafts with shaft support rails Parts
Compare Precision steel shafts with shaft support rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dimension A (profiled rail systems) [mm] | Dimension H [mm] | Dimension O1 thread x lead [mm] | Dimension V [mm] |
|---|---|---|---|---|---|
| R105063000 | 1.49 | 69 | 42.0 | M10x35 | 7 |
| R105053000 | 1.54 | 69 | 42.0 | — | 7 |
| R103953030 | 2.23 | 69 | 42.0 | — | 7 |
| R105422500 | 1.46 | — | — | M8x50 | 20 |
| R105412500 | 1.3 | — | — | M8x50 | 20 |
| R103982530 | 2.75 | 57 | 36.0 | M8x30 | 6 |
| R105022500 | 1.3 | 60 | 42.0 | M8x35 | 6 |
| R105002500 | 0.16 | 60 | 42.0 | — | 6 |
| R105072500 | 1.16 | 57 | 36.0 | M8x30 | 6 |
| R105062500 | 1.15 | 57 | 36.0 | M8x30 | 6 |

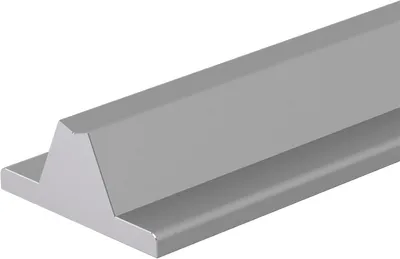

| R105052500 | 1.3 | 57 | 36.0 | — | 6 |
| R103952530 | 1.55 | 57 | 36.0 | — | 6 |
| R105422000 | 0.9 | — | — | M6x45 | 15 |
| R105412000 | 0.95 | — | — | M6x45 | 15 |
| R103982030 | 2.3 | 52 | 32.0 | M6x25 | 6 |
| R105022000 | 1.02 | 56 | 38.0 | M6x30 | 6 |
| R105002000 | 1.07 | 56 | 38.0 | — | 6 |
| R105072000 | 0.98 | 52 | 32.0 | M6x25 | 6 |
| R105062000 | 0.95 | 52 | 32.0 | M6x25 | 6 |
| R105052000 | 1 | 52 | 32.0 | — | 6 |
| R103952030 | 2.1 | 52 | 32.0 | — | 6 |
| R105021600 | 0.9 | 48 | 30.0 | M5x25 | 5 |
| R105001600 | 0.79 | 48 | 30.0 | — | 5 |
| R105071600 | 0.69 | 45 | 26.0 | M5x20 | 5 |
Common to all listed parts
| Material shaft support rails | Aluminum |
