SHAFT SUPPORT RAIL WU16-AF2-600

Name: Bosch Rexroth R105071600 – SHAFT SUPPORT RAIL WU16-AF2-600
Brand: Bosch Rexroth
SKU: R105071600

MPN: R105071600 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Precision steel shafts with shaft support rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R105071600 be shipped?

R105071600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R105071600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R105071600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R105071600, subject to availability and destination.

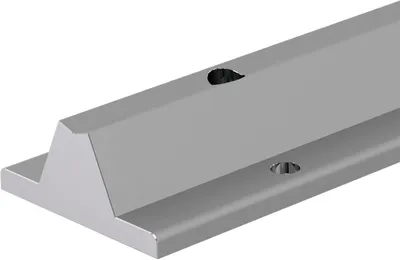

Shaft support rail

Shaft diameter d = 16

Version: Aluminum, flange, bore spacing type 2

600 = standard length as per table

Shaft support rail material: Aluminum

Combined with linear sets, these shaft support rails can be used to create linear guides with very low height.

Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

Specifications

Shaft diameter d [mm]	16.0
Material shaft support rails	Aluminum
Length L [mm]	600.0
Weight [kg]	0.69
Dimension A (profiled rail systems) [mm]	45
Dimension E [mm]	33
Dimension H [mm]	26.0
Dimension M [mm]	7
Dimension O1 thread x lead [mm]	M5x20
Dimension O2 thread diameter	M5x16
Dimension t [mm]	7.6
Dimension U1 [mm]	5
Dimension V [mm]	5
Angle β [°]	50
