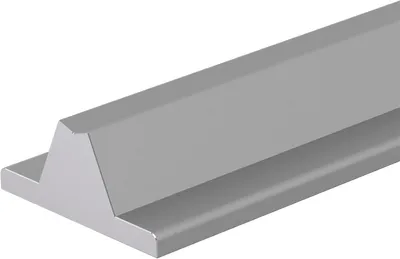

Precision steel shafts with shaft support rails Parts
Compare Precision steel shafts with shaft support rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Weight [kg] | Dimension A (profiled rail systems) [mm] | Dimension H [mm] | Dimension M [mm] |
|---|---|---|---|---|---|
| R105061600 | 16.0 | 0.69 | 45 | 26.0 | 7 |
| R105051600 | 16.0 | 0.8 | 45 | 26.0 | 7 |
| R105021200 | 12.0 | 0.68 | 43 | 28.0 | 5.8 |
| R105001200 | 12.0 | 0.7 | 43 | 28.0 | 5.8 |
| R105071200 | 12.0 | 0.57 | 40 | 22.0 | 5.8 |
| R105061200 | 12.0 | 0.58 | 40 | 22.0 | 5.8 |
| R105051200 | 12.0 | 0.6 | 40 | 22.0 | 5.8 |
Common to all listed parts
| Material shaft support rails | Aluminum |
| Length L [mm] | 600.0 |
| Dimension V [mm] | 5 |
