SHAFT SUPPORT RAIL WU25-A-1800

Name: Bosch Rexroth R103952530 – SHAFT SUPPORT RAIL WU25-A-1800
Brand: Bosch Rexroth
SKU: R103952530

MPN: R103952530 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Precision steel shafts with shaft support rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R103952530 be shipped?

R103952530 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R103952530 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R103952530 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R103952530, subject to availability and destination.

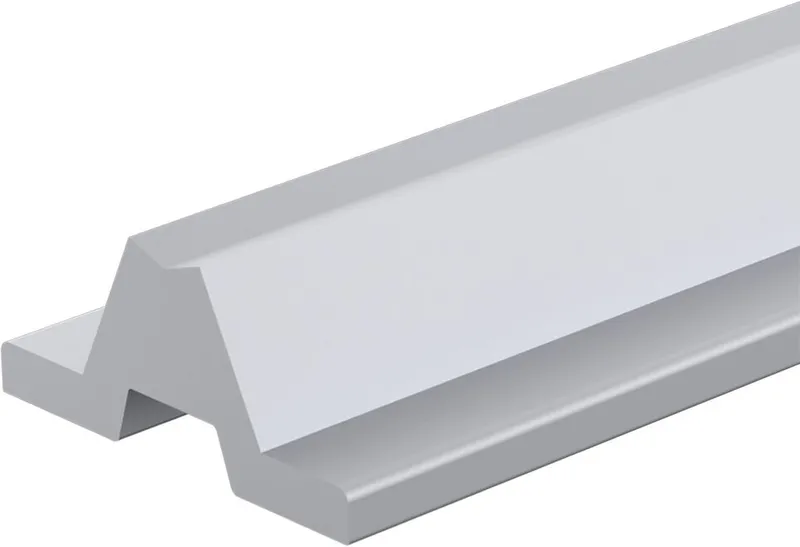

Shaft support rail

Shaft diameter d = 25

Version: Aluminum, without drilled holes

Shaft support rail material: Aluminum

Fast, easy, modular linear bushing and shaft construction on aluminum framing systems

Highly affordable due to less stringent height tolerance

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

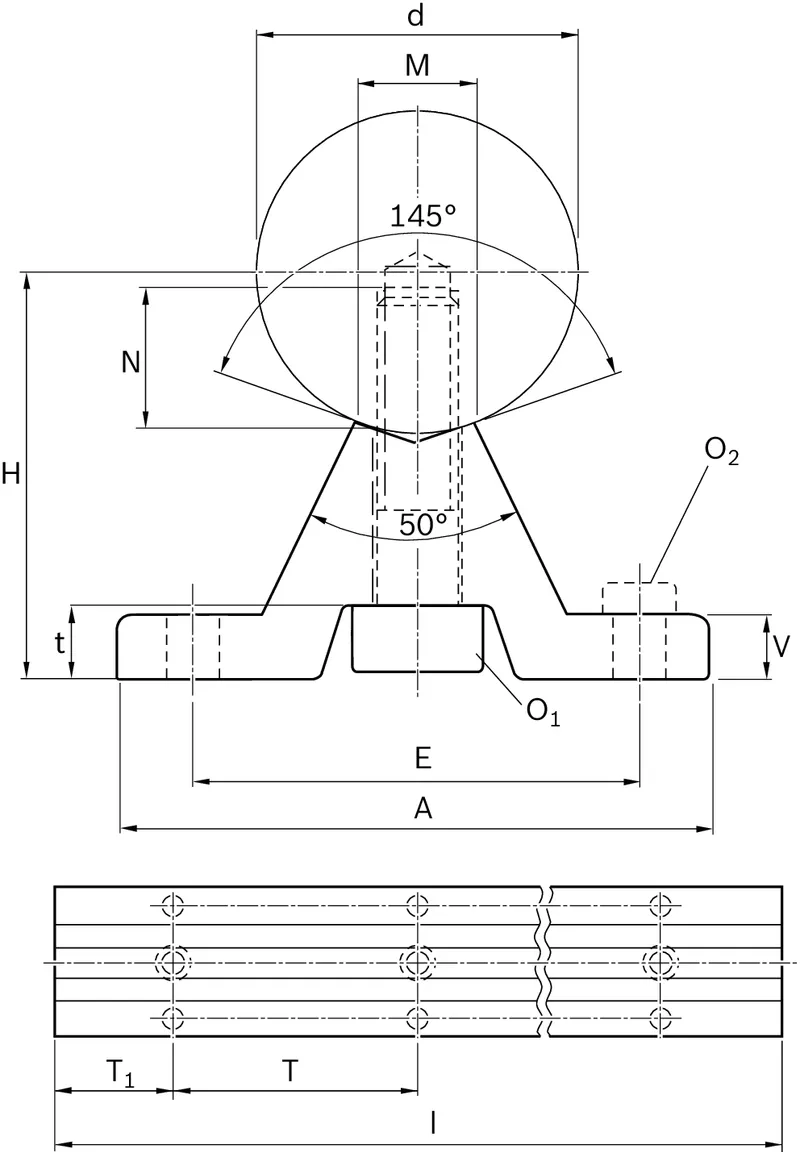

Specifications

Shaft diameter d [mm]	25.0
Material shaft support rails	Aluminum
Length L [mm]	1800.0
Mass m (kg/m) [kg/m]	1.6
Weight [kg]	1.55
Dimension A (profiled rail systems) [mm]	57
Dimension H [mm]	36.0
Dimension M [mm]	10.8
Dimension V [mm]	6
