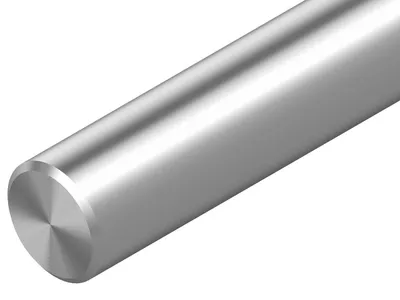

Precision steel shafts Parts
Compare Precision steel shafts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Tolerance grade shaft | Mass m (kg/m) [kg/m] | Hardness [HRC] |
|---|---|---|---|---|
| R100000630 | 6.0 | h6 | 0.22 | Min. 54 |
| R100000600 | 6.0 | h6 | 0.22 | min. 60 |
| R100006021 | 60.0 | h7 | 22.05 | Min. 55 |
| R100006031 | 60.0 | h7 | 22.05 | Min. 54 |
| R100006061 | 240.0 | h7 | 22.05 | min. 60 |
| R100006001 | 60.0 | h7 | 22.05 | min. 60 |
| R100006020 | 60.0 | h6 | 22.05 | Min. 55 |
| R100006030 | 60.0 | h6 | 22.05 | Min. 54 |
| R100006060 | 60.0 | h6 | 22.05 | min. 60 |
| R100006000 | 60.0 | h6 | 22.05 | min. 60 |
| R100000531 | 5.0 | h7 | 0.15 | Min. 54 |
| R100000501 | 5.0 | h7 | 0.15 | min. 60 |
| R100000530 | 5.0 | h6 | 0.15 | Min. 54 |
| R100000500 | 5.0 | h6 | 0.15 | min. 60 |
| R100005501 | 55.0 | h7 | 18.53 | min. 60 |
| R100005500 | 55.0 | h6 | 18.53 | min. 60 |
| R100005021 | 50.0 | h7 | 15.32 | Min. 55 |
| R100005031 | 50.0 | h7 | 15.32 | Min. 54 |
| R100005061 | 50.0 | h7 | 15.32 | min. 60 |
| R100005001 | 50.0 | h7 | 15.32 | min. 60 |
| R100005020 | 50.0 | h6 | 15.32 | Min. 55 |
| R100005030 | 50.0 | h6 | 15.32 | Min. 54 |
| R100005060 | 50.0 | h6 | 15.32 | min. 60 |
| R100005000 | 50.0 | h6 | 15.32 | min. 60 |
Common to all listed parts
| Version of precision steel shaft | Solid shaft |
| Type | Precision steel shaft |
| Weight [kg] | 0 |
| Footnote length L | Regarding geometry and hardness |
| Cylindricity tolerance t2 footnote | Measurement of differences in diameter |
