Bosch Rexroth R100006000

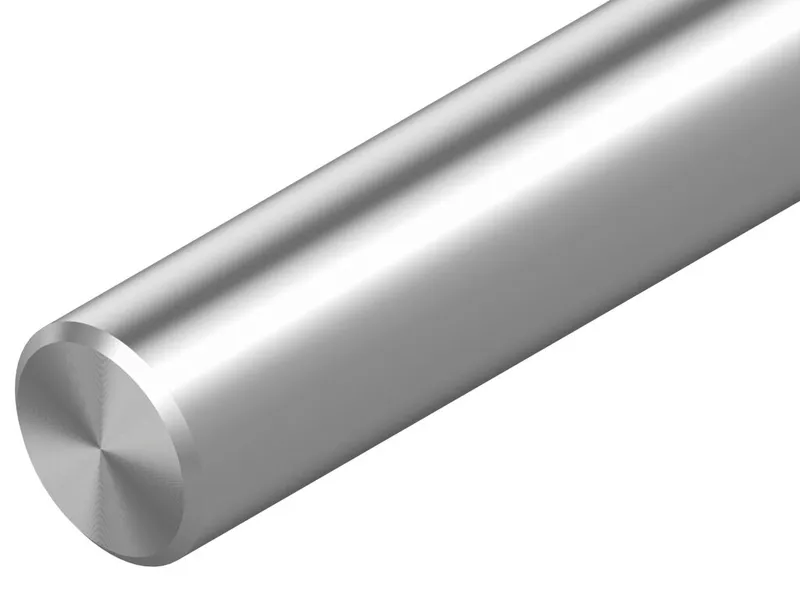

SOLID SHAFT WV-60H6

MPN: R100006000
Category: Precision steel shafts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R100006000?

Solid shaft

made of heat-treated steel

Shaft diameter d = 60

Tolerance = H6

For particularly high demands with a very long service life under rolling loads.

Specifications

Shaft diameter d [mm]	60.0
Material of precision steel shafts	Heat-treated steel Cf53
Tolerance grade shaft	h6
Version of precision steel shaft	Solid shaft
Note: tolerance grade	Other tolerances upon request
Type	Precision steel shaft
Note: Lmax	Sections are combined for longer overall lengths. Linear bushings can simply be rolled over joints.
Mass m (kg/m) [kg/m]	22.05
Weight [kg]	0
Hardness [HRC]	min. 60
Straightness tolerance t3 footnote	The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012.
Footnote length L	Regarding geometry and hardness
Cylindricity tolerance t2 footnote	Measurement of differences in diameter
