ELINE LINEAR SET LSACT-16-DD-RT-NR-G
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R102925234 be shipped?
R102925234 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R102925234 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R102925234 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R102925234, subject to availability and destination.

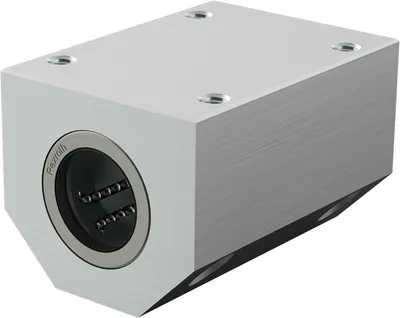

eLINE linear set (aluminum)
With compact LB, tandem, closed
Shaft diameter d = 16
With two seals
Version: Rust-resistant
Greased
Lightweight precision tandem housing (aluminum)
Corrosion-resistant version
Integrated wiper seals
Reduced radial clearance
Initial lubrication with Dynalub 510
Two eLINE linear bushings
Specifications
Specifications
| Shaft diameter d [mm] | 16.0 |
| Version | Corrosion-resistant |
| Format of linear bushings | – Closed |
| Series | Compact (eLINE) |
| Type | Linear set |
| Dynamic load capacity C [N] | 1180.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f<sub>0</sub> = 0.86, ↩Ø d 20 to 50: f = 0.79, f<sub>0</sub> = 0.68 |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Outer diameter D [mm] | 24.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.24 |
| Static load capacity C0 [N] | 920.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f<sub>0</sub> = 0.86, ↩Ø d 20 to 50: f = 0.79, f<sub>0</sub> = 0.68 |
| Static longitudinal moment load capacity ML0 [Nm] | 18 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 2 |

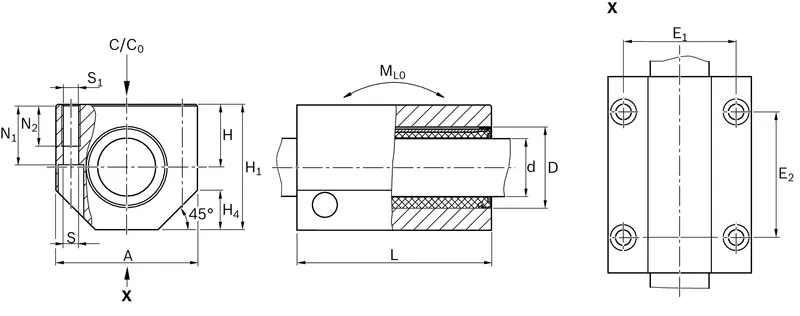

| Dimension A (profiled rail systems) [mm] | 45 |
| Dimension D [mm] | 24 |
| Dimension E1 [mm] | 34 |
| Dimension E2 [mm] | 40 |
| Dimension H [mm] | 19.0 |
| Dimension H1 (profiled rail systems) [mm] | 38 |
| Dimension H4 [mm] | 13 |
| Dimension L [mm] | 65 |
| Dimension N1 (profiled rail systems) [mm] | 18 |
| Dimension N2 (profiled rail systems) [mm] | 11 |
| Dimension S [mm] | 4.3 |
