Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Guide rail mounting | Guide rail cover | Max. length Lmax [mm] | Number of sections |
|---|---|---|---|---|---|

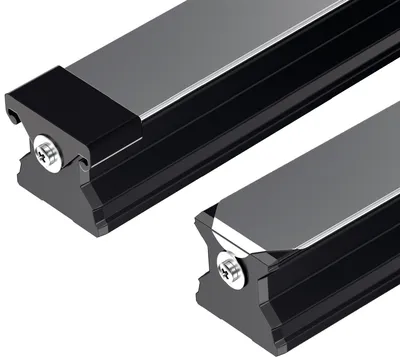

| R184535378 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 8-piece |
| R184535377 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 7-piece |
| R184535376 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 6-piece |
| R184535375 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 5-piece |
| R184535374 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 4-piece |
| R184535373 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 3-piece |
| R184535372 | 35 | For bolting from above | With cover strip and protective caps | 3996.0 | 2-piece |
| R184535371 | 35 | For bolting from above | With cover strip and protective caps | 5996.0 | 1-piece |

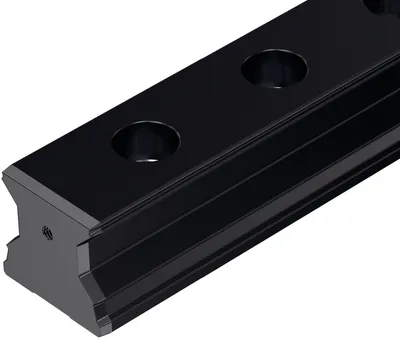

| R184538348 | 35 | For bolting from above | Without cover strip | 3996.0 | 8-piece |
| R184538347 | 35 | For bolting from above | Without cover strip | 3996.0 | 7-piece |
| R184538346 | 35 | For bolting from above | Without cover strip | 3996.0 | 6-piece |
| R184538345 | 35 | For bolting from above | Without cover strip | 3996.0 | 5-piece |
| R184538344 | 35 | For bolting from above | Without cover strip | 3996.0 | 4-piece |
| R184538343 | 35 | For bolting from above | Without cover strip | 3996.0 | 3-piece |
| R184538342 | 35 | For bolting from above | Without cover strip | 3996.0 | 2-piece |
| R184538341 | 35 | For bolting from above | Without cover strip | 5996.0 | 1-piece |

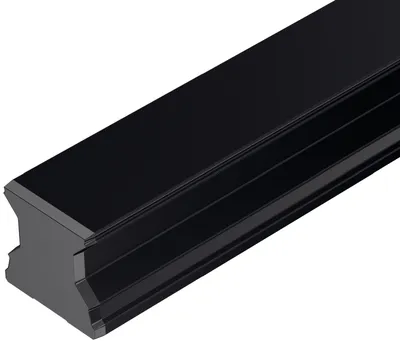

| R184721348 | 25 | For bolting from below | Without cover strip | 3986.0 | 8-piece |
| R184721347 | 25 | For bolting from below | Without cover strip | 3986.0 | 7-piece |
| R184721346 | 25 | For bolting from below | Without cover strip | 3986.0 | 6-piece |
| R184721345 | 25 | For bolting from below | Without cover strip | 3986.0 | 5-piece |
| R184721344 | 25 | For bolting from below | Without cover strip | 3986.0 | 4-piece |
| R184721343 | 25 | For bolting from below | Without cover strip | 3986.0 | 3-piece |
| R184721342 | 25 | For bolting from below | Without cover strip | 3986.0 | 2-piece |
| R184721341 | 25 | For bolting from below | Without cover strip | 3986.0 | 1-piece |
Common to all listed parts
| Version | Roller rail systems |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
