Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Guide rail cover | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of sections |
|---|---|---|---|---|

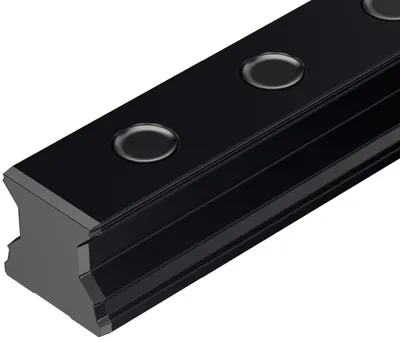

| R184541348 | Plastic caps | 3986.0 | 137.0 | 8-piece |
| R184541347 | Plastic caps | 3986.0 | 137.0 | 7-piece |
| R184541346 | Plastic caps | 3986.0 | 137.0 | 6-piece |
| R184541345 | Plastic caps | 3986.0 | 137.0 | 5-piece |
| R184541344 | Plastic caps | 3986.0 | 137.0 | 4-piece |
| R184541343 | Plastic caps | 3986.0 | 137.0 | 3-piece |
| R184541342 | Plastic caps | 3986.0 | 137.0 | 2-piece |
| R184541341 | Plastic caps | 5981.0 | 137.0 | 1-piece |

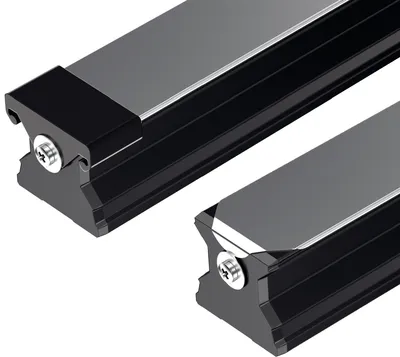

| R184545378 | With cover strip and protective caps | 3986.0 | 141.0 | 8-piece |
| R184545377 | With cover strip and protective caps | 3986.0 | 141.0 | 7-piece |
| R184545376 | With cover strip and protective caps | 3986.0 | 141.0 | 6-piece |
| R184545375 | With cover strip and protective caps | 3986.0 | 141.0 | 5-piece |
| R184545374 | With cover strip and protective caps | 3986.0 | 141.0 | 4-piece |
| R184545373 | With cover strip and protective caps | 3986.0 | 141.0 | 3-piece |
| R184545372 | With cover strip and protective caps | 3986.0 | 141.0 | 2-piece |
| R184545371 | With cover strip and protective caps | 5981.0 | 141.0 | 1-piece |

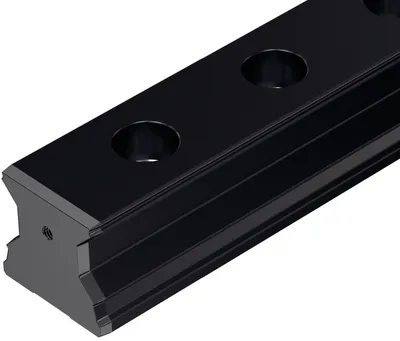

| R184548348 | Without cover strip | 3986.0 | 141.0 | 8-piece |
| R184548347 | Without cover strip | 3986.0 | 141.0 | 7-piece |
| R184548346 | Without cover strip | 3986.0 | 141.0 | 6-piece |
| R184548345 | Without cover strip | 3986.0 | 141.0 | 5-piece |
| R184548344 | Without cover strip | 3986.0 | 141.0 | 4-piece |
| R184548343 | Without cover strip | 3986.0 | 141.0 | 3-piece |
| R184548342 | Without cover strip | 3986.0 | 141.0 | 2-piece |
| R184548341 | Without cover strip | 5981.0 | 141.0 | 1-piece |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 45 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Number of holes nB (profiled rail systems) | 76 |
| Mass m (kg/m) [kg/m] | 10.3 |
