Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Guide rail mounting | Guide rail cover | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of sections |
|---|---|---|---|---|---|

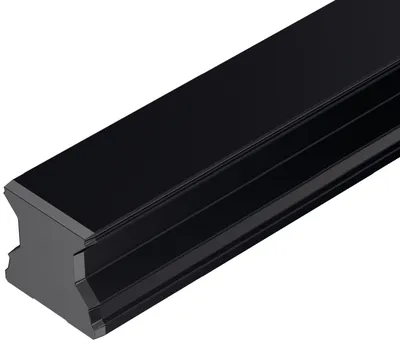

| R184731348 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 8-piece |
| R184731347 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 7-piece |
| R184731346 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 6-piece |
| R184731345 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 5-piece |
| R184731344 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 4-piece |
| R184731343 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 3-piece |
| R184731342 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 2-piece |
| R184731341 | For bolting from below | Without cover strip | 3996.0 | 104.0 | 1-piece |

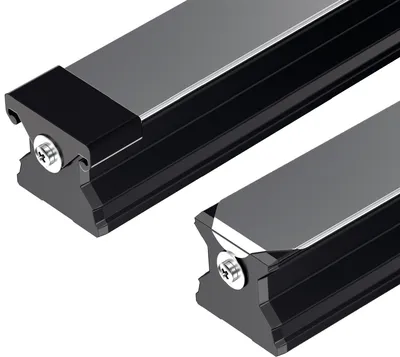

| R184532378 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 8-piece |
| R184532377 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 7-piece |
| R184532376 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 6-piece |
| R184532375 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 5-piece |
| R184532374 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 4-piece |
| R184532373 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 3-piece |
| R184532372 | For bolting from above | With cover strip and strip clamps | — | 112.0 | 2-piece |
| R184532371 | For bolting from above | With cover strip and strip clamps | 5996.0 | 112.0 | 1-piece |

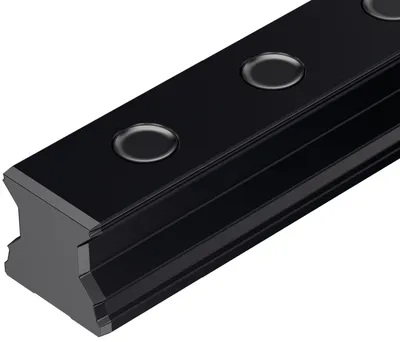

| R184531348 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 8-piece |
| R184531347 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 7-piece |
| R184531346 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 6-piece |
| R184531345 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 5-piece |
| R184531344 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 4-piece |
| R184531343 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 3-piece |
| R184531342 | For bolting from above | Plastic caps | 3996.0 | 104.0 | 2-piece |
| R184531341 | For bolting from above | Plastic caps | 5996.0 | 104.0 | 1-piece |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 35 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Number of holes nB (profiled rail systems) | 100 |
| Mass m (kg/m) [kg/m] | 6.3 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
