Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

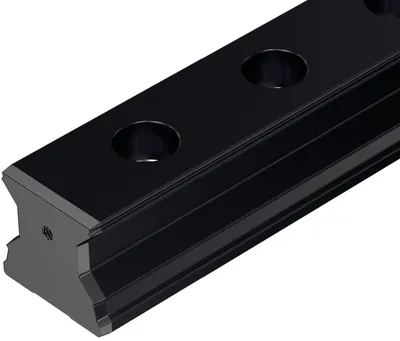

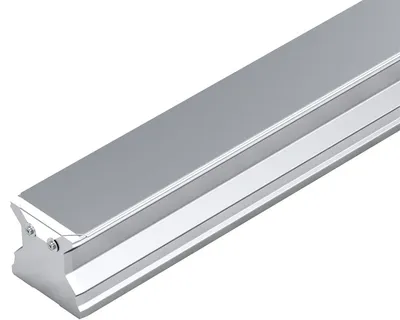

| MPN | Nominal size [mm] | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of holes nB (profiled rail systems) | Number of sections |
|---|---|---|---|---|---|
| R184528348 | 25 | 3986.0 | 86.0 | 133 | 8-piece |
| R184528347 | 25 | 3986.0 | 86.0 | 133 | 7-piece |
| R184528346 | 25 | 3986.0 | 86.0 | 133 | 6-piece |
| R184528345 | 25 | 3986.0 | 86.0 | 133 | 5-piece |
| R184528344 | 25 | 3986.0 | 86.0 | 133 | 4-piece |
| R184528343 | 25 | 3986.0 | 86.0 | 133 | 3-piece |
| R184528342 | 25 | 3986.0 | 86.0 | 133 | 2-piece |
| R184528341 | 25 | 3986.0 | 86.0 | 133 | 1-piece |
| R186536378 | 125 | 2000.0 | 320.0 | 22 | 8-piece |
| R186536377 | 125 | 2000.0 | 320.0 | 22 | 7-piece |
| R186536376 | 125 | 2000.0 | 320.0 | 22 | 6-piece |
| R186536375 | 125 | 2000.0 | 320.0 | 22 | 5-piece |
| R186536374 | 125 | 2000.0 | 320.0 | 22 | 4-piece |
| R186536373 | 125 | 2000.0 | 320.0 | 22 | 3-piece |
| R186536372 | 125 | 2000.0 | 320.0 | 22 | 2-piece |
| R186536371 | 125 | 2000.0 | 320.0 | 22 | 1-piece |
| R186526378 | 100 | 2500.0 | 280.0 | 35 | 8-piece |
| R186526377 | 100 | 2500.0 | 280.0 | 35 | 7-piece |
| R186526376 | 100 | 2500.0 | 280.0 | 35 | 6-piece |
| R186526375 | 100 | 2500.0 | 280.0 | 35 | 5-piece |
| R186526374 | 100 | 2500.0 | 280.0 | 35 | 4-piece |
| R186526373 | 100 | 2500.0 | 280.0 | 35 | 3-piece |
| R186526372 | 100 | 2500.0 | 280.0 | 35 | 2-piece |
| R186526371 | 100 | 2500.0 | 280.0 | 35 | 1-piece |
Common to all listed parts
| Version | Roller rail systems |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
