Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

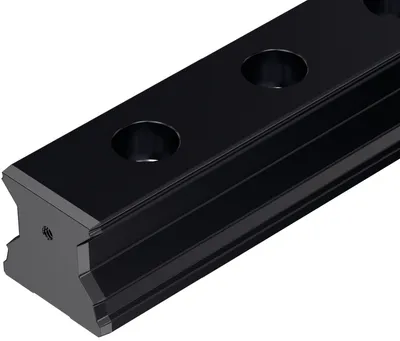

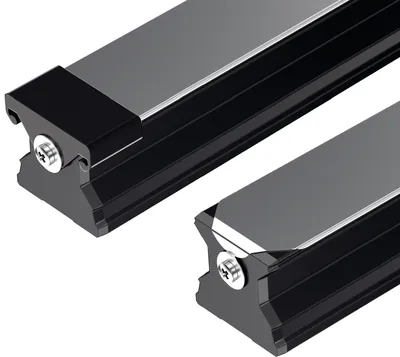

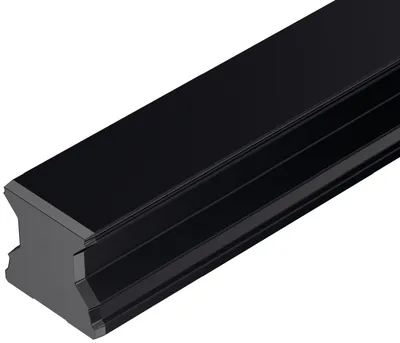

| MPN | Nominal size [mm] | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of sections | Dimension N7 (profiled rail systems) [mm] |
|---|---|---|---|---|---|
| R184558348 | 55 | 3956.0 | 160.0 | 8-piece | 30 |
| R184558347 | 55 | 3956.0 | 160.0 | 7-piece | 30 |
| R184558346 | 55 | 3956.0 | 160.0 | 6-piece | 30 |
| R184558345 | 55 | 3956.0 | 160.0 | 5-piece | 30 |
| R184558344 | 55 | 3956.0 | 160.0 | 4-piece | 30 |
| R184558343 | 55 | 3956.0 | 160.0 | 3-piece | 30 |
| R184558342 | 55 | 3956.0 | 160.0 | 2-piece | 30 |
| R184558341 | 55 | 5936.0 | 160.0 | 1-piece | 30 |
| R184741348 | 45 | 3986.0 | 137.0 | 8-piece | 19 |
| R184741347 | 45 | 3986.0 | 137.0 | 7-piece | 19 |
| R184741346 | 45 | 3986.0 | 137.0 | 6-piece | 19 |
| R184741345 | 45 | 3986.0 | 137.0 | 5-piece | 19 |
| R184741344 | 45 | 3986.0 | 137.0 | 4-piece | 19 |
| R184741343 | 45 | 3986.0 | 137.0 | 3-piece | 19 |
| R184741342 | 45 | 3986.0 | 137.0 | 2-piece | 19 |
| R184741341 | 45 | 3986.0 | 137.0 | 1-piece | 19 |
| R184542378 | 45 | — | 141.0 | 8-piece | 12.5 |
| R184542377 | 45 | — | 141.0 | 7-piece | 12.5 |
| R184542376 | 45 | — | 141.0 | 6-piece | 12.5 |
| R184542375 | 45 | — | 141.0 | 5-piece | 12.5 |
| R184542374 | 45 | — | 141.0 | 4-piece | 12.5 |
| R184542373 | 45 | — | 141.0 | 3-piece | 12.5 |
| R184542372 | 45 | — | 141.0 | 2-piece | 12.5 |
| R184542371 | 45 | 5981.0 | 141.0 | 1-piece | 12.5 |
Common to all listed parts
| Version | Roller rail systems |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
