High-precision ball runner block BSHP Parts

Bosch Rexroth R16228122Y – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-P-1

Bosch Rexroth R162281222 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-P-1

Bosch Rexroth R162281220 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-P-1

Bosch Rexroth R16228142Z – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth R16228142Y – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth R162281423 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth R162281422 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth R162281421 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth R162281420 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-N-1

Bosch Rexroth R16228132Z – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth R16228132Y – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth R162281323 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth R162281322 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth R162281321 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth R162281320 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C1-H-1

Bosch Rexroth R162289423 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-N-1

Bosch Rexroth R162289422 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-N-1

Bosch Rexroth R162289420 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-N-1

Bosch Rexroth R162289324 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-H-2

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-H-2

Bosch Rexroth R162289322 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-H-1

Bosch Rexroth R162289320 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C0-H-1

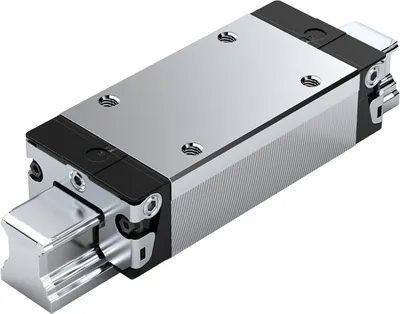

Bosch Rexroth R16238382Z – BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C3-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C3-X-1

Bosch Rexroth R16238382Y – BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C3-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C3-X-1

Bosch Rexroth R162383822 – BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C3-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C3-X-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Accuracy class	Weight [kg]	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]	Static load capacity C0 [N]
R16228122Y	P - Precise	0.35	28000.0	22200.0	27700.0
R162281222	P - Precise	0.35	28000.0	22200.0	27700.0
R162281220	P - Precise	0.36	29500.0	23400.0	29800.0
R16228142Z	N - Normal	0.35	29500.0	23400.0	29800.0
R16228142Y	N - Normal	0.35	28000.0	22200.0	27700.0
R162281423	N - Normal	0.35	28000.0	22200.0	27700.0
R162281422	N - Normal	0.34	28000.0	22200.0	27700.0
R162281421	N - Normal	0.35	29500.0	23400.0	29800.0
R162281420	N - Normal	0.36	29500.0	23400.0	29800.0
R16228132Z	H - Highly accurate	0.35	29500.0	23400.0	29800.0
R16228132Y	H - Highly accurate	0.35	28000.0	22200.0	27700.0
R162281323	H - Highly accurate	0.35	28000.0	22200.0	27700.0
R162281322	H - Highly accurate	0.36	28000.0	22200.0	27700.0
R162281321	H - Highly accurate	0.35	29500.0	23400.0	29800.0
R162281320	H - Highly accurate	0.35	29500.0	23400.0	29800.0
R162289423	N - Normal	0.35	28000.0	22200.0	27700.0
R162289422	N - Normal	0.35	28000.0	22200.0	27700.0
R162289420	N - Normal	0.35	29500.0	23400.0	29800.0
R162289324	H - Highly accurate	0.35	29500.0	23400.0	29800.0
R162289322	H - Highly accurate	0.35	28000.0	22200.0	27700.0
R162289320	H - Highly accurate	0.36	29500.0	23400.0	29800.0
R16238382Z	XP - Extra precise	0.45	37300.0	29600.0	41800.0
R16238382Y	XP - Extra precise	0.45	35500.0	28200.0	38800.0
R162383822	XP - Extra precise	0.45	35500.0	28200.0	38800.0

Common to all listed parts

Nominal size [mm]	20
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	44.0
Height of runner block [mm]	25.35
Height runner block with guide rail [mm]	30.0
Maximum acceleration rate amax [m/s²]	500.0
