High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] | Dynamic torsional moment load capacity Mt100 [Nm] |
|---|---|---|---|---|---|
| R16238142Z | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R16238142Y | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162381423 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162381422 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162381421 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R162381420 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |

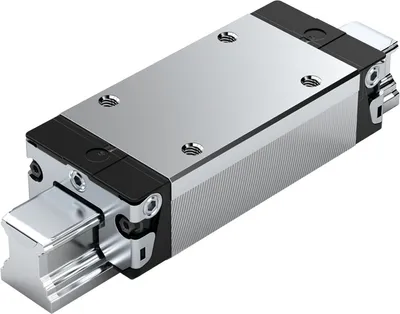

| R16238132Z | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R16238132Y | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162381323 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162381322 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162381321 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R162381320 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R162389422 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162389420 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R162389322 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R162389320 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |

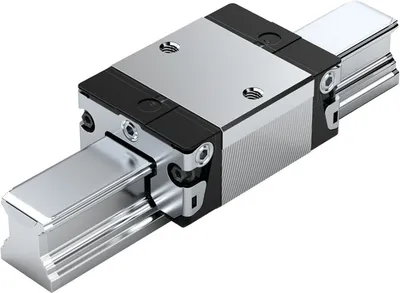

| R16668142Z | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R16668142Y | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R166681423 | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R166681422 | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R166681421 | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R166681420 | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R16668132Z | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R16668132Y | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 20 |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 44.0 |
| Height of runner block [mm] | 25.35 |
| Height runner block with guide rail [mm] | 30.0 |
