High-precision ball runner block BSHP Parts

Bosch Rexroth

R16722132Y

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C1-H-1

Bosch Rexroth

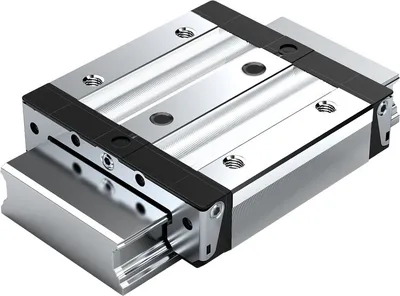

R167221322

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C1-H-1

Bosch Rexroth

R167221320

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C1-H-1

Bosch Rexroth

R167229422

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C0-N-1

Bosch Rexroth

R167229420

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C0-N-1

Bosch Rexroth

R167229322

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C0-H-1

Bosch Rexroth

R167229320

BALL RUNNER BLOCK CARBON STEEL KWD-025-CNS-C0-H-1

Bosch Rexroth

R16712122Z

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-P-1

Bosch Rexroth

R16712122Y

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-P-1

Bosch Rexroth

R167121222

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-P-1

Bosch Rexroth

R167121220

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-P-1

Bosch Rexroth

R16712142Z

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-N-1

Bosch Rexroth

R16712142Y

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-N-1

Bosch Rexroth

R167121422

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-N-1

Bosch Rexroth

R167121420

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-N-1

Bosch Rexroth

R16712132Z

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-H-1

Bosch Rexroth

R16712132Y

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-H-1

Bosch Rexroth

R167121322

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-H-1

Bosch Rexroth

R167121320

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C1-H-1

Bosch Rexroth

R167129422

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C0-N-1

Bosch Rexroth

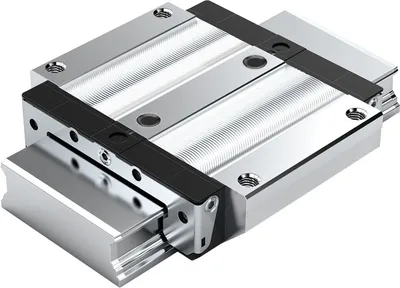

R167129420

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C0-N-1

Bosch Rexroth

R167129322

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C0-H-1

Bosch Rexroth

R167129320

BALL RUNNER BLOCK CARBON STEEL KWD-025-BNS-C0-H-1

Bosch Rexroth

R16228382Z

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C3-X-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Preload class	Accuracy class	Width of runner block [mm]	Weight [kg]
R16722132Y	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	100.0	1.5
R167221322	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	100.0	1
R167221320	CNS - compact, normal, standard height	C1 - Low preload	H - Highly accurate	100.0	1.12
R167229422	CNS - compact, normal, standard height	C0 - Without preload (clearance)	N - Normal	100.0	1.12
R167229420	CNS - compact, normal, standard height	C0 - Without preload (clearance)	N - Normal	100.0	1.12
R167229322	CNS - compact, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	100.0	1.15
R167229320	CNS - compact, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	100.0	1.13
R16712122Z	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	120.0	1.3
R16712122Y	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	120.0	1.33
R167121222	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	120.0	1.35
R167121220	BNS - wide, normal, standard height	C1 - Low preload	P - Precise	120.0	1.35
R16712142Z	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	120.0	1.35
R16712142Y	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	120.0	1.32
R167121422	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	120.0	1.34
R167121420	BNS - wide, normal, standard height	C1 - Low preload	N - Normal	120.0	1.34
R16712132Z	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	120.0	1.35
R16712132Y	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	120.0	1.33
R167121322	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	120.0	1.32
R167121320	BNS - wide, normal, standard height	C1 - Low preload	H - Highly accurate	120.0	1.35
R167129422	BNS - wide, normal, standard height	C0 - Without preload (clearance)	N - Normal	120.0	1.35
R167129420	BNS - wide, normal, standard height	C0 - Without preload (clearance)	N - Normal	120.0	1.3
R167129322	BNS - wide, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	120.0	1.3
R167129320	BNS - wide, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	120.0	1.33
R16228382Z	SNS - slimline, normal, standard height	C3 - High preload	XP - Extra precise	44.0	0.35

Common to all listed parts

Version	Ball rail system
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Lubrication	Pre-lubricated, preserved
Maximum acceleration rate amax [m/s²]	500.0
Maximum permissible linear speed vmax [m/s]	5.0
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
