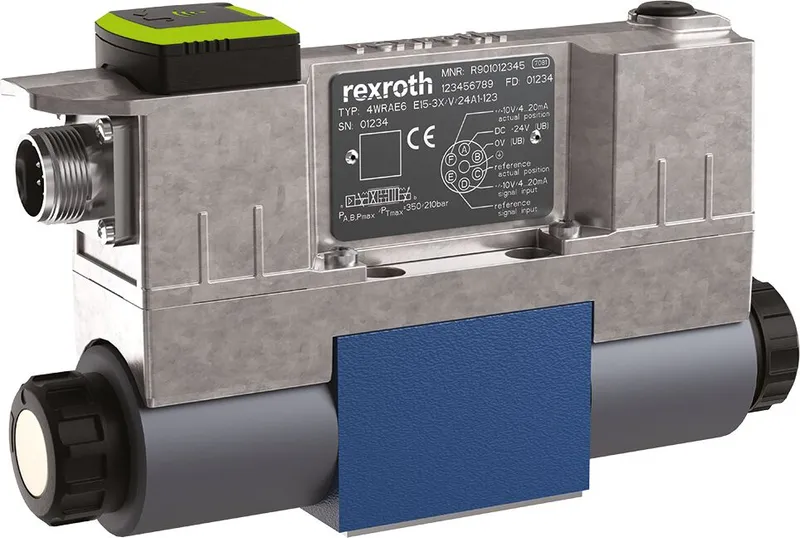

Bosch Rexroth R901570738
PROPORTIONAL DIRECTIONAL VALVE 4WRAE6EA30-3X/V/24F1/B
- MPN
- R901570738
- Category
- Proportional directional valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901570738?
Industrial hydraulic valve in a high performance range. Reliable control of the oil flow direction according to hydraulic symbol.
Spool valve
Direct actuated
With digital on-board electronics and Bluetooth interface
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRA |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 42.0 |
| Spool symbol | Symbol EA |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 26.0 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA; Bluetooth |
| Conformity description | UKCA – Electromagnetic compatibility (EMC) SI2016/1091; CE – Electromagnetic compatibility (EMC) directive 2014/30/EU |
| Conformity | CE; UKCA |
| Hydraulic fluid | HDFR; HEES; HEPG; HETG; HFDU; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 1.8 |
