SIRIUS 3RF2 solid-state relays and solid-state contactors Parts
















Compare SIRIUS 3RF2 solid-state relays and solid-state contactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — _4 of the accessories that can be ordered | Net Weight | operational current — according to UL 508 rated value | width | operational current according to UL 508 rated value |
|---|---|---|---|---|---|
| 3RF2310-1AA24 | 3RF2920-0GA36 | 0.128 kg | 9.6 A | 22.5 mm | 9.6 A |

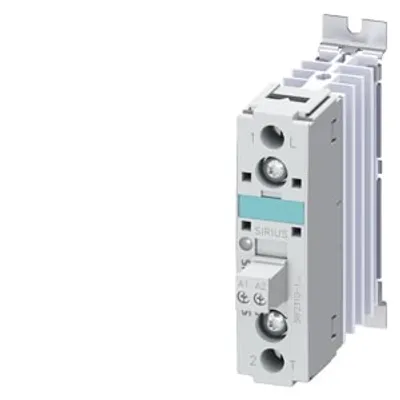

| 3RF2310-1AA22 | 3RF2920-0GA33 | 0.126 kg | 9.6 A | 22.5 mm | 9.6 A |

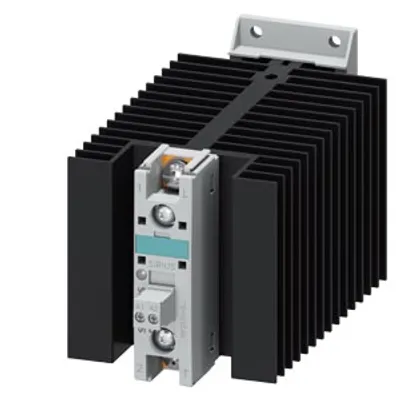

| 3RF2370-3AA04 | 3RF2990-0GA16 | 0.624 kg | 62 A | 80 mm | 62 A |
| 3RF2370-3AA02 | 3RF2990-0GA13 | 0.624 kg | 62 A | 80 mm | 62 A |
| 3RF2350-1BA44 | 3RF2950-0GA16 | 0.41 kg | 45 A | 67.5 mm | 45 A |
| 3RF2350-1BA26 | 3RF2950-0GA36 | 0.423 kg | 25 A | 67.5 mm | 25 A |

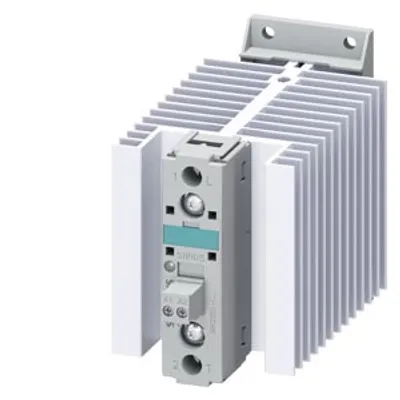

| 3RF2350-1BA06 | 3RF2950-0GA16 | 0.44 kg | 25 A | 67.5 mm | 25 A |
| 3RF2340-3AA26 | 3RF2950-0GA36 | 0.425 kg | 36 A | 67 mm | 36 A |

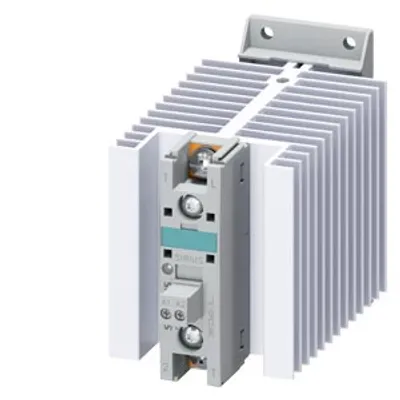

| 3RF2340-3AA24 | 3RF2950-0GA36 | 0.42 kg | 36 A | 67 mm | 36 A |
| 3RF2340-3AA22 | 3RF2950-0GA33 | 0.425 kg | 36 A | 67 mm | 36 A |
| 3RF2340-3AA06 | 3RF2950-0GA16 | 0.419 kg | 36 A | 67 mm | 36 A |
| 3RF2340-3AA04 | 3RF2950-0GA16 | 0.425 kg | 36 A | 67 mm | 36 A |
| 3RF2340-3AA02 | 3RF2950-0GA13 | 0.44 kg | 36 A | 67 mm | 36 A |

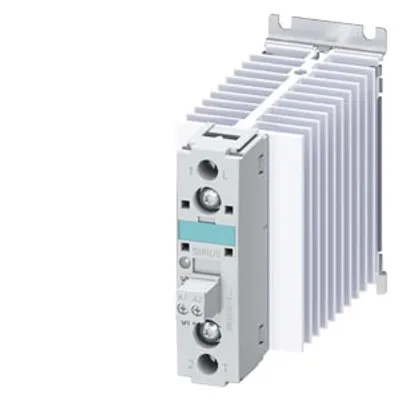

| 3RF2340-1DA04-0KN0 | — | 0.268 kg | 30 A | 45 mm | 30 A |
Common to all listed parts
| product designation | solid-state contactor |
| design of the product | 1-pole |
| product type designation | 3RF23 |
| degree of pollution | 3 |
| surge voltage resistance of main circuit rated value | 6 kV |
| reference code according to IEC 81346-2 | Q |
| type of voltage of the operating voltage | AC |
| reverse current of the thyristor | 10 mA |
