Siemens 3RF2340-1DA04-0KN0

Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-460 V / 24 V DC low power short circuit-proof up…

MPN
3RF2340-1DA04-0KN0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

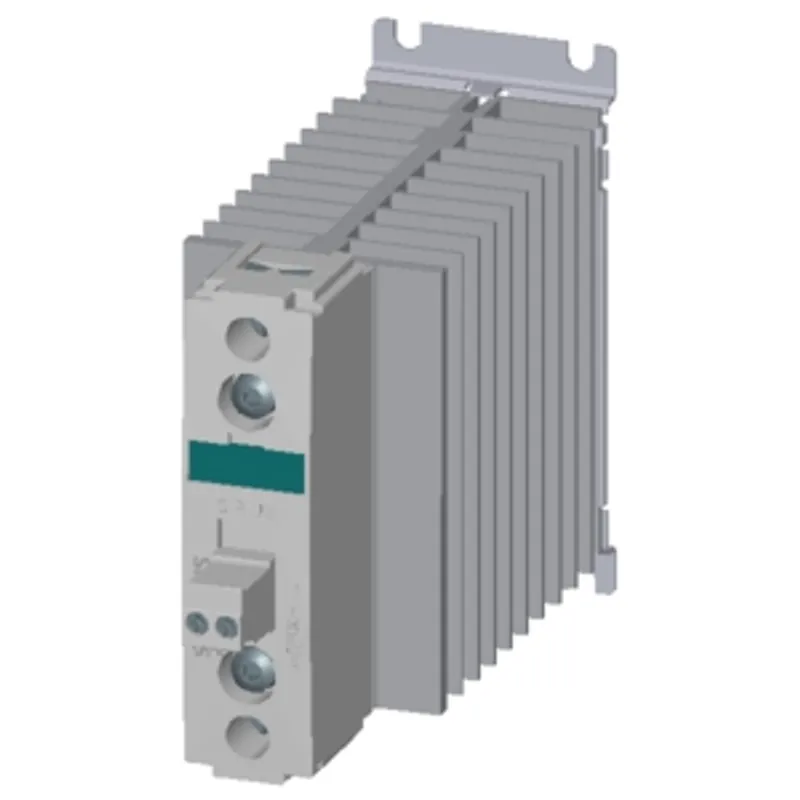

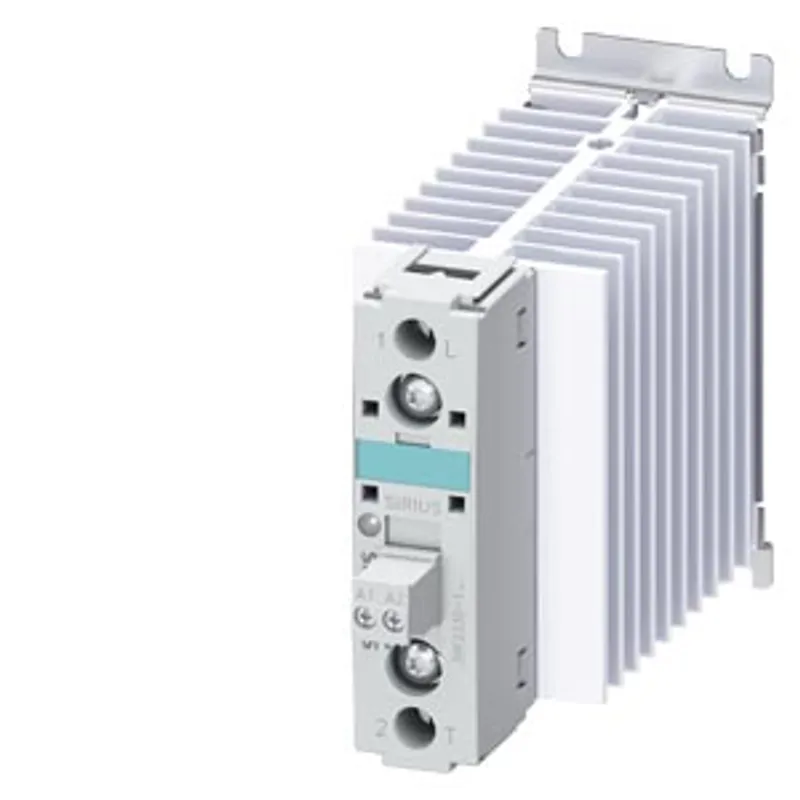

What is the Siemens 3RF2340-1DA04-0KN0?

Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-460 V / 24 V DC low power short circuit-proof up to 25 A with B miniature circuit breaker

Specifications

General

product brand nameSIRIUS
product designationsolid-state contactor
design of the product1-pole
product type designation3RF23

General technical data

product functionshort-circuit resistant with B-automatic device
degree of pollution3
surge voltage resistance of main circuit rated value6 kV
protection class IP on the front according to IEC 60529IP20
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)05/28/2009
SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4
Net Weight0.268 kg

Main circuit

type of voltage of the operating voltageAC
operating voltage — at AC — at 50 Hz rated value48 ... 460 V
operating voltage — at AC — at 60 Hz rated value48 ... 460 V
operating range relative to the operating voltage at AC — at 50 Hz40 ... 506 V
operating range relative to the operating voltage at AC — at 60 Hz40 ... 506 V
operational current — at AC-1 at 400 V rated value40 A
operational current — at AC-51 rated value40 A
operational current — at AC-51 according to IEC 60947-4-333 A
operational current — according to UL 508 rated value30 A
operational current minimum500 mA
blocking voltage at the thyristor for main contacts maximum permissible1 200 V
reverse current of the thyristor10 mA

Control circuit/ Control

type of voltage of the control supply voltageDC
control supply voltage 1 at DC rated value maximum permissible30 V
control supply voltage 1 at DC15 ... 24 V
control supply voltage at DC — initial value for signal <1> detection15 V
control supply voltage at DC — full-scale value for signal<0> recognition5 V
ON-delay time1 ms; additionally max. one half-wave
OFF-delay time1 ms; additionally max. one half-wave

Installation/ mounting/ dimensions

fastening methodscrew fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715
height100 mm
width45 mm
depth135.5 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes
type of electrical connection — for main current circuitscrew-type terminals
type of electrical connection — for auxiliary and control circuitscrew-type terminals
stripped length of the cable — for main contacts10 mm
stripped length of the cable — for auxiliary and control contacts7 mm

UL/CSA ratings

operational current according to UL 508 rated value30 A
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Electromagnetic compatibility

conducted interference — due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2
conducted interference — due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2
conducted interference — due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2
conducted interference — due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1
field-based interference according to IEC 61000-4-380 MHz ... 1 GHz 10 V/m, behavior criterion 1
electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2
conducted HF interference emissions according to CISPR11Class A for industrial environment
field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments

Short-circuit protection, design of the fuse link

manufacturer's article number — of gS fuse for semiconductor protection at NH design usable3NE1802-0
manufacturer's article number — of full range R fuse link for semiconductor protection at cylindrical design usable5SE1350
manufacturer's article number — of back-up R fuse link for semiconductor protection at NH design usable3NE8017-1
manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450
manufacturer's article number — of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2280
manufacturer's article number of the gG fuse — at cylindrical design 14 x 51 mm usable3NW6112-1; These fuses have a smaller rated current than the semiconductor relays
manufacturer's article number of the gG fuse — at cylindrical design 14 x 51 mm usable noteThese fuses have a smaller rated current than the semiconductor relays
manufacturer's article number of the gG fuse — at cylindrical design 22 x 58 mm usable3NW6212-1; These fuses have a smaller rated current than the semiconductor relays
manufacturer's article number of the gG fuse — at cylindrical design 22 x 58 mm usable noteThese fuses have a smaller rated current than the semiconductor relays
manufacturer's article number — of DIAZED fuse usable5SB4111; These fuses have a smaller rated current than the semiconductor relays
manufacturer's article number — of DIAZED fuse usable noteThese fuses have a smaller rated current than the semiconductor relays
manufacturer's article number — of NEOZED fuse usable5SE2335; These fuses have a smaller rated current than the semiconductor relays

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

3RF2340-1DA04-0KN0: frequently asked questions

When can 3RF2340-1DA04-0KN0 be shipped?

3RF2340-1DA04-0KN0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RF2340-1DA04-0KN0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RF2340-1DA04-0KN0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RF2340-1DA04-0KN0, subject to availability and destination.
