SIRIUS 3RF2 solid-state relays and solid-state contactors Parts
























Compare SIRIUS 3RF2 solid-state relays and solid-state contactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — _4 of the accessories that can be ordered | power loss [W] for rated value of the current — at AC in hot operating state | Net Weight | operational current — according to UL 508 rated value | operational current according to UL 508 rated value |
|---|---|---|---|---|---|
| 3RF2320-1AA26 | 3RF2920-0GA36 | 20 W | 0.172 kg | 17.6 A | 17.6 A |

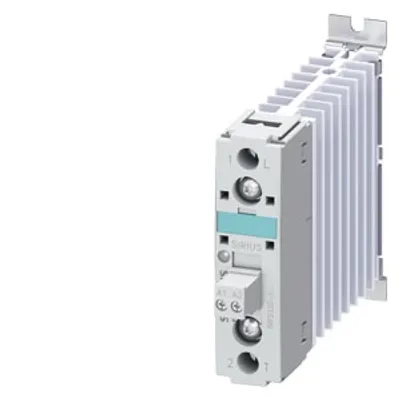

| 3RF2320-1AA24 | 3RF2920-0GA36 | 20 W | 0.172 kg | 17.6 A | 17.6 A |

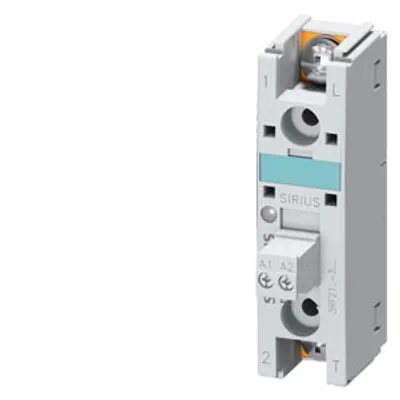

| 3RF2190-3AA06 | 3RF2990-0GA16 | 118 W | 0.06 kg | 80 A | 80 A |
| 3RF2190-3AA04 | 3RF2990-0GA16 | 118 W | 0.059 kg | 80 A | 80 A |
| 3RF2190-3AA02 | 3RF2990-0GA13 | 118 W | 0.058 kg | 80 A | 80 A |
| 3RF2190-2AA24 | — | 118 W | 0.048 kg | 20 A | 20 A |

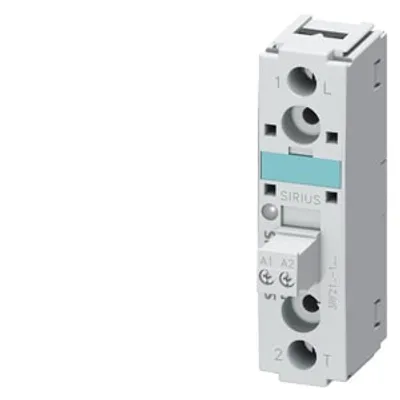

| 3RF2170-1BA04 | 3RF2990-0GA16 | 94 W | 0.058 kg | 50 A | 50 A |
| 3RF2170-1AA45 | 3RF2990-0GA16 | 94 W | 0.059 kg | 50 A | 50 A |
| 3RF2170-1AA26 | 3RF2990-0GA36 | 94 W | 0.062 kg | 50 A | 50 A |
| 3RF2170-1AA24 | 3RF2990-0GA36 | 94 W | 0.06 kg | 50 A | 50 A |
| 3RF2170-1AA22 | 3RF2990-0GA33 | 94 W | 0.058 kg | 50 A | 50 A |
| 3RF2070-1AA24 | — | 94 W | 0.068 kg | 50 A | 50 A |
| 3RF2070-1AA22 | — | 94 W | 0.072 kg | 50 A | 50 A |
| 3RF2070-1AA06 | — | 94 W | 0.069 kg | 50 A | 50 A |

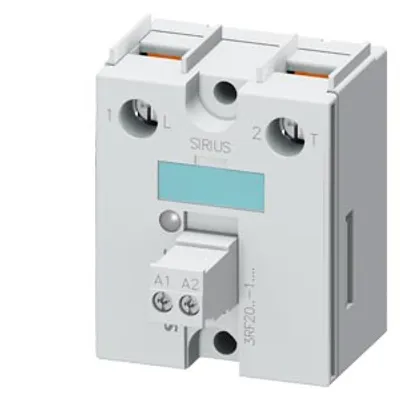

| 3RF2070-1AA04 | — | 94 W | 0.069 kg | 50 A | 50 A |
| 3RF2030-1AA26 | — | 44.2 W | 0.068 kg | 30 A | 30 A |
| 3RF2030-1AA24 | — | 44.2 W | 0.069 kg | 30 A | 30 A |
| 3RF2020-1AA22 | — | 28.6 W | 0.069 kg | 20 A | 20 A |
| 3RF2310-1BA04 | 3RF2920-0GA16 | 11 W | 0.125 kg | 6 A | 6 A |
| 3RF2310-1BA02 | 3RF2920-0GA13 | 11 W | 0.126 kg | 6 A | 6 A |
| 3RF2310-1AA45 | 3RF2920-0GA16 | 11 W | 129.58 g | 9.6 A | 9.6 A |
| 3RF2310-1AA44 | 3RF2920-0GA16 | 11 W | 0.125 kg | 9.6 A | 9.6 A |
| 3RF2310-1AA26 | 3RF2920-0GA36 | 11 W | 0.13 kg | 9.6 A | 9.6 A |
Common to all listed parts
| design of the product | 1-pole |
| insulation voltage rated value | 600 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 1 |
| number of NO contacts for main contacts | 1 |
| number of NC contacts for main contacts | 0 |
