SIRIUS 3RF2 solid-state relays and solid-state contactors Parts
























Compare SIRIUS 3RF2 solid-state relays and solid-state contactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | power loss [W] for rated value of the current — without load current share typical | Net Weight | operational current according to UL 508 rated value |
|---|---|---|---|---|---|

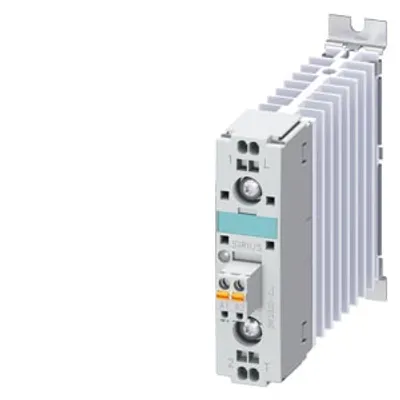

| 3RF2320-2AA02 | 20 W | 20 W | 0.4 W | 0.162 kg | 17.6 A |
| 3RF2320-1DA44 | 20 W | 20 W | 0.5 W | 0.172 kg | 17.6 A |
| 3RF2130-1AA45 | 44.2 W | 44.2 W | 0.5 W | 0.059 kg | 30 A |
| 3RF2130-1AA42 | 44.2 W | 44.2 W | 0.5 W | 0.06 kg | 30 A |
| 3RF2130-1AA26 | 44.2 W | 44.2 W | 3.5 W | 0.062 kg | 30 A |
| 3RF2190-2AA06 | 118 W | 118 W | 0.4 W | 0.088 kg | 20 A |

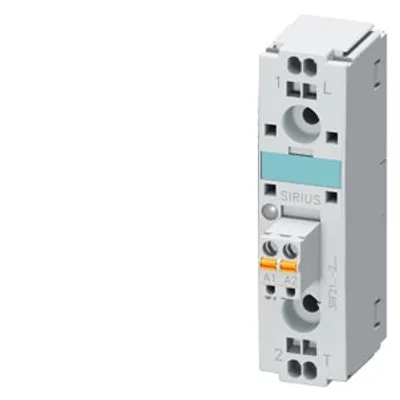

| 3RF2190-2AA04 | 118 W | 118 W | 0.4 W | 0.058 kg | 20 A |
| 3RF2190-2AA02 | 118 W | 118 W | 0.4 W | 0.057 kg | 20 A |
| 3RF2190-1BA04 | — | — | — | 0.061 kg | 50 A |
| 3RF2190-1AA45 | 118 W | 118 W | 0.5 W | 0.057 kg | 50 A |

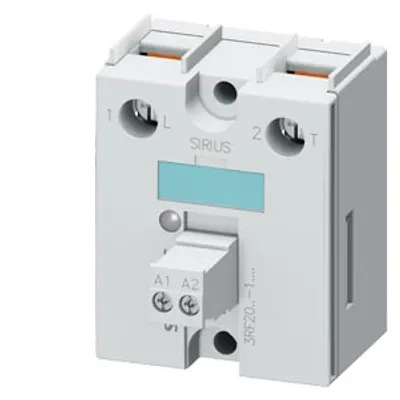

| 3RF2050-1AA24 | 66 W | 66 W | 3.5 W | 0.068 kg | 50 A |

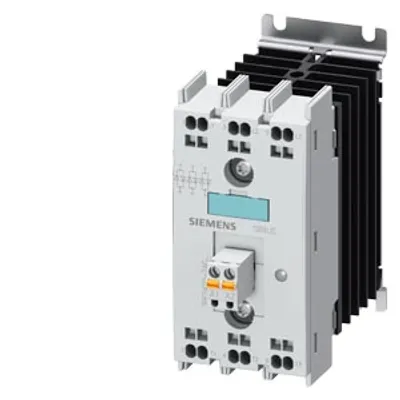

| 3RF2410-2AC55 | 31 W | 10.33 W | 3.5 W | 0.259 kg | 7 A |
| 3RF2410-2AC45 | 31 W | 10.33 W | 0.9 W | 0.27 kg | 7 A |

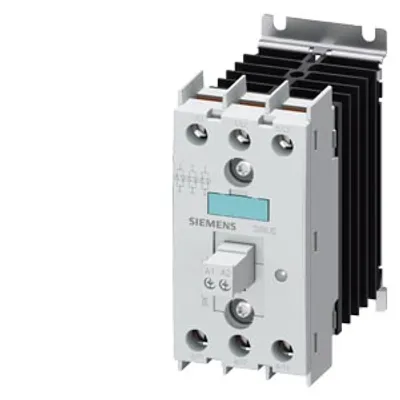

| 3RF2410-1AC45 | 31 W | 10.33 W | 0.9 W | 280.08 g | 7 A |
| 3RF2410-1AC35 | 31 W | 10.33 W | 1.9 W | 0.28 kg | 7 A |
| 3RF2410-1AB55 | 23 W | 7.67 W | 3.5 W | 0.274 kg | 7 A |
| 3RF2410-1AB45 | 23 W | 7.67 W | 0.9 W | 0.27 kg | 7 A |

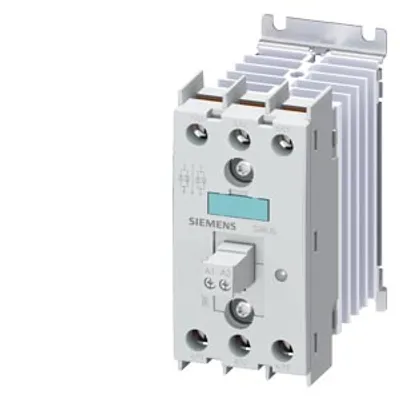

| 3RF2410-1AB35 | 23 W | 7.67 W | 1.9 W | 0.266 kg | 7 A |

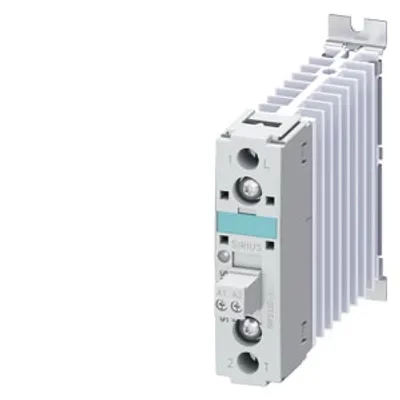

| 3RF2320-1BA04 | 20 W | 20 W | 0.4 W | 0.162 kg | 12 A |
| 3RF2320-1BA02 | 20 W | 20 W | 0.4 W | 0.162 kg | 12 A |
| 3RF2320-1AA65 | 20 W | 20 W | 1.1 W | 0.174 kg | — |
| 3RF2320-1AA45 | 20 W | 20 W | 0.6 W | 0.171 kg | 17.6 A |
| 3RF2320-1AA44 | 20 W | 20 W | 0.6 W | 0.162 kg | 17.6 A |
Common to all listed parts
| insulation voltage rated value | 600 V |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | Q |
| number of NC contacts for main contacts | 0 |
| type of voltage of the operating voltage | AC |
