Danfoss 129-0548-002

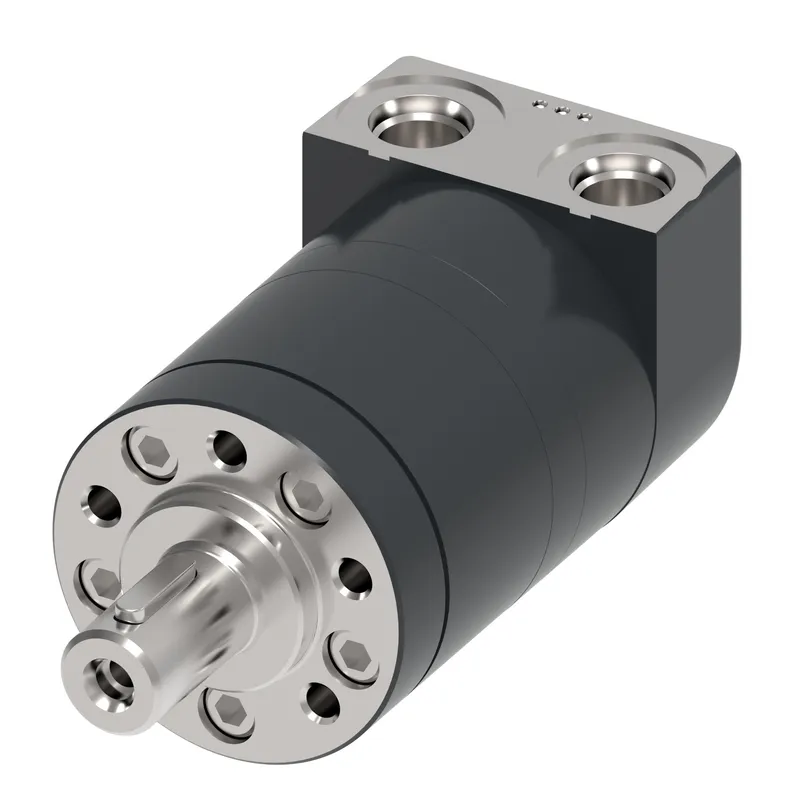

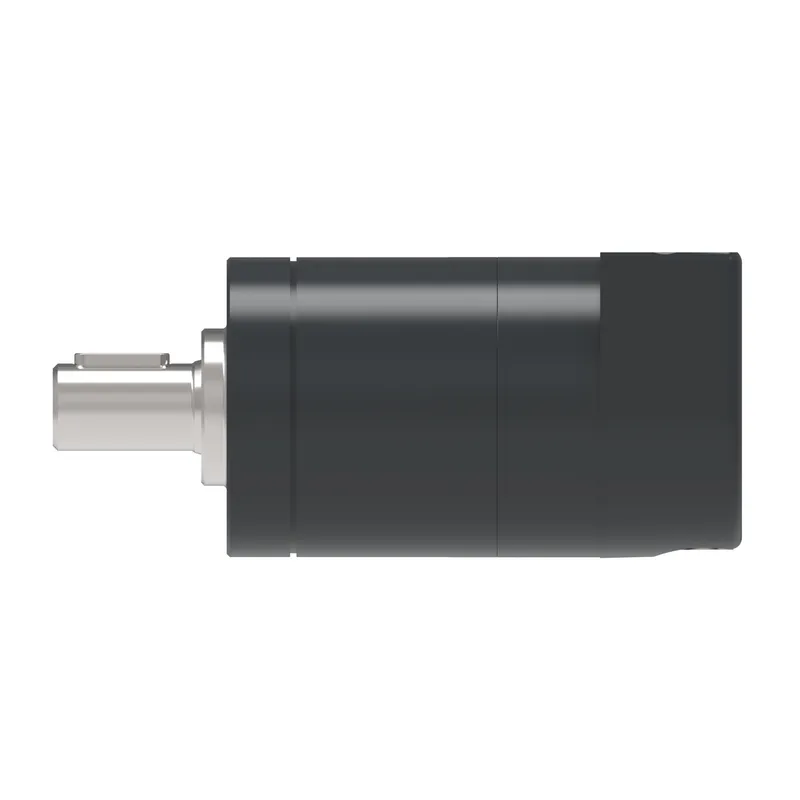

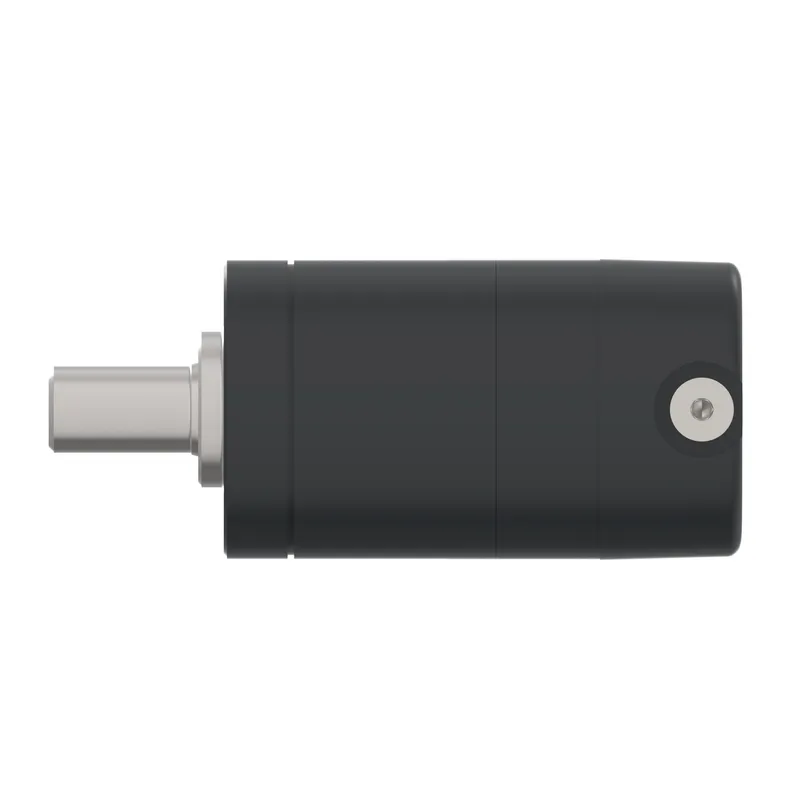

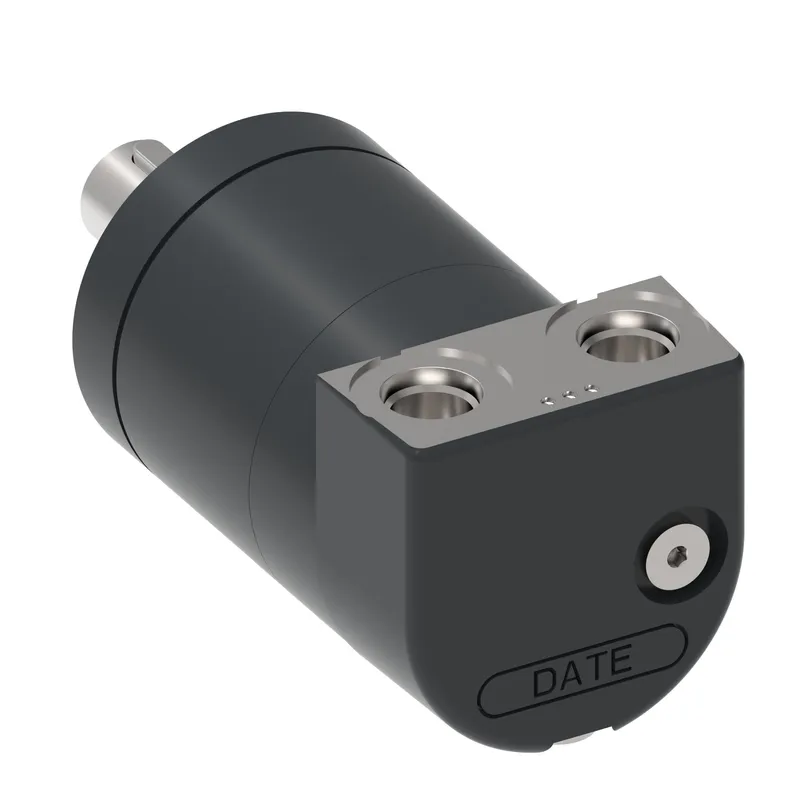

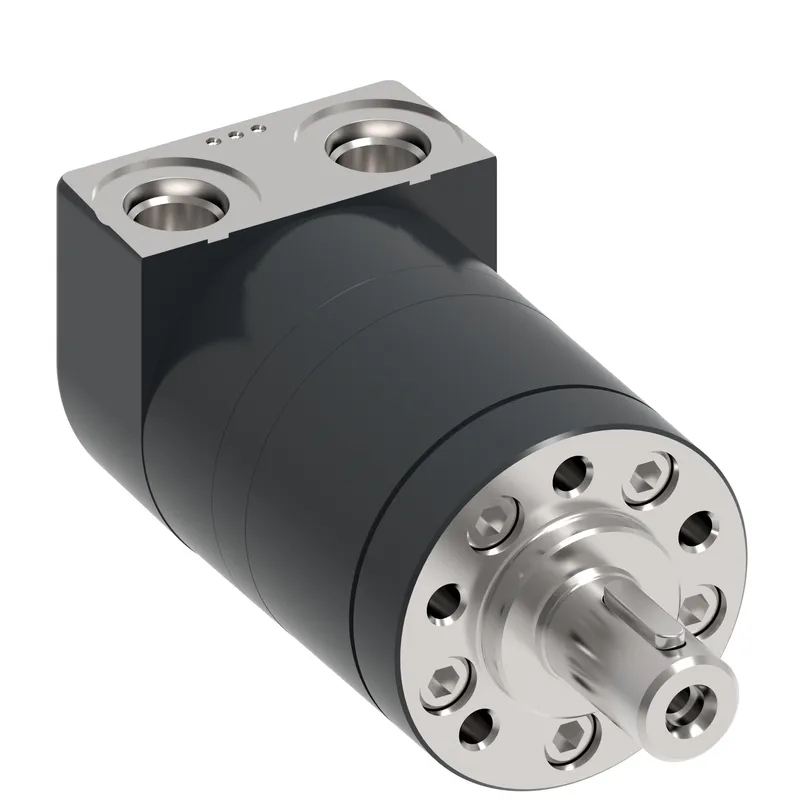

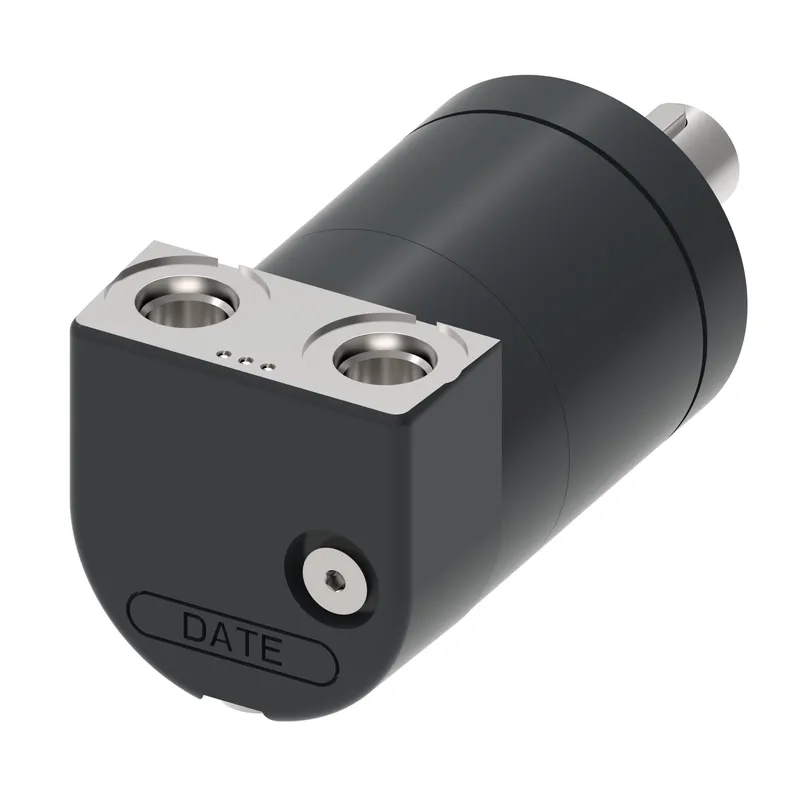

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B14F0000A0B

MPN: 129-0548-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 129-0548-002?

Danfoss MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B14F0000A0B, manufacturer part number 129-0548-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M0J08B14F0000A0B
Motor Series	J Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor size	13
Geometric displacement [cm3/r [in3/r]]	12.9 [0.79]
Motor type	Standard
Motor function	Standard
Mounting flange type	5 Bolt - Round
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	31.5 x 5.1, 45.0, M6 x 1 [1.24 x 0.20, 1.77, M6 x 1]
Shaft type	Straight
Shaft dimension	Dia. 16 mm, M6 x 1.00-6H thread in shaft end - Spec. Component
Shaft Key	Square key
Main port thread type	BSP
Main port style	Sideport - aligned
Main port dimension	G 1/4
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag

129-0548-002: frequently asked questions

When can 129-0548-002 be shipped?

129-0548-002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 129-0548-002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 129-0548-002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 129-0548-002, subject to availability and destination.
