Danfoss orbital motor quick selector Parts

Danfoss

631AG00055A

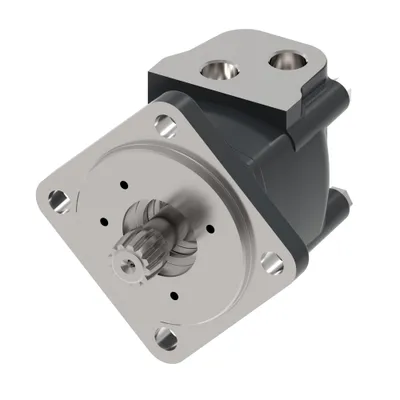

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AD00AA0100010000000ABAAB

Danfoss

631AG00054A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100BJ39AE0100010000000ABAAB

Danfoss

631AG00053A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AD00ZC9200010000000ABAAB

Danfoss

631AG00052A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AD00AA0100010000000ABAAB

Danfoss

631AG00050A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AZ39AS1000010000200ABAHB

Danfoss

631AG00049A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AZ39AS10000100002ABABAHB

Danfoss

631AG00048A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AZ39AS1000010000200ABAAB

Danfoss

631AG00047A

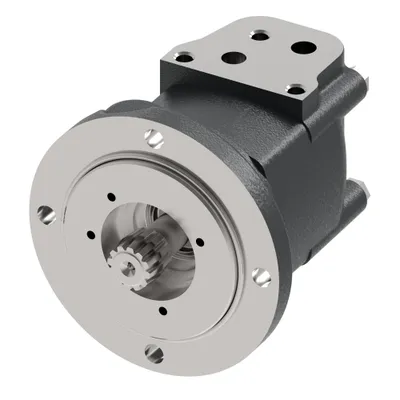

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130BJ39AE0100010000000ABAAB

Danfoss

631AG00046A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AZ39AS1000010000200ABAAB

Danfoss

631AG00045A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195BJ39AE0100010000000ABAAB

Danfoss

631AG00044A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160BJ39AE0100010000000ABAAB

Danfoss

631AG00043A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245BJ39AG0200010000000AEAAB

Danfoss

631AG00042A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AZ39AS10000100002ABAEAAB

Danfoss

631AG00041A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160BJ39AG0200010000000AEAAB

Danfoss

631AG00040A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AZ39AS1000010000200AEAAB

Danfoss

631AG00039A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130BJ39AG0200010000000AEAAB

Danfoss

631AG00037A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AD00AS0200010000000ABAAB

Danfoss

631AG00033A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AZ39AS10000100002ABABAAB

Danfoss

631AG00032A

MOTOR-ORBITAL,XL2 SERIES 90 [5.53], MC2090AZ39AS10000100013ABAEAEB

Danfoss

631AG00029A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080BJ39AG0200010000000ABAAB

Danfoss

631AG00028A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AZ39AS1000010000200ABAAB

Danfoss

631AG00027A

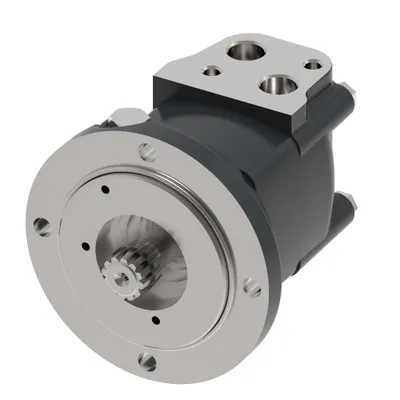

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AZ39AS1000010000200ABAAB

Danfoss

631AG00026A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AZ39AS10000100002ABABAAB

Danfoss

631AG00025A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AZ39AS10000100002ABABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Drain Port Dimension
631AG00055A	MC2245AD00AA0100010000000ABAAB	245	243.9 [14.88]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
631AG00054A	MC2100BJ39AE0100010000000ABAAB	100	101.3 [6.18]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port
631AG00053A	MC2245AD00ZC9200010000000ABAAB	245	243.9 [14.88]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
631AG00052A	MC2130AD00AA0100010000000ABAAB	130	130.5 [7.96]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
631AG00050A	MC2245AZ39AS1000010000200ABAHB	245	243.9 [14.88]	BSP	G 1/4 - Spec. Component
631AG00049A	MC2130AZ39AS10000100002ABABAHB	130	130.5 [7.96]	BSP	G 1/4 - Spec. Component
631AG00048A	MC2160AZ39AS1000010000200ABAAB	160	157.7 [9.62]	BSP	G 1/4 - Spec. Component
631AG00047A	MC2130BJ39AE0100010000000ABAAB	130	130.5 [7.96]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port
631AG00046A	MC2100AZ39AS1000010000200ABAAB	100	101.3 [6.18]	BSP	G 1/4 - Spec. Component
631AG00045A	MC2195BJ39AE0100010000000ABAAB	195	194.5 [11.87]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port
631AG00044A	MC2160BJ39AE0100010000000ABAAB	160	157.7 [9.62]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port
631AG00043A	MC2245BJ39AG0200010000000AEAAB	245	243.9 [14.88]	BSP	G 1/4
631AG00042A	MC2100AZ39AS10000100002ABAEAAB	100	101.3 [6.18]	BSP	G 1/4 - Spec. Component
631AG00041A	MC2160BJ39AG0200010000000AEAAB	160	157.7 [9.62]	BSP	G 1/4
631AG00040A	MC2195AZ39AS1000010000200AEAAB	195	194.5 [11.87]	BSP	G 1/4 - Spec. Component
631AG00039A	MC2130BJ39AG0200010000000AEAAB	130	130.5 [7.96]	BSP	G 1/4
631AG00037A	MC2305AD00AS0200010000000ABAAB	305	305.7 [18.65]	BSP	G 1/4
631AG00033A	MC2160AZ39AS10000100002ABABAAB	160	157.7 [9.62]	BSP	G 1/4 - Spec. Component
631AG00032A	MC2090AZ39AS10000100013ABAEAEB	90	90.6 [5.53]	BSP	G 1/4 - Spec. Component
631AG00029A	MC2080BJ39AG0200010000000ABAAB	80	80.1 [4.89]	BSP	G 1/4
631AG00028A	MC2245AZ39AS1000010000200ABAAB	245	243.9 [14.88]	BSP	G 1/4 - Spec. Component
631AG00027A	MC2195AZ39AS1000010000200ABAAB	195	194.5 [11.87]	BSP	G 1/4 - Spec. Component
631AG00026A	MC2130AZ39AS10000100002ABABAAB	130	130.5 [7.96]	BSP	G 1/4 - Spec. Component
631AG00025A	MC2100AZ39AS10000100002ABABAAB	100	101.3 [6.18]	BSP	G 1/4 - Spec. Component

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Short
Motor function	Standard
Mounting flange type	4 Bolt - Short
Shaft type	None
Shaft dimension	n/a
