Danfoss (Drives)

Danfoss 631AG00049A

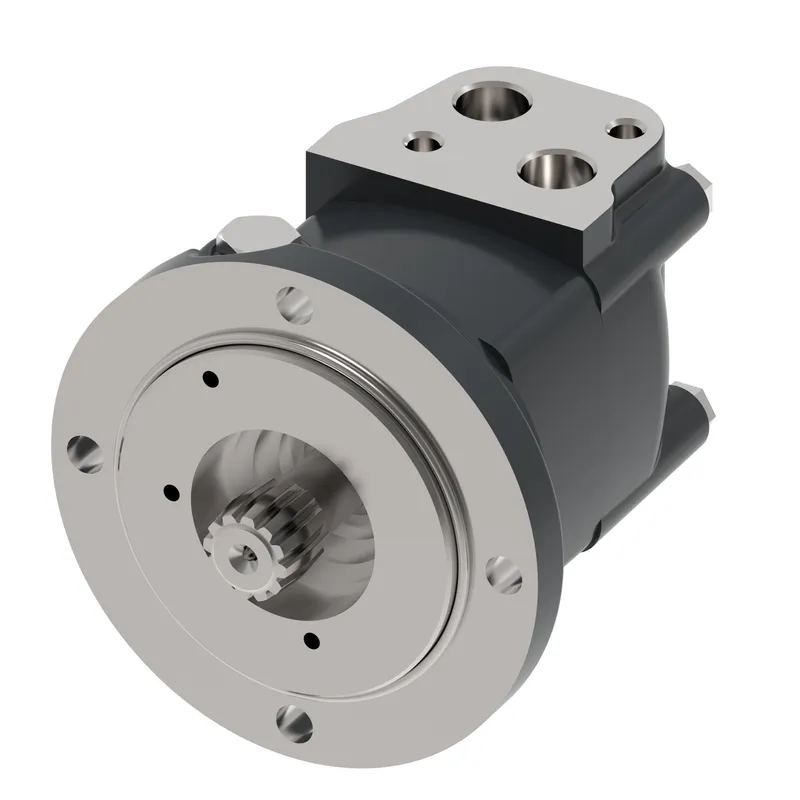

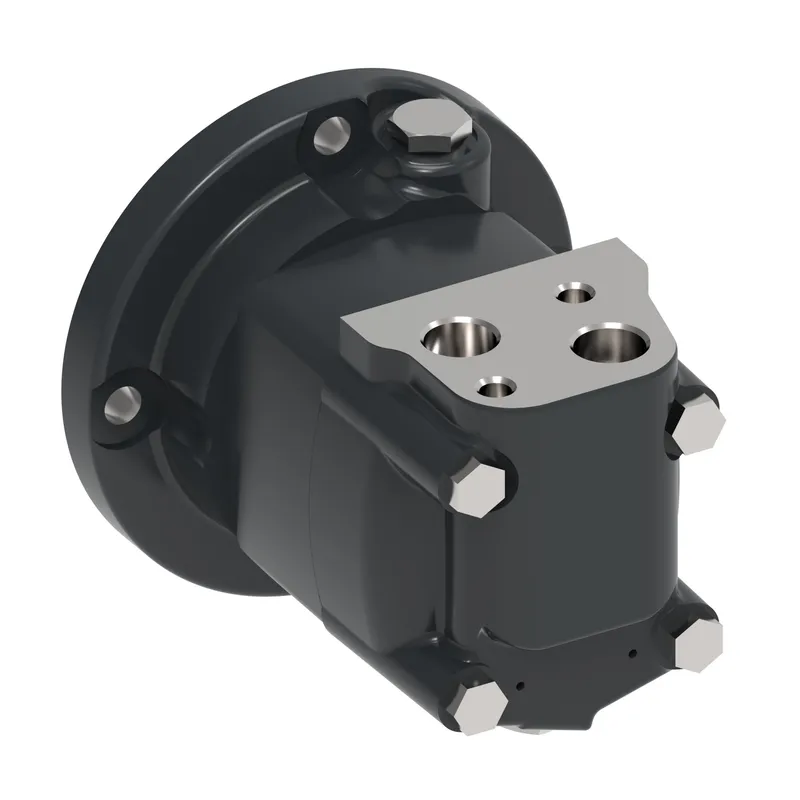

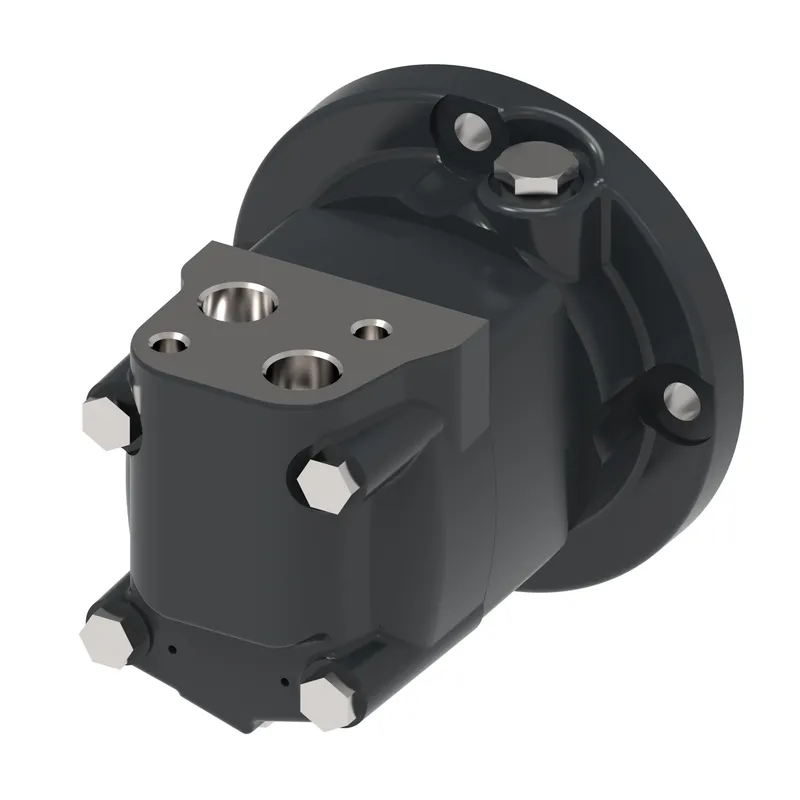

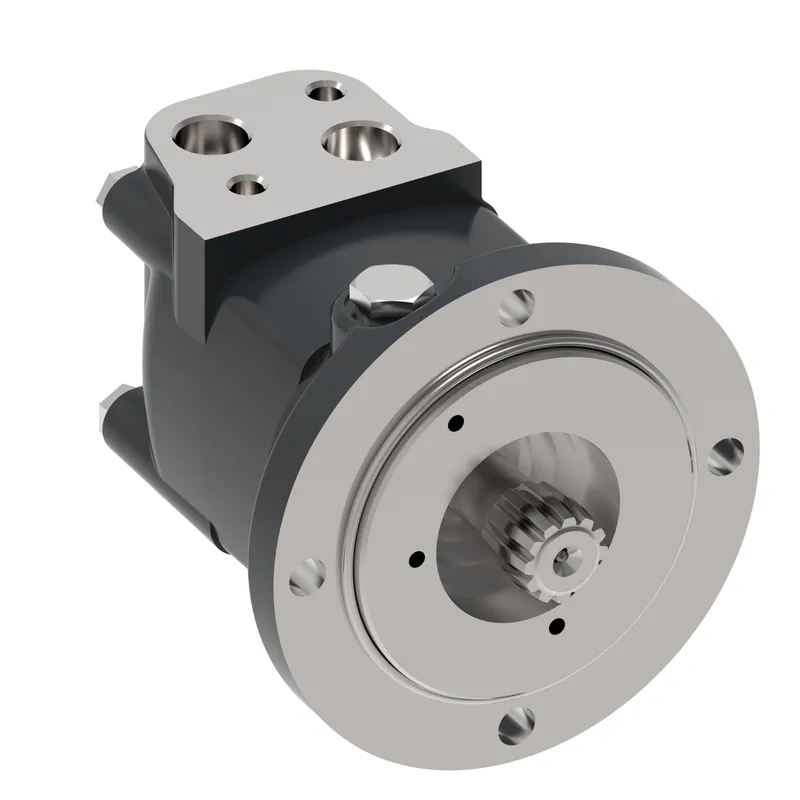

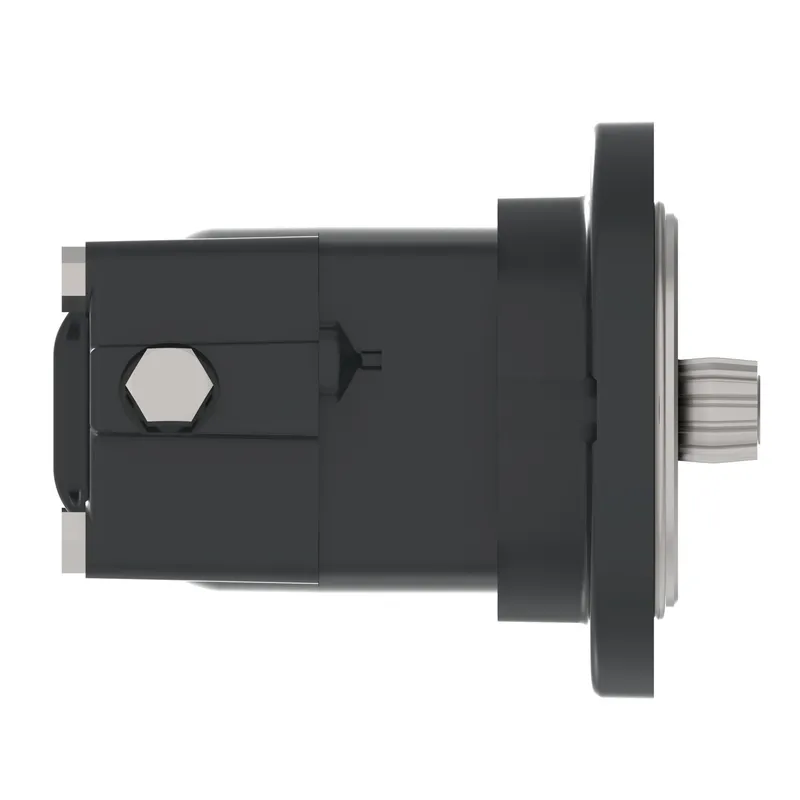

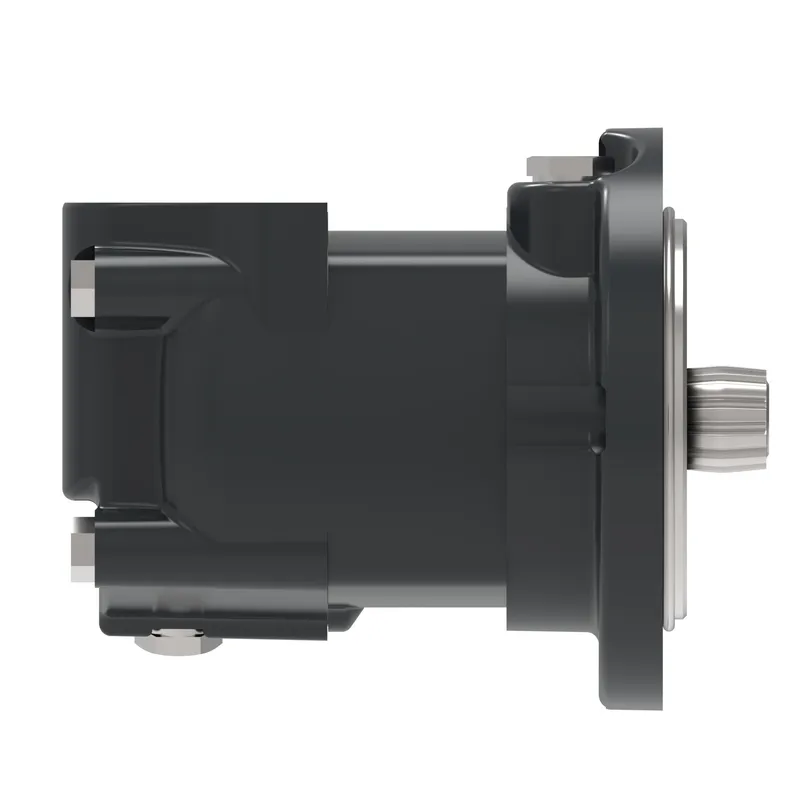

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AZ39AS10000100002ABABAHB

MPN: 631AG00049A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 631AG00049A?

Danfoss MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AZ39AS10000100002ABABAHB, manufacturer part number 631AG00049A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2130AZ39AS10000100002ABABAHB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	130
Geometric displacement [cm3/r [in3/r]]	130.5 [7.96]
Motor type	Short
Motor function	Standard
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	100.0 x 6.0, 125.0, 11.0 [3.94 x 0.24, 4.92, 0.43]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2, 2 x M10 x 1.5-6H block mounting threads
Drain Port Dimension	G 1/4 - Spec. Component
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Direction of rotation
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	Z331-54
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Customized
Brand	Danfoss
Sub brand	Xcel

631AG00049A: frequently asked questions

When can 631AG00049A be shipped?

631AG00049A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 631AG00049A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 631AG00049A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 631AG00049A, subject to availability and destination.
