Danfoss orbital motor quick selector Parts

Danfoss

631AG00024A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AZ39AS10000100013ABABAAB

Danfoss

631AG00023A

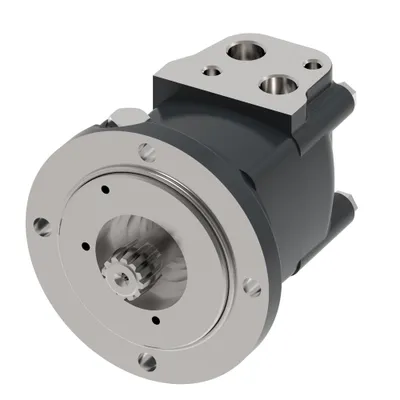

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245BJ39AS0200010000000ABAAB

Danfoss

631AG00022A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AZ39AS10000100013ABABAAB

Danfoss

631AG00021A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AZ39AS10000100013ABAEAEB

Danfoss

631AG00020A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130BJ39AG0200010000000ABAAB

Danfoss

631AG00019A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160BJ39AG0200010000000ABAAB

Danfoss

631AG00017A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AD00AG0200010000000ABAAB

Danfoss

631AG00013A

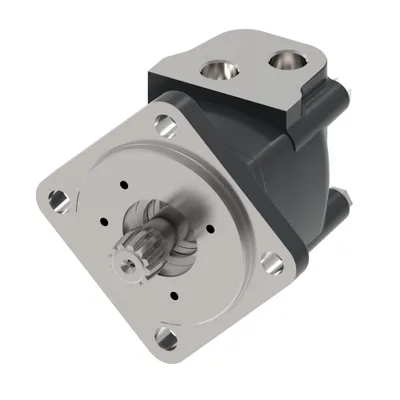

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AD00AG0200010000000ABAAB

Danfoss

631AG00011A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AD00AG0200010000000ABAAB

Danfoss

631AG00010A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AD00AG0200010000000ABAAB

Danfoss

630AG00049A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AB03AA0100010AH0000ABAAB

Danfoss

630AG00048A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AB16AS02000130000ABAAAAB

Danfoss

630AG00047A

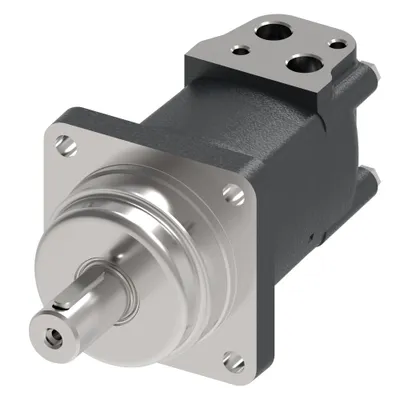

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AB16AS02000130000ABAAAAB

Danfoss

630AG00046A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AB16AS02000130000ABAAAAB

Danfoss

630AG00045A

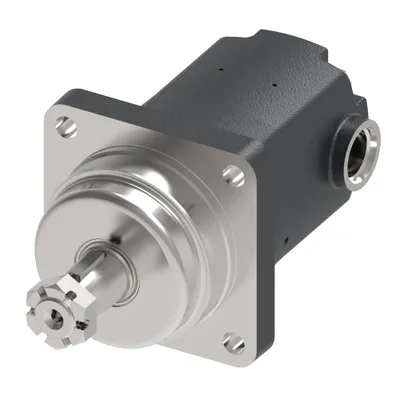

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AB04ZC9200010000000ABADB

Danfoss

630AG00043A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AB04AA0100010000000ABADB

Danfoss

630AG00042A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AB04AA0100010000000ABADB

Danfoss

630AG00041A

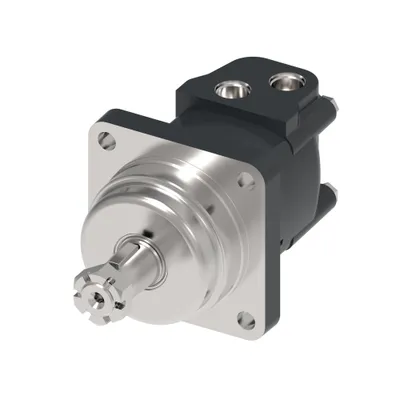

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AB04AA0100010000000ABADB

Danfoss

630AG00040A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AB16AS02000100000ABAAAAB

Danfoss

630AG00039A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AB16AS02000100000ABAAAAB

Danfoss

630AG00038A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AB16AS0200010000000AAAAB

Danfoss

630AG00037A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AB16AS0200010000000AAAAB

Danfoss

630AG00036A

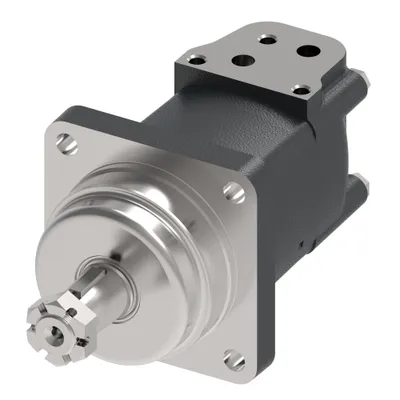

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AB12AE0100010000000AAAAB

Danfoss

630AG00035A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AB03AG0200013000000ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Seal Kit
631AG00024A	MC2100AZ39AS10000100013ABABAAB	100	101.3 [6.18]	n/a	Z331-55
631AG00023A	MC2245BJ39AS0200010000000ABAAB	245	243.9 [14.88]	n/a	Z331-54
631AG00022A	MC2130AZ39AS10000100013ABABAAB	130	130.5 [7.96]	n/a	Z331-55
631AG00021A	MC2100AZ39AS10000100013ABAEAEB	100	101.3 [6.18]	n/a	Z331-55
631AG00020A	MC2130BJ39AG0200010000000ABAAB	130	130.5 [7.96]	n/a	Z331-54
631AG00019A	MC2160BJ39AG0200010000000ABAAB	160	157.7 [9.62]	n/a	Z331-54
631AG00017A	MC2395AD00AG0200010000000ABAAB	395	393.0 [23.98]	n/a	Z331-53
631AG00013A	MC2160AD00AG0200010000000ABAAB	160	157.7 [9.62]	n/a	Z331-53
631AG00011A	MC2100AD00AG0200010000000ABAAB	100	101.3 [6.18]	n/a	Z331-53
631AG00010A	MC2080AD00AG0200010000000ABAAB	80	80.1 [4.89]	n/a	Z331-53
630AG00049A	MC2195AB03AA0100010AH0000ABAAB	195	194.5 [11.87]	Square key, 5/16 x 1 inch	Z331-02
630AG00048A	MC2195AB16AS02000130000ABAAAAB	195	194.5 [11.87]	Rectangular key, 10 x 8 x 45 mm	Z331-51
630AG00047A	MC2395AB16AS02000130000ABAAAAB	395	393.0 [23.98]	Rectangular key, 10 x 8 x 45 mm	Z331-51
630AG00046A	MC2305AB16AS02000130000ABAAAAB	305	305.7 [18.65]	Rectangular key, 10 x 8 x 45 mm	Z331-51
630AG00045A	MC2245AB04ZC9200010000000ABADB	245	243.9 [14.88]	n/a	Z331-02
630AG00043A	MC2195AB04AA0100010000000ABADB	195	194.5 [11.87]	n/a	Z331-02
630AG00042A	MC2160AB04AA0100010000000ABADB	160	157.7 [9.62]	n/a	Z331-02
630AG00041A	MC2080AB04AA0100010000000ABADB	80	80.1 [4.89]	n/a	Z331-02
630AG00040A	MC2395AB16AS02000100000ABAAAAB	395	393.0 [23.98]	Rectangular key, 10 x 8 x 45 mm	Z331-02
630AG00039A	MC2305AB16AS02000100000ABAAAAB	305	305.7 [18.65]	Rectangular key, 10 x 8 x 45 mm	Z331-02
630AG00038A	MC2395AB16AS0200010000000AAAAB	395	393.0 [23.98]	Rectangular key, 10 x 8 x 45 mm	Z331-02
630AG00037A	MC2305AB16AS0200010000000AAAAB	305	305.7 [18.65]	Rectangular key, 10 x 8 x 45 mm	Z331-02
630AG00036A	MC2395AB12AE0100010000000AAAAB	395	393.0 [23.98]	Square key, 5/16 x 1 1/4 inch	Z331-02
630AG00035A	MC2395AB03AG0200013000000ABAAB	395	393.0 [23.98]	Square key, 5/16 x 1 inch	Z331-51

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Orbital gearwheel set	Standard
Check valve function	Yes
