Danfoss 631AG00050A

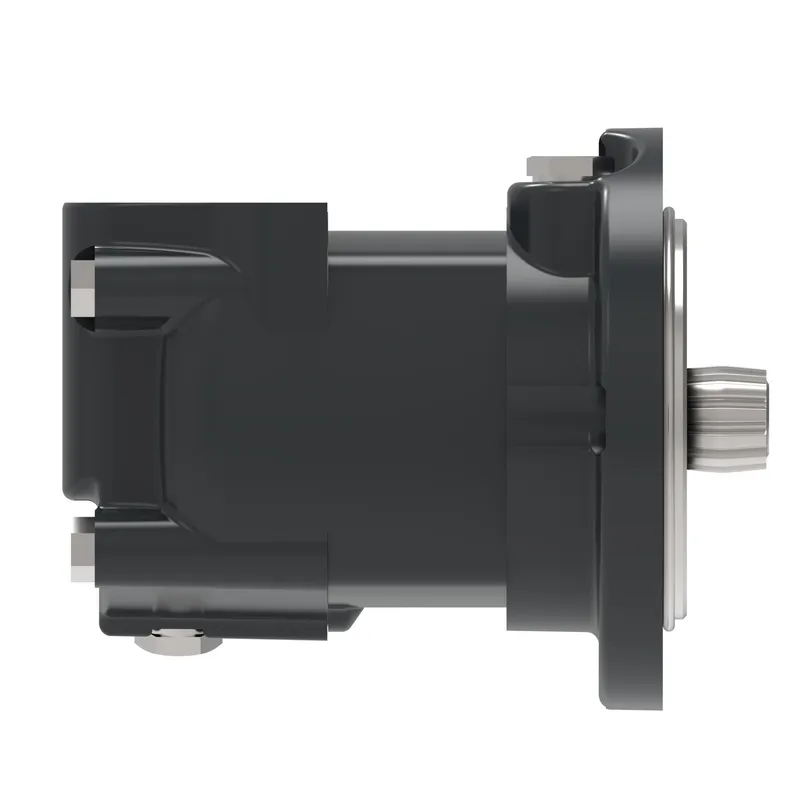

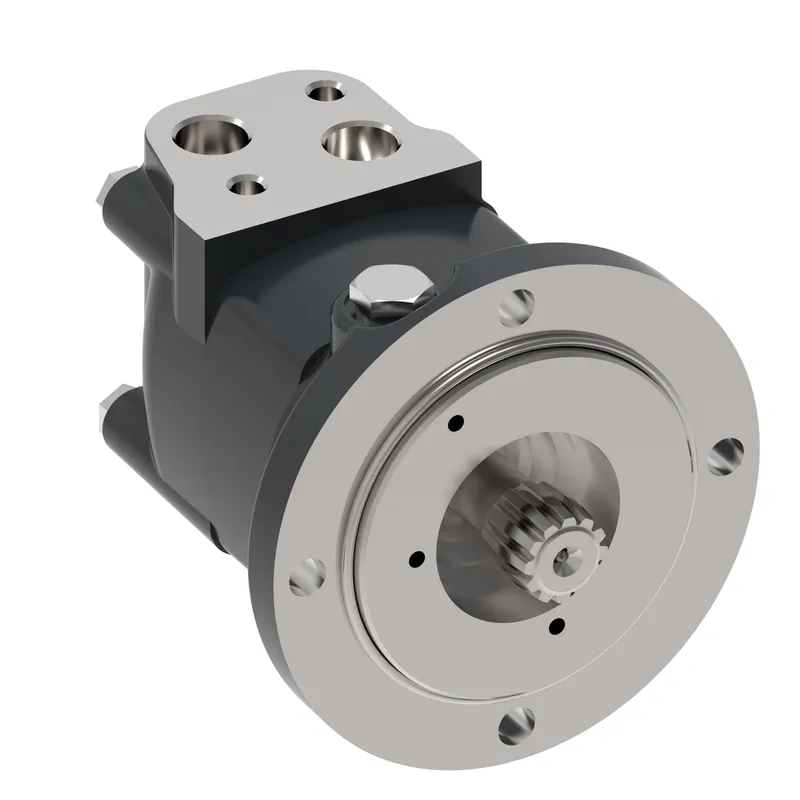

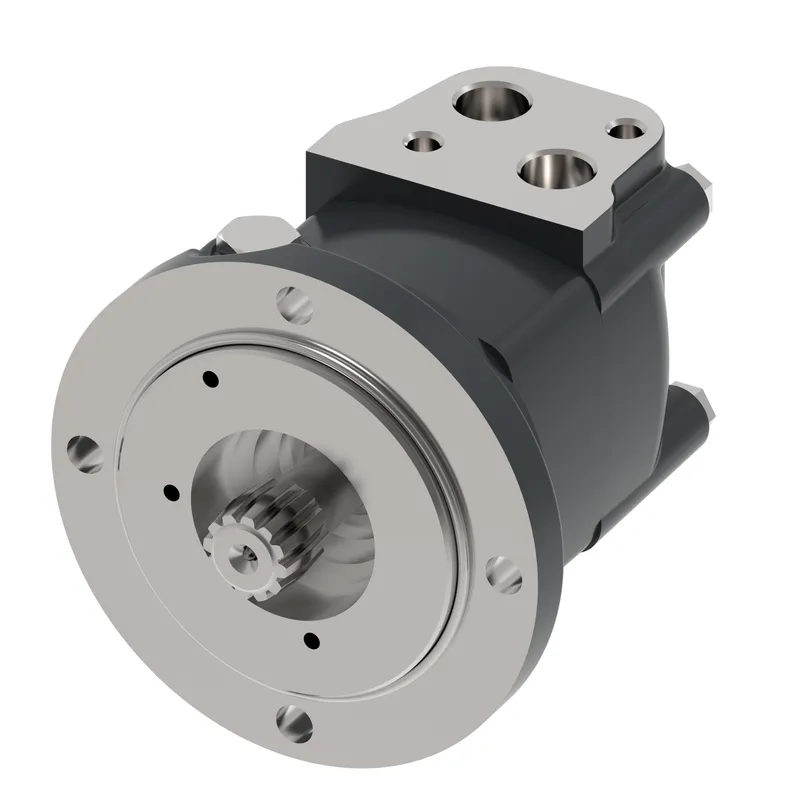

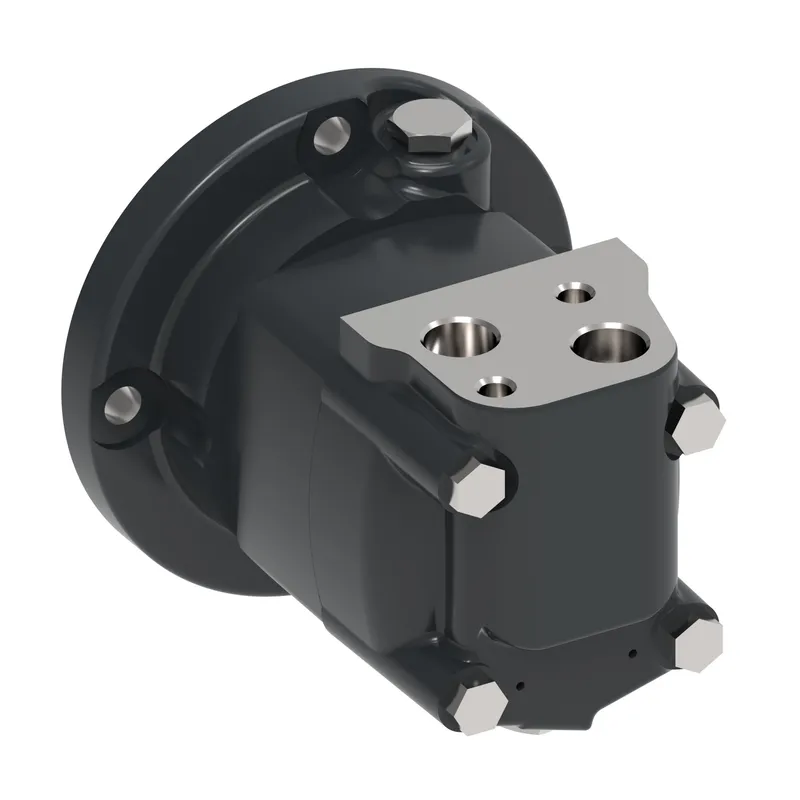

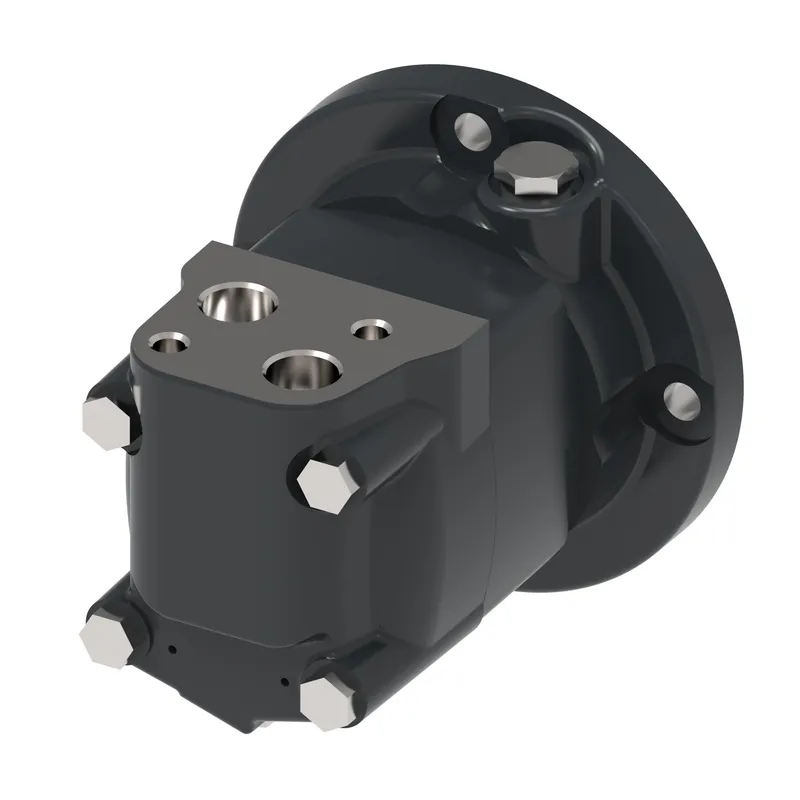

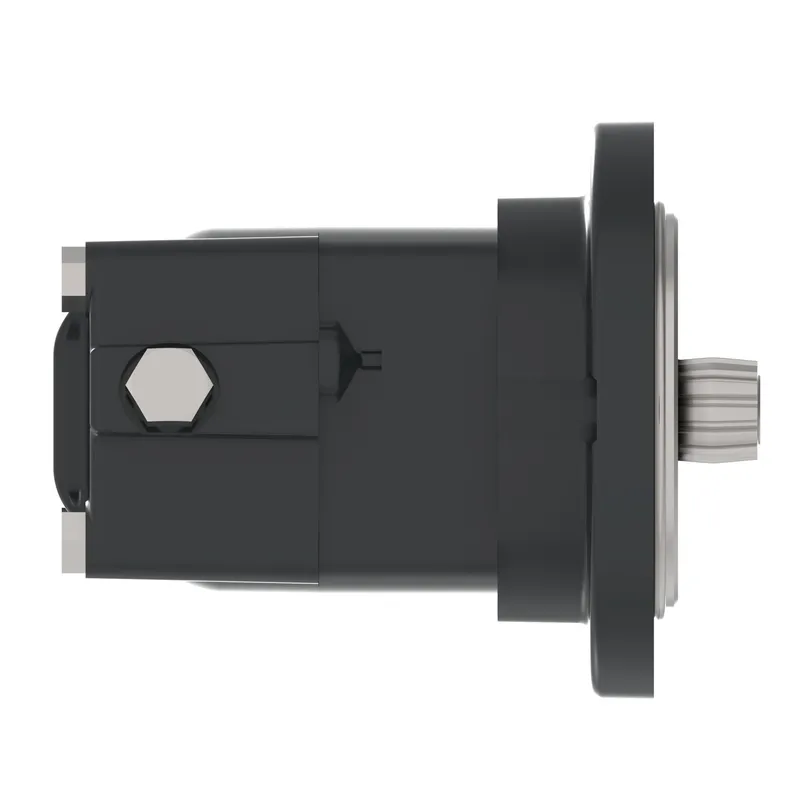

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AZ39AS1000010000200ABAHB

MPN: 631AG00050A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 631AG00050A?

Danfoss MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AZ39AS1000010000200ABAHB, manufacturer part number 631AG00050A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2245AZ39AS1000010000200ABAHB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	245
Geometric displacement [cm3/r [in3/r]]	243.9 [14.88]
Motor type	Short
Motor function	Standard
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	100.0 x 6.0, 125.0, 11.0 [3.94 x 0.24, 4.92, 0.43]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1/2, 2 x M10 x 1.5-6H block mounting threads
Drain Port Dimension	G 1/4 - Spec. Component
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	Z331-54
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Customized
Brand	Danfoss
Sub brand	Xcel
