Danfoss orbital motor quick selector Parts

Danfoss

193-0288-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AE00AA0100010000000AAAAA

Danfoss

193-0287-001

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AE00AA0100010000000AAAAA

Danfoss

193-0286-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AE00AA0100010000000AAAAA

Danfoss

193-0285-001

MOTOR-ORBITAL,2000 2SP SERIES 158 [9.6], M22096AE00AA0100010000000AAAAA

Danfoss

193-0284-001

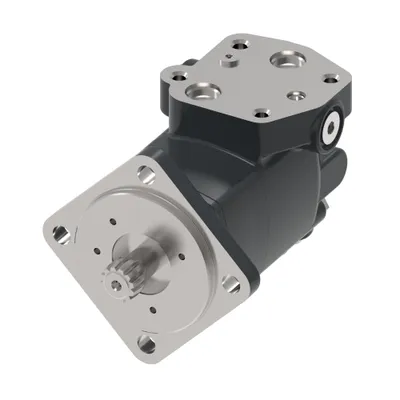

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AE00AA0100010000000AAAAA

Danfoss

193-0283-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AE00AA0100010000000AAAAA

Danfoss

193-0282-001

MOTOR-ORBITAL,2000 2SP SERIES 80 [4.9], M22049AE00AA0100010000000AAAAA

Danfoss

193-0236-001

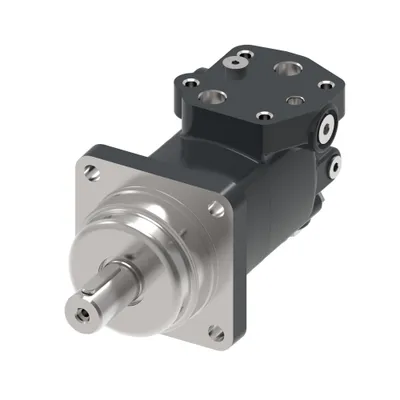

2K/2SP MOTOR, M22187AB04AA0100010000000AAAAA

Danfoss

193-0234-001

2K/2SP MOTOR, M22119AB04AA0100010000000AAAAA

Danfoss

193-0229-001

2K/2SP MOTOR, M22240AB03AA0100010000000AAAAA

Danfoss

193-0228-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AB03AA0100010000000AAAAA

Danfoss

193-0226-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AB03AA0100010000000AAAAA

Danfoss

193-0218-001

MOTOR-ORBITAL,2000 2SP SERIES 160 [9.6], M22096AF02AA01000100000AAAAAAA

Danfoss

193-0214-001

MOTOR-ORBITAL,2000 2SP SERIES 160 [9.6], M22096AC02AA0100010AA0000AAAAA

Danfoss

193-0206-001

2K/2SP MOTOR, M22080AC19AD0200010000000ABAAA

Danfoss

193-0205-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AC04AA0100012000000AAAAA

Danfoss

193-0201-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AC07AA0100010000000AAAAA

Danfoss

193-0195-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AF08AA01000100000ABAAAAA

Danfoss

193-0194-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AF08AA0100010000000AAAAA

Danfoss

193-0185-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AC19AD0200010000000AAAAA

Danfoss

193-0184-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AH16AA0100010000000AAAAA

Danfoss

193-0181-001

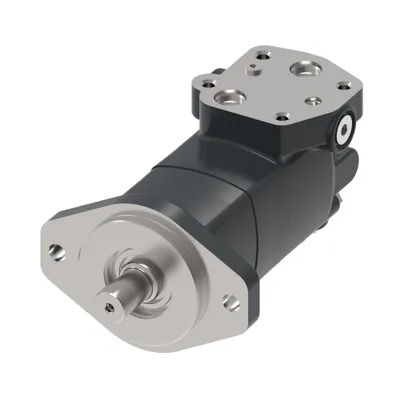

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AF02AA0100010000000AAAAA

Danfoss

193-0178-001

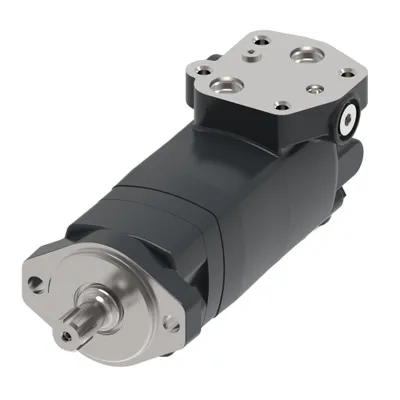

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AC19AD05000100000ABABAAA

Danfoss

193-0176-001

MOTOR-ORBITAL,2000 2SP SERIES 395 [24], M22240AC05AA0100010000000AAAAA

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
193-0288-001	M22187AE00AA0100010000000AAAAA	305	306.6 [18.71]	4 Bolt - Short	n/a
193-0287-001	M22149AE00AA0100010000000AAAAA	245	244.3 [14.91]	4 Bolt - Short	n/a
193-0286-001	M22119AE00AA0100010000000AAAAA	195	194.8 [11.89]	4 Bolt - Short	n/a
193-0285-001	M22096AE00AA0100010000000AAAAA	160	158.1 [9.65]	4 Bolt - Short	n/a
193-0284-001	M22080AE00AA0100010000000AAAAA	130	130.6 [7.97]	4 Bolt - Short	n/a
193-0283-001	M22062AE00AA0100010000000AAAAA	100	101.6 [6.20]	4 Bolt - Short	n/a
193-0282-001	M22049AE00AA0100010000000AAAAA	80	80.6 [4.92]	4 Bolt - Short	n/a
193-0236-001	M22187AB04AA0100010000000AAAAA	305	306.6 [18.71]	4 Bolt - Wheel	n/a
193-0234-001	M22119AB04AA0100010000000AAAAA	195	194.8 [11.89]	4 Bolt - Wheel	n/a
193-0229-001	M22240AB03AA0100010000000AAAAA	395	393.8 [24.03]	4 Bolt - Wheel	Square key, 5/16 x 1 inch
193-0228-001	M22187AB03AA0100010000000AAAAA	305	306.6 [18.71]	4 Bolt - Wheel	Square key, 5/16 x 1 inch
193-0226-001	M22119AB03AA0100010000000AAAAA	195	194.8 [11.89]	4 Bolt - Wheel	Square key, 5/16 x 1 inch
193-0218-001	M22096AF02AA01000100000AAAAAAA	160	158.1 [9.65]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
193-0214-001	M22096AC02AA0100010AA0000AAAAA	160	158.1 [9.65]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
193-0206-001	M22080AC19AD0200010000000ABAAA	130	130.6 [7.97]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
193-0205-001	M22187AC04AA0100012000000AAAAA	305	306.6 [18.71]	2 Bolt - A	n/a
193-0201-001	M22062AC07AA0100010000000AAAAA	100	101.6 [6.20]	2 Bolt - A	n/a
193-0195-001	M22080AF08AA01000100000ABAAAAA	130	130.6 [7.97]	2 Bolt - B	n/a
193-0194-001	M22080AF08AA0100010000000AAAAA	130	130.6 [7.97]	2 Bolt - B	n/a
193-0185-001	M22062AC19AD0200010000000AAAAA	100	101.6 [6.20]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
193-0184-001	M22062AH16AA0100010000000AAAAA	100	101.6 [6.20]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0181-001	M22149AF02AA0100010000000AAAAA	245	244.3 [14.91]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
193-0178-001	M22062AC19AD05000100000ABABAAA	100	101.6 [6.20]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
193-0176-001	M22240AC05AA0100010000000AAAAA	395	393.8 [24.03]	2 Bolt - A	n/a

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Two-speed motor
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Seal Kit	No data available
Orbital gearwheel set	Standard
