Danfoss orbital motor quick selector Parts

Danfoss

193-0099-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AC02AA01000100000ABAAAAA

Danfoss

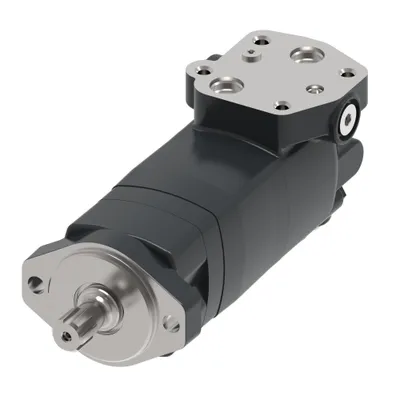

193-0097-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AC02AA01000100000ABAAAAA

Danfoss

193-0095-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AC02AA01000100000ABAAAAA

Danfoss

193-0093-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AF08AA0100010000000AAAAA

Danfoss

193-0090-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AH16AD0200010000000AAAAA

Danfoss

193-0089-001

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AH16AD0200010000000AAAAA

Danfoss

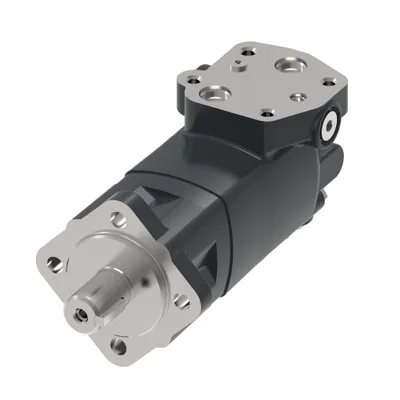

193-0088-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AH16AD0200010000000AAAAA

Danfoss

193-0087-001

MOTOR-ORBITAL,2000 2SP SERIES 158 [9.6], M22096AH16AD0200010000000AAAAA

Danfoss

193-0086-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AH16AD0200010000000AAAAA

Danfoss

193-0085-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AH16AD0200010000000AAAAA

Danfoss

193-0084-001

MOTOR-ORBITAL,2000 2SP SERIES 80 [4.9], M22049AH16AD0200010000000AAAAA

Danfoss

193-0080-001

MOTOR-ORBITAL,2000 2SP SERIES 395 [24], M22240AF02AA0100010000000AAAAA

Danfoss

193-0078-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AF04AA0100010000000AAAAA

Danfoss

193-0077-001

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AF04AA0100010000000AAAAA

Danfoss

193-0076-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AF04AA0100010000000AAAAA

Danfoss

193-0072-001

MOTOR-ORBITAL,2000 2SP SERIES 80 [4.9], M22049AF04AA0100010000000AAAAA

Danfoss

193-0058-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AF07AA0100010000000AAAAA

Danfoss

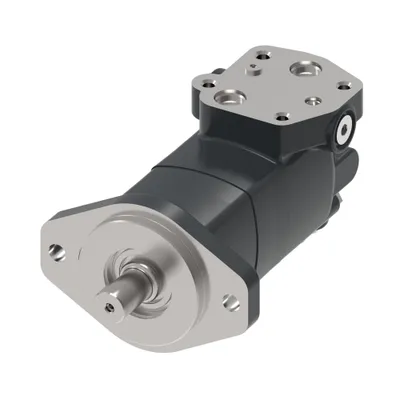

193-0057-001

MOTOR-ORBITAL,2000 2SP SERIES 158 [9.6], M22096AF07AA0100010000000AAAAA

Danfoss

193-0056-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AF07AA0100010000000AAAAA

Danfoss

193-0055-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AF07AA0100010000000AAAAA

Danfoss

193-0052-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AF07AA01000100000ABAAAAA

Danfoss

193-0048-001

MOTOR-ORBITAL,2000 2SP SERIES 80 [4.9], M22049AF07AA01000100000ABAAAAA

Danfoss

193-0030-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AC05AA0100010000000AAAAA

Danfoss

193-0029-001

MOTOR-ORBITAL,2000 2SP SERIES 158 [9.6], M22096AC05AA0100010000000AAAAA

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
193-0099-001	M22187AC02AA01000100000ABAAAAA	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
193-0097-001	M22119AC02AA01000100000ABAAAAA	195	194.8 [11.89]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
193-0095-001	M22062AC02AA01000100000ABAAAAA	100	101.6 [6.20]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
193-0093-001	M22119AF08AA0100010000000AAAAA	195	194.8 [11.89]	2 Bolt - B	n/a
193-0090-001	M22187AH16AD0200010000000AAAAA	305	306.6 [18.71]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0089-001	M22149AH16AD0200010000000AAAAA	245	244.3 [14.91]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0088-001	M22119AH16AD0200010000000AAAAA	195	194.8 [11.89]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0087-001	M22096AH16AD0200010000000AAAAA	160	158.1 [9.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0086-001	M22080AH16AD0200010000000AAAAA	130	130.6 [7.97]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0085-001	M22062AH16AD0200010000000AAAAA	100	101.6 [6.20]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0084-001	M22049AH16AD0200010000000AAAAA	80	80.6 [4.92]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0080-001	M22240AF02AA0100010000000AAAAA	395	393.8 [24.03]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
193-0078-001	M22187AF04AA0100010000000AAAAA	305	306.6 [18.71]	2 Bolt - B	n/a
193-0077-001	M22149AF04AA0100010000000AAAAA	245	244.3 [14.91]	2 Bolt - B	n/a
193-0076-001	M22119AF04AA0100010000000AAAAA	195	194.8 [11.89]	2 Bolt - B	n/a
193-0072-001	M22049AF04AA0100010000000AAAAA	80	80.6 [4.92]	2 Bolt - B	n/a
193-0058-001	M22119AF07AA0100010000000AAAAA	195	194.8 [11.89]	2 Bolt - B	n/a
193-0057-001	M22096AF07AA0100010000000AAAAA	160	158.1 [9.65]	2 Bolt - B	n/a
193-0056-001	M22080AF07AA0100010000000AAAAA	130	130.6 [7.97]	2 Bolt - B	n/a
193-0055-001	M22062AF07AA0100010000000AAAAA	100	101.6 [6.20]	2 Bolt - B	n/a
193-0052-001	M22119AF07AA01000100000ABAAAAA	195	194.8 [11.89]	2 Bolt - B	n/a
193-0048-001	M22049AF07AA01000100000ABAAAAA	80	80.6 [4.92]	2 Bolt - B	n/a
193-0030-001	M22119AC05AA0100010000000AAAAA	195	194.8 [11.89]	2 Bolt - A	n/a
193-0029-001	M22096AC05AA0100010000000AAAAA	160	158.1 [9.65]	2 Bolt - A	n/a

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Two-speed motor
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	No
