Danfoss orbital motor quick selector Parts

Danfoss

193-0175-001

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AF04AA0100010AA0000AAAAA

Danfoss

193-0174-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AC04AA01000100000ABAAAAA

Danfoss

193-0168-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AC07AA0100010000000AAAAA

Danfoss

193-0164-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AJ04AA0100010000000AAAAA

Danfoss

193-0155-001

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AF04AA01000100000ABAAAAA

Danfoss

193-0152-001

MOTOR-ORBITAL,2000 2SP SERIES 158 [9.6], M22096AC19AD0200010000000AAAAA

Danfoss

193-0149-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AC19AD0200010000000AAAAA

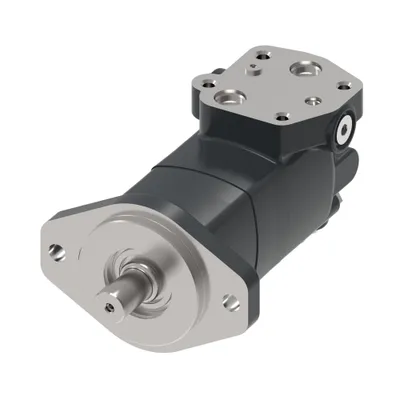

Danfoss

193-0148-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AF04AA01000100000ABAAAAA

Danfoss

193-0146-001

MOTOR-ORBITAL,2000 2SP SERIES 395 [24], M22240AH02AA0100010000000AAAAA

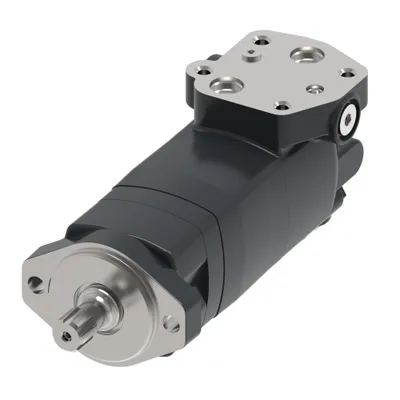

Danfoss

193-0143-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AC05AA0100010000000AAAAA

Danfoss

193-0142-001

MOTOR-ORBITAL,2000 2SP SERIES 245 [14.9], M22149AC05AA0100010000000AAAAA

Danfoss

193-0135-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AC04AA01000100000ABAAAAA

Danfoss

193-0129-001

MOTOR-ORBITAL,2000 2SP SERIES 80 [4.9], M22049AC07AA0100010000000AAAAA

Danfoss

193-0123-001

MOTOR-ORBITAL,2000 2SP SERIES 160 [9.6], M22096AJ04AA0100010000000ABAAA

Danfoss

193-0122-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AF08AA01000100000ABAAAAA

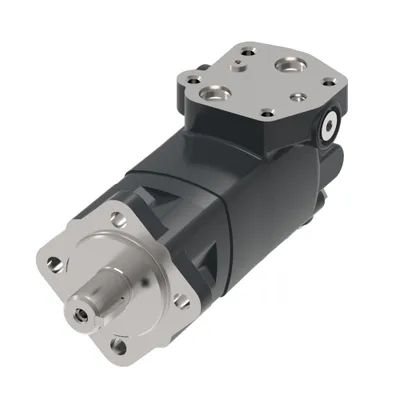

Danfoss

193-0120-001

MOTOR-ORBITAL,2000 2SP SERIES 195 [11.9], M22119AH04AD0200010000000AAAAA

Danfoss

193-0119-001

MOTOR-ORBITAL,2000 2SP SERIES 305 [18.7], M22187AH16AD02000100000ABAAAAA

Danfoss

193-0117-001

MOTOR-ORBITAL,2000 2SP SERIES 158 [9.6], M22096AH16AD02000100000ABAAAAA

Danfoss

193-0116-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AF01AA0100010000000AAAAA

Danfoss

193-0115-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AF01AA0100010000000AAAAA

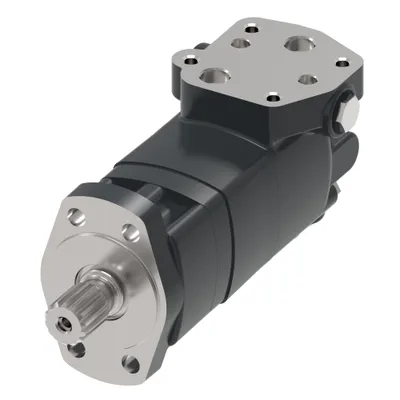

Danfoss

193-0113-001

MOTOR-ORBITAL,2000 2SP SERIES 395 [24], M22240AJ04AA0100010000000AAAAA

Danfoss

193-0107-001

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AF08AA0100010000000AAAAA

Danfoss

193-0106-001

MOTOR-ORBITAL,2000 2SP SERIES 80 [4.9], M22049AF08AA0100010000000AAAAA

Danfoss

193-0105-001

MOTOR-ORBITAL,2000 2SP SERIES 130 [8], M22080AJ05AA0100010000000AAAAA

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
193-0175-001	M22149AF04AA0100010AA0000AAAAA	245	244.3 [14.91]	2 Bolt - B	n/a
193-0174-001	M22080AC04AA01000100000ABAAAAA	130	130.6 [7.97]	2 Bolt - A	n/a
193-0168-001	M22080AC07AA0100010000000AAAAA	130	130.6 [7.97]	2 Bolt - A	n/a
193-0164-001	M22119AJ04AA0100010000000AAAAA	195	194.8 [11.89]	4 Bolt - Magneto	n/a
193-0155-001	M22149AF04AA01000100000ABAAAAA	245	244.3 [14.91]	2 Bolt - B	n/a
193-0152-001	M22096AC19AD0200010000000AAAAA	160	158.1 [9.65]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
193-0149-001	M22080AC19AD0200010000000AAAAA	130	130.6 [7.97]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
193-0148-001	M22119AF04AA01000100000ABAAAAA	195	194.8 [11.89]	2 Bolt - B	n/a
193-0146-001	M22240AH02AA0100010000000AAAAA	395	393.8 [24.03]	4 Bolt - Square	Square key, 5/16 x 1 1/4 inch
193-0143-001	M22187AC05AA0100010000000AAAAA	305	306.6 [18.71]	2 Bolt - A	n/a
193-0142-001	M22149AC05AA0100010000000AAAAA	245	244.3 [14.91]	2 Bolt - A	n/a
193-0135-001	M22119AC04AA01000100000ABAAAAA	195	194.8 [11.89]	2 Bolt - A	n/a
193-0129-001	M22049AC07AA0100010000000AAAAA	80	80.6 [4.92]	2 Bolt - A	n/a
193-0123-001	M22096AJ04AA0100010000000ABAAA	160	158.1 [9.65]	4 Bolt - Magneto	n/a
193-0122-001	M22062AF08AA01000100000ABAAAAA	100	101.6 [6.20]	2 Bolt - B	n/a
193-0120-001	M22119AH04AD0200010000000AAAAA	195	194.8 [11.89]	4 Bolt - Square	n/a
193-0119-001	M22187AH16AD02000100000ABAAAAA	305	306.6 [18.71]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0117-001	M22096AH16AD02000100000ABAAAAA	160	158.1 [9.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
193-0116-001	M22080AF01AA0100010000000AAAAA	130	130.6 [7.97]	2 Bolt - B	Woodruff key, 1/4 x 1 inch
193-0115-001	M22062AF01AA0100010000000AAAAA	100	101.6 [6.20]	2 Bolt - B	Woodruff key, 1/4 x 1 inch
193-0113-001	M22240AJ04AA0100010000000AAAAA	395	393.8 [24.03]	4 Bolt - Magneto	n/a
193-0107-001	M22062AF08AA0100010000000AAAAA	100	101.6 [6.20]	2 Bolt - B	n/a
193-0106-001	M22049AF08AA0100010000000AAAAA	80	80.6 [4.92]	2 Bolt - B	n/a
193-0105-001	M22080AJ05AA0100010000000AAAAA	130	130.6 [7.97]	4 Bolt - Magneto	n/a

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Two-speed motor
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Dust seal	Standard
