Danfoss 193-0283-001

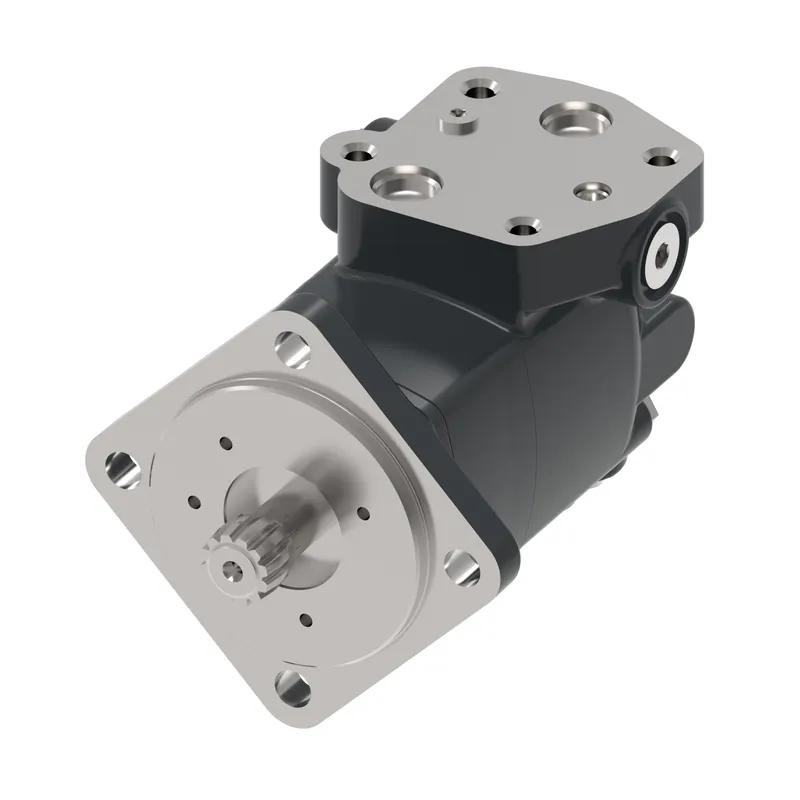

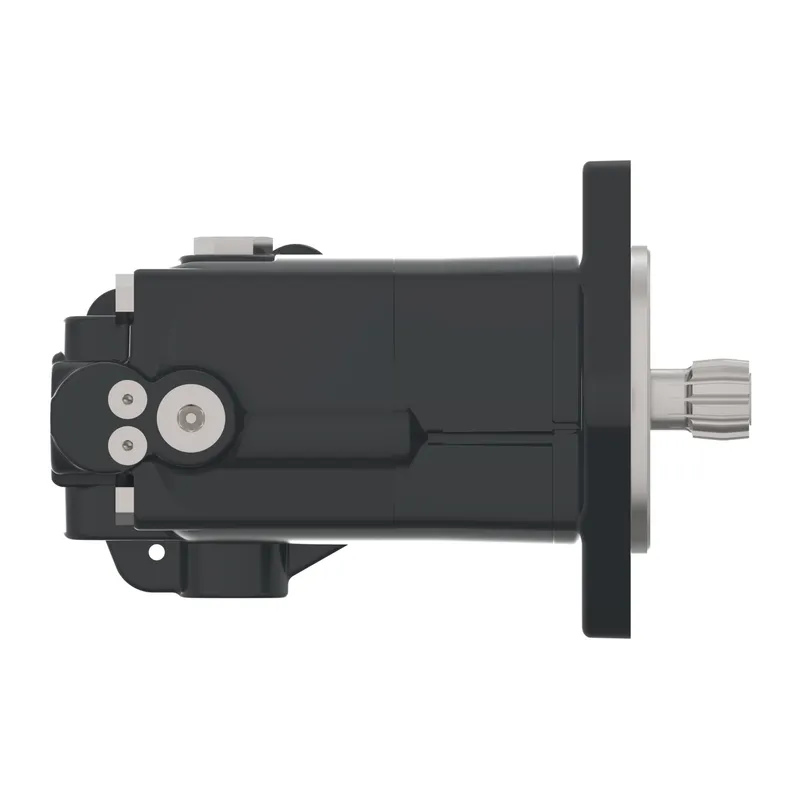

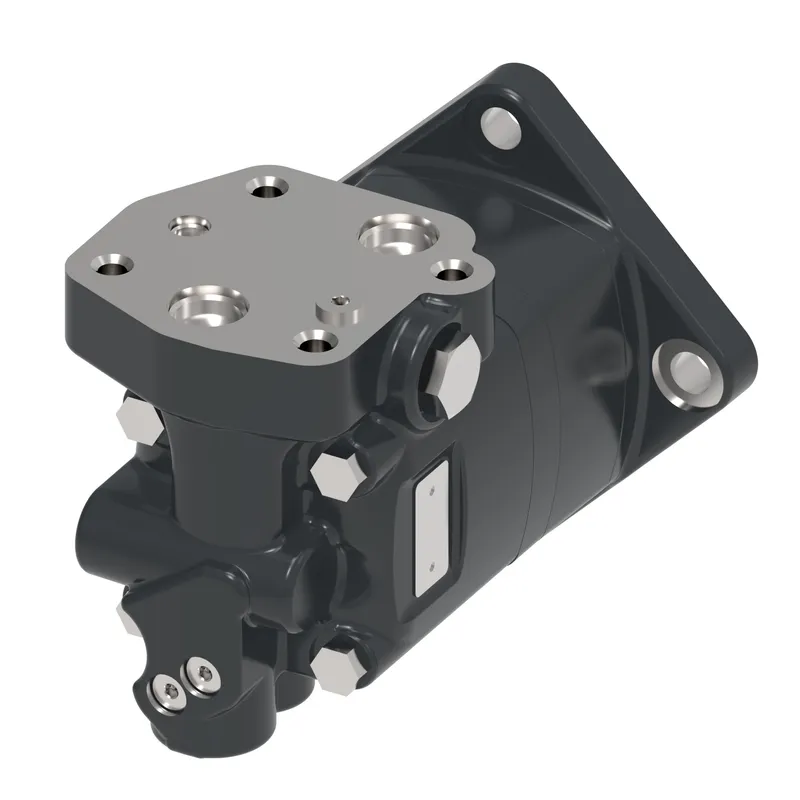

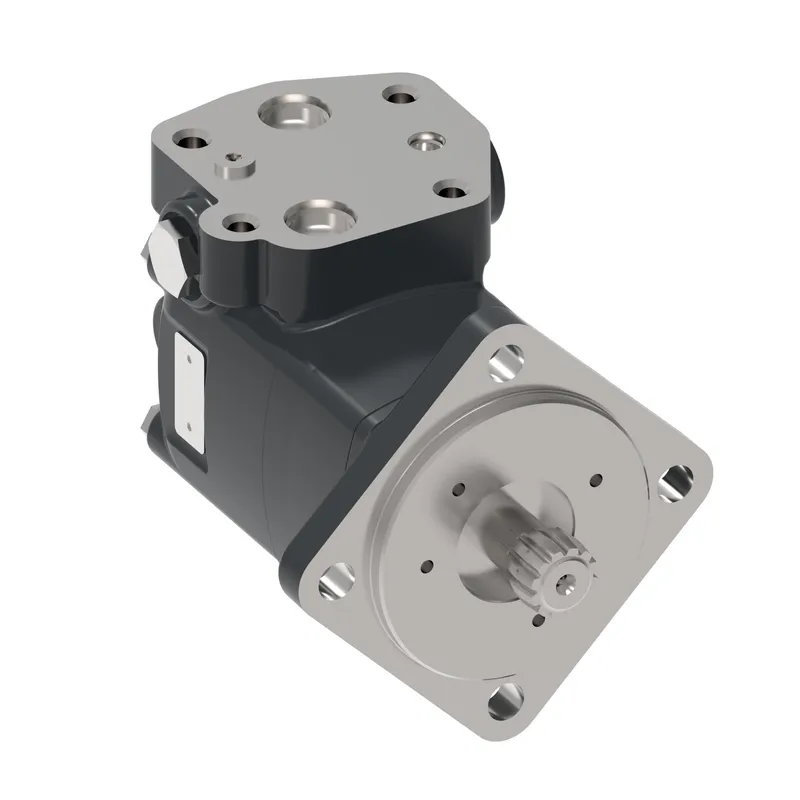

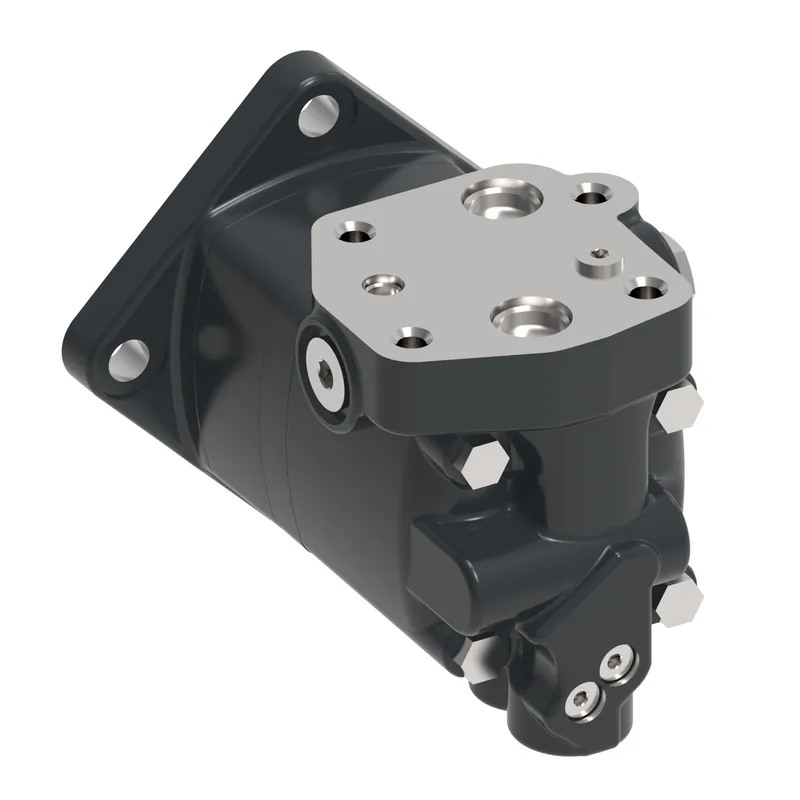

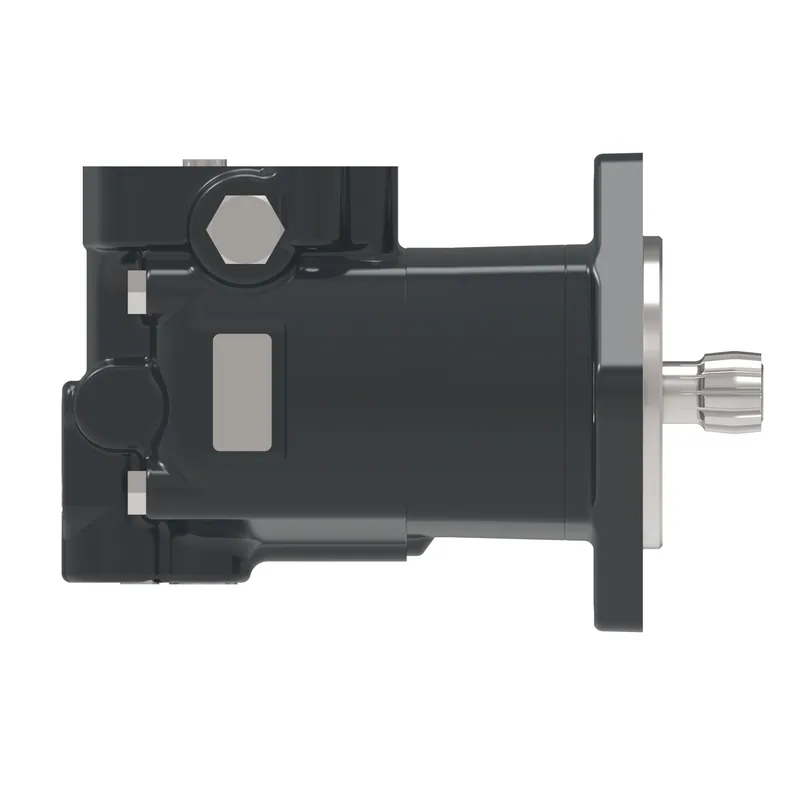

MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AE00AA0100010000000AAAAA

MPN: 193-0283-001
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 193-0283-001?

Danfoss MOTOR-ORBITAL,2000 2SP SERIES 100 [6.2], M22062AE00AA0100010000000AAAAA, manufacturer part number 193-0283-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M22062AE00AA0100010000000AAAAA
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	100
Geometric displacement [cm3/r [in3/r]]	101.6 [6.20]
Motor type	Short
Motor function	Two-speed motor
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	101.6 x 6.4, 127.0, 13.6 [4.00 x 0.25, 5.00, 0.54]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	9/16 - 18 UNF-2B SAE O-Ring port, 7/16 - 20 UNF-2B SAE O-Ring pilot control port, Optional 7/16 - 20 UNF-2B SAE O-ring drain port for pilot operated normally low speed
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	No data available
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	01
Brand	Danfoss
Sub brand	Char-Lynn
