Danfoss orbital motor quick selector Parts

Danfoss

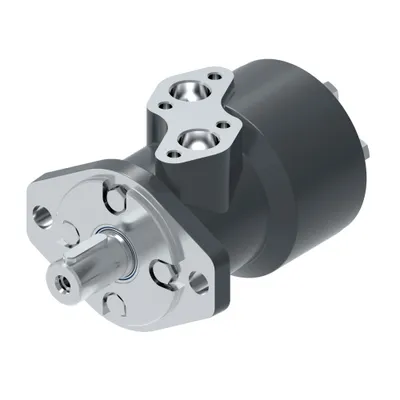

016-0125-002

MOTOR-ORBITAL,XLH SERIES 63 [3.8], MCH063AA01AA110000A000C00B

Danfoss

016-0124-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA01AA110000A000C00B

Danfoss

016-0121-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA01AA110020A000C00B

Danfoss

016-0120-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA01AA110020A000C00B

Danfoss

016-0119-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA01AA110020A000C00B

Danfoss

016-0118-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA01AA110020A000C00B

Danfoss

016-0115-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA03AA110000A000C02B

Danfoss

016-0114-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA03AA110000A000C02B

Danfoss

016-0113-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA03AA110000A000C02B

Danfoss

016-0110-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA03AA110000A000C02B

Danfoss

016-0109-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA03AA110000A000C02B

Danfoss

016-0094-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA01AA110020A000B00B

Danfoss

016-0093-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA01AA110020A000B00B

Danfoss

016-0092-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA01AA110020A000B00B

Danfoss

016-0080-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA03AE010000A000C00B

Danfoss

016-0078-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA02AA110000A000C00B

Danfoss

016-0066-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA01AA110000A000C00B

Danfoss

016-0064-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA03AA110000A000B00B

Danfoss

016-0063-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA03AA110000A000B00B

Danfoss

016-0062-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA03AA110000A000B00B

Danfoss

016-0061-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA03AA110000A000B00B

Danfoss

016-0060-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA03AA110000A000B00B

Danfoss

016-0059-002

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA03AA110000A000B00B

Danfoss

016-0058-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA03AA110000A000B00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
016-0125-002	MCH063AA01AA110000A000C00B	65	63.6 [3.88]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0124-002	MCH053AA01AA110000A000C00B	55	53.0 [3.23]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0121-002	MCH160AA01AA110020A000C00B	160	158.0 [9.64]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0120-002	MCH125AA01AA110020A000C00B	120	121.0 [7.38]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0119-002	MCH080AA01AA110020A000C00B	80	78.7 [4.80]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0118-002	MCH053AA01AA110020A000C00B	55	53.0 [3.23]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0115-002	MCH245AA03AA110000A000C02B	240	240.0 [14.64]	Square key, 1/4 x 1 1/4 inch	BSP
016-0114-002	MCH200AA03AA110000A000C02B	200	195.0 [11.90]	Square key, 1/4 x 1 1/4 inch	BSP
016-0113-002	MCH160AA03AA110000A000C02B	160	158.0 [9.64]	Square key, 1/4 x 1 1/4 inch	BSP
016-0110-002	MCH080AA03AA110000A000C02B	80	78.7 [4.80]	Square key, 1/4 x 1 1/4 inch	BSP
016-0109-002	MCH053AA03AA110000A000C02B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	BSP
016-0094-002	MCH200AA01AA110020A000B00B	200	195.0 [11.90]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0093-002	MCH160AA01AA110020A000B00B	160	158.0 [9.64]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0092-002	MCH125AA01AA110020A000B00B	120	121.0 [7.38]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0080-002	MCH053AA03AE010000A000C00B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	UN / UNF
016-0078-002	MCH245AA02AA110000A000C00B	240	240.0 [14.64]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0066-002	MCH245AA01AA110000A000C00B	240	240.0 [14.64]	Rectangular key, A8 x 7 x 32 mm	BSP
016-0064-002	MCH390AA03AA110000A000B00B	390	390.8 [23.85]	Square key, 1/4 x 1 1/4 inch	BSP
016-0063-002	MCH315AA03AA110000A000B00B	315	317.0 [19.34]	Square key, 1/4 x 1 1/4 inch	BSP
016-0062-002	MCH245AA03AA110000A000B00B	240	240.0 [14.64]	Square key, 1/4 x 1 1/4 inch	BSP
016-0061-002	MCH200AA03AA110000A000B00B	200	195.0 [11.90]	Square key, 1/4 x 1 1/4 inch	BSP
016-0060-002	MCH160AA03AA110000A000B00B	160	158.0 [9.64]	Square key, 1/4 x 1 1/4 inch	BSP
016-0059-002	MCH125AA03AA110000A000B00B	120	121.0 [7.38]	Square key, 1/4 x 1 1/4 inch	BSP
016-0058-002	MCH100AA03AA110000A000B00B	100	97.9 [5.97]	Square key, 1/4 x 1 1/4 inch	BSP

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 5.0, 106.4, 13.5 [3.25 x 0.20, 4.19, 0.53]
Shaft type	Straight
