Danfoss orbital motor quick selector Parts

Danfoss

103-1044-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AC0000000000000AA00M

Danfoss

103-1043-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AC0000000000000AA00M

Danfoss

103-1042-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AC0000000000000AA00M

Danfoss

103-1040-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AA0000000000000AA00M

Danfoss

103-1039-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AA0000000000000AA00M

Danfoss

103-1038-012

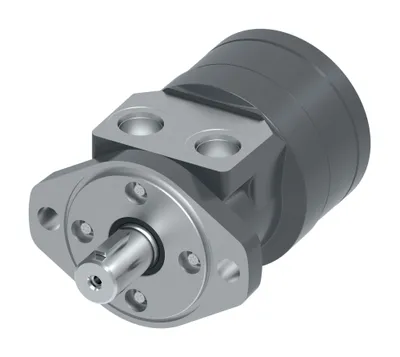

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AA0000000000000AA00M

Danfoss

103-1037-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA01AA0000000000000AA00M

Danfoss

103-1036-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AA0000000000000AA00M

Danfoss

103-1035-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AA0000000000000AA00M

Danfoss

103-1034-012

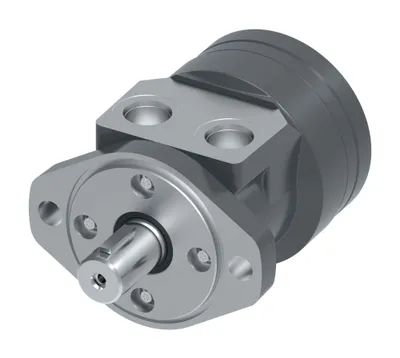

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AA0000000000000AA00M

Danfoss

103-1032-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB0000000000000AA00M

Danfoss

103-1031-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AB0000000000000AA00M

Danfoss

103-1030-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AB0000000000000AA00M

Danfoss

103-1029-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA01AB0000000000000AA00M

Danfoss

103-1028-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AB0000000000000AA00M

Danfoss

103-1027-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AB0000000000000AA00M

Danfoss

103-1026-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AB0000000000000AA00M

Danfoss

103-1024-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AC0000000000000AA00M

Danfoss

103-1023-012

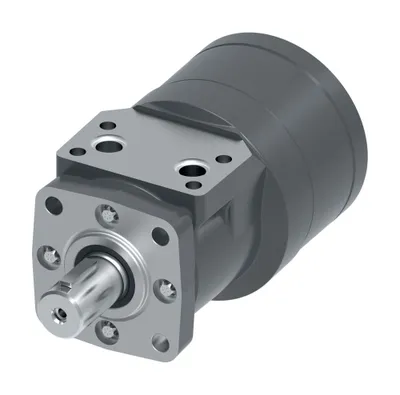

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AC0000000000000AA00M

Danfoss

103-1022-012

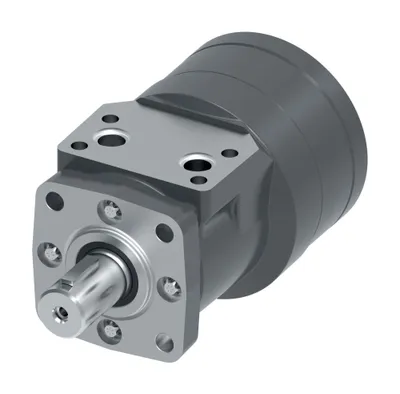

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AC0000000000000AA00M

Danfoss

103-1021-012

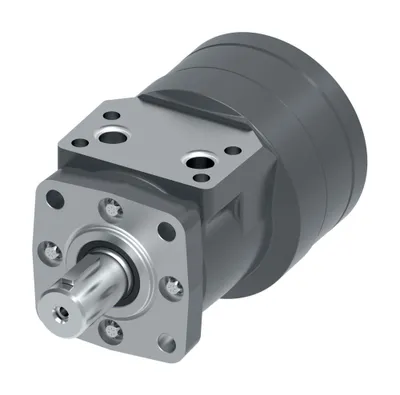

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA01AC0000000000000AA00M

Danfoss

103-1020-012

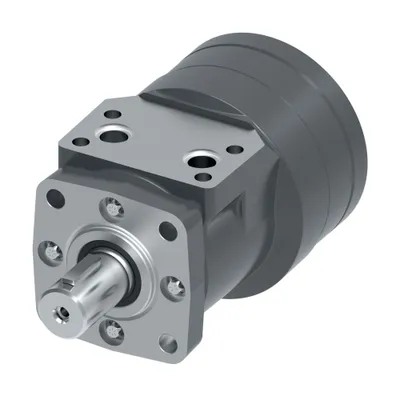

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AC0000000000000AA00M

Danfoss

103-1019-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AC0000000000000AA00M

Danfoss

103-1018-012

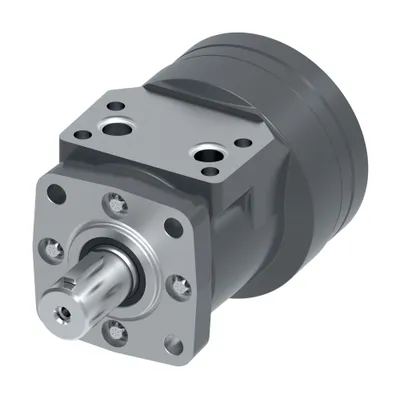

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AC0000000000000AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-1044-012	MS0101AA01AC0000000000000AA00M	165	165 [10.1]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1043-012	MS0057AA01AC0000000000000AA00M	95	93 [5.7 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1042-012	MS0046AA01AC0000000000000AA00M	75	76 [4.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1040-012	MS0227AA01AA0000000000000AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1039-012	MS0182AA01AA0000000000000AA00M	300	299 [18.2]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1038-012	MS0137AA01AA0000000000000AA00M	225	224 [13.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1037-012	MS0114AA01AA0000000000000AA00M	185	186 [11.4]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1036-012	MS0101AA01AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1035-012	MS0057AA01AA0000000000000AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1034-012	MS0046AA01AA0000000000000AA00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1032-012	MS0227AA01AB0000000000000AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-1031-012	MS0182AA01AB0000000000000AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-1030-012	MS0137AA01AB0000000000000AA00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF
103-1029-012	MS0114AA01AB0000000000000AA00M	185	186 [11.4]	NPT / NPTF	1/2 - 14 NPTF
103-1028-012	MS0101AA01AB0000000000000AA00M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-1027-012	MS0057AA01AB0000000000000AA00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-1026-012	MS0046AA01AB0000000000000AA00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1024-012	MS0227BA01AC0000000000000AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1023-012	MS0182BA01AC0000000000000AA00M	300	299 [18.2]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1022-012	MS0137BA01AC0000000000000AA00M	225	224 [13.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1021-012	MS0114BA01AC0000000000000AA00M	185	186 [11.4]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1020-012	MS0101BA01AC0000000000000AA00M	165	165 [10.1]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1019-012	MS0057BA01AC0000000000000AA00M	95	93 [5.7 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1018-012	MS0046BA01AC0000000000000AA00M	75	76 [4.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Shaft type	Straight
Shaft dimension	Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	Woodruff key
