Danfoss orbital motor quick selector Parts

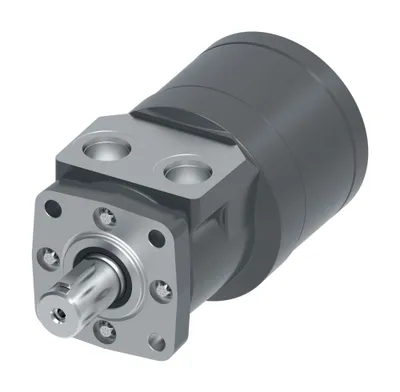

Danfoss

103-1016-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AA0000000000000AA00M

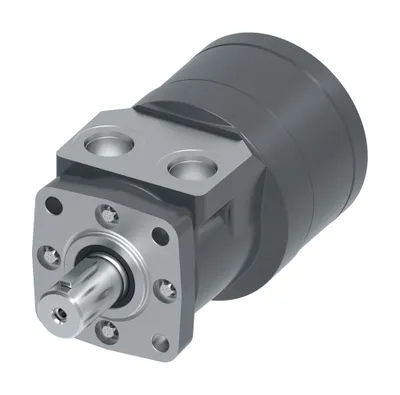

Danfoss

103-1015-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AA0000000000000AA00M

Danfoss

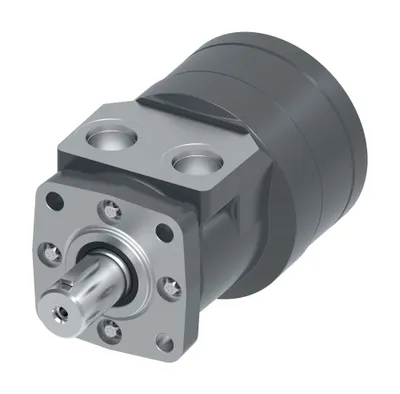

103-1014-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AA0000000000000AA00M

Danfoss

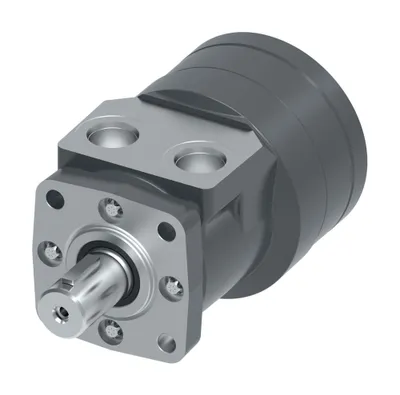

103-1013-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA01AA0000000000000AA00M

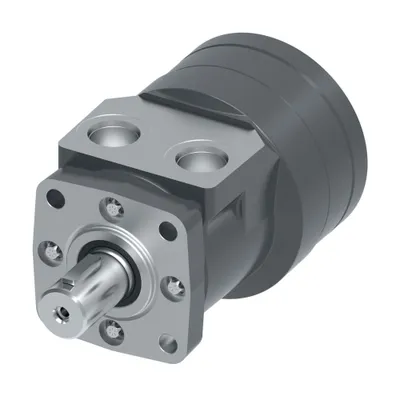

Danfoss

103-1012-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AA0000000000000AA00M

Danfoss

103-1011-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AA0000000000000AA00M

Danfoss

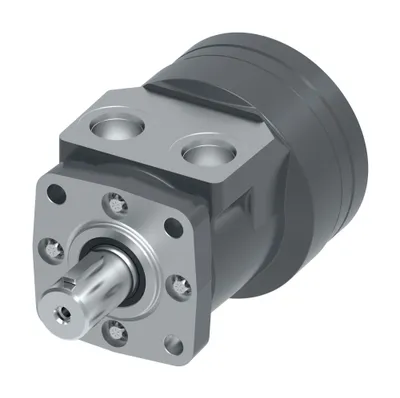

103-1010-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AA0000000000000AA00M

Danfoss

103-1008-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AB0000000000000AA00M

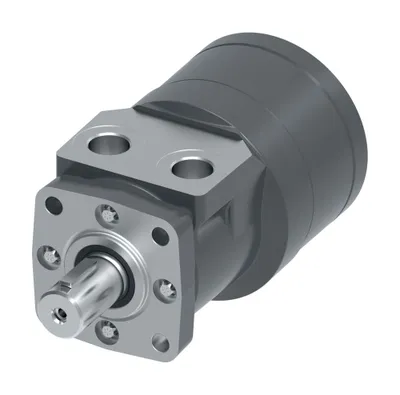

Danfoss

103-1007-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AB0000000000000AA00M

Danfoss

103-1006-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AB0000000000000AA00M

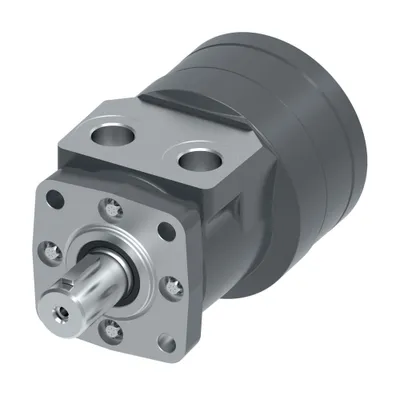

Danfoss

103-1005-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA01AB0000000000000AA00M

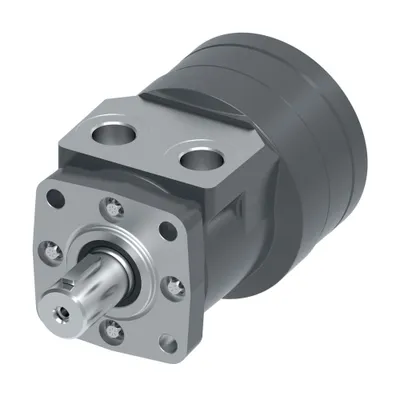

Danfoss

103-1004-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AB0000000000000AA00M

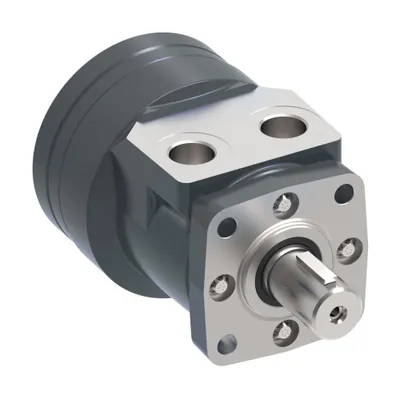

Danfoss

103-1003-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB0000000000000AA00M

Danfoss

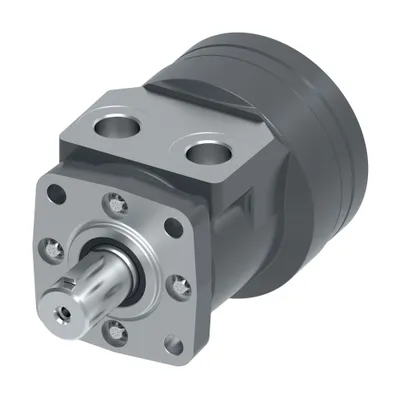

103-1002-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AB0000000000000AA00M

Danfoss

101-4231-009

H MOTOR, MH0022DD02AA00A0000000000AA00J

Danfoss

101-4230-009

H MOTOR, MH0113AA24AA0000000000002AJ00J

Danfoss

101-4228-009

H MOTOR, MH0141AA08AA000000AB000000000J

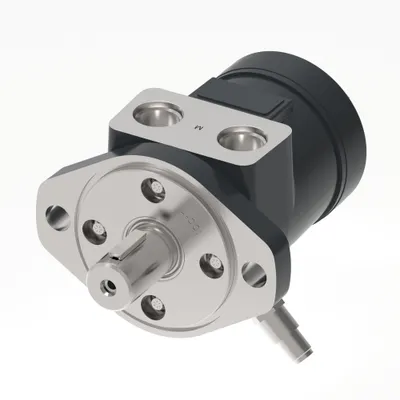

Danfoss

101-4224-009

H MOTOR, MH0059AA02AA000000AE00000AA00J

Danfoss

101-4222-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA24AF02000000000000000J

Danfoss

101-4220-009

H MOTOR, MH0022AA08AA00A0000000001AA00J

Danfoss

101-4219-009

H MOTOR, MH0022AA01AA00A0030000AB0AA00J

Danfoss

101-4218-009

H MOTOR, MH0035AA02AF00A0030000000AA00J

Danfoss

101-4215-009

H MOTOR, MH0097BA01FP00A0000000000AA00J

Danfoss

101-4213-009

H MOTOR, MH0141BA01AA0100000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port dimension
103-1016-012	MS0227BA01AA0000000000000AA00M	370	371 [22.7]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1015-012	MS0182BA01AA0000000000000AA00M	300	299 [18.2]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1014-012	MS0137BA01AA0000000000000AA00M	225	224 [13.7]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1013-012	MS0114BA01AA0000000000000AA00M	185	186 [11.4]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1012-012	MS0101BA01AA0000000000000AA00M	165	165 [10.1]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1011-012	MS0057BA01AA0000000000000AA00M	95	93 [5.7 ]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1010-012	MS0046BA01AA0000000000000AA00M	75	76 [4.6 ]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port
103-1008-012	MS0227BA01AB0000000000000AA00M	370	371 [22.7]	4 Bolt - Square	1/2 - 14 NPTF
103-1007-012	MS0182BA01AB0000000000000AA00M	300	299 [18.2]	4 Bolt - Square	1/2 - 14 NPTF
103-1006-012	MS0137BA01AB0000000000000AA00M	225	224 [13.7]	4 Bolt - Square	1/2 - 14 NPTF
103-1005-012	MS0114BA01AB0000000000000AA00M	185	186 [11.4]	4 Bolt - Square	1/2 - 14 NPTF
103-1004-012	MS0101BA01AB0000000000000AA00M	165	165 [10.1]	4 Bolt - Square	1/2 - 14 NPTF
103-1003-012	MS0057BA01AB0000000000000AA00M	95	93 [5.7 ]	4 Bolt - Square	1/2 - 14 NPTF
103-1002-012	MS0046BA01AB0000000000000AA00M	75	76 [4.6 ]	4 Bolt - Square	1/2 - 14 NPTF
101-4231-009	MH0022DD02AA00A0000000000AA00J	35	36 [2.2]	2 Bolt - B	7/8 - 14 UNF-2B SAE O-Ring port
101-4230-009	MH0113AA24AA0000000000002AJ00J	185	185 [11.3]	2 Bolt - A	7/8 - 14 UNF-2B SAE O-Ring port
101-4228-009	MH0141AA08AA000000AB000000000J	230	231 [14.1]	2 Bolt - A	7/8 - 14 UNF-2B SAE O-Ring port
101-4224-009	MH0059AA02AA000000AE00000AA00J	95	96 [5.9]	2 Bolt - A	7/8 - 14 UNF-2B SAE O-Ring port
101-4222-009	MH0045AA24AF02000000000000000J	75	74 [4.5]	2 Bolt - A	G 1/2
101-4220-009	MH0022AA08AA00A0000000001AA00J	35	36 [2.2]	2 Bolt - A	7/8 - 14 UNF-2B SAE O-Ring port
101-4219-009	MH0022AA01AA00A0030000AB0AA00J	35	36 [2.2]	2 Bolt - A	7/8 - 14 UNF-2B SAE O-Ring port
101-4218-009	MH0035AA02AF00A0030000000AA00J	60	58 [3.5]	2 Bolt - A	G 1/2
101-4215-009	MH0097BA01FP00A0000000000AA00J	160	159 [9.7]	4 Bolt - Square	3/4 - 16 UNF-2B SAE O-Ring port
101-4213-009	MH0141BA01AA0100000000000AA00J	230	231 [14.1]	4 Bolt - Square	7/8 - 14 UNF-2B SAE O-Ring port

Common to all listed parts

Valve system	Spool valve
Motor type	Standard
Brake Release Port Dimension	n/a
Dust seal	Standard
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Check valve function	No
Hydraulic valve function	None
